No. 7 Test, Code 34, 35, Turbo Pressure Signal

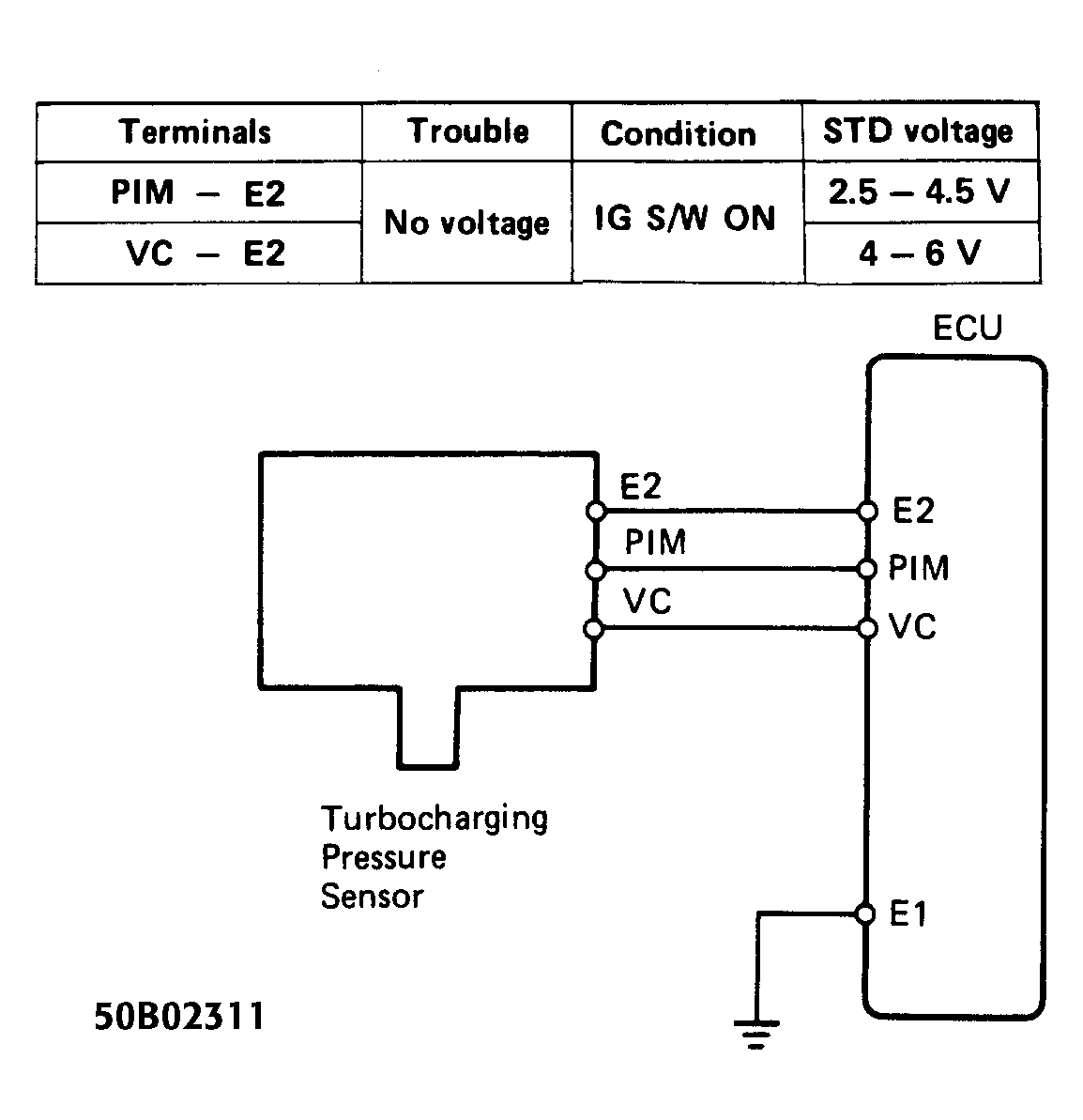

Fig 1: No. 7 Test, Code 34, 35 Schematic, Turbo Pressure Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

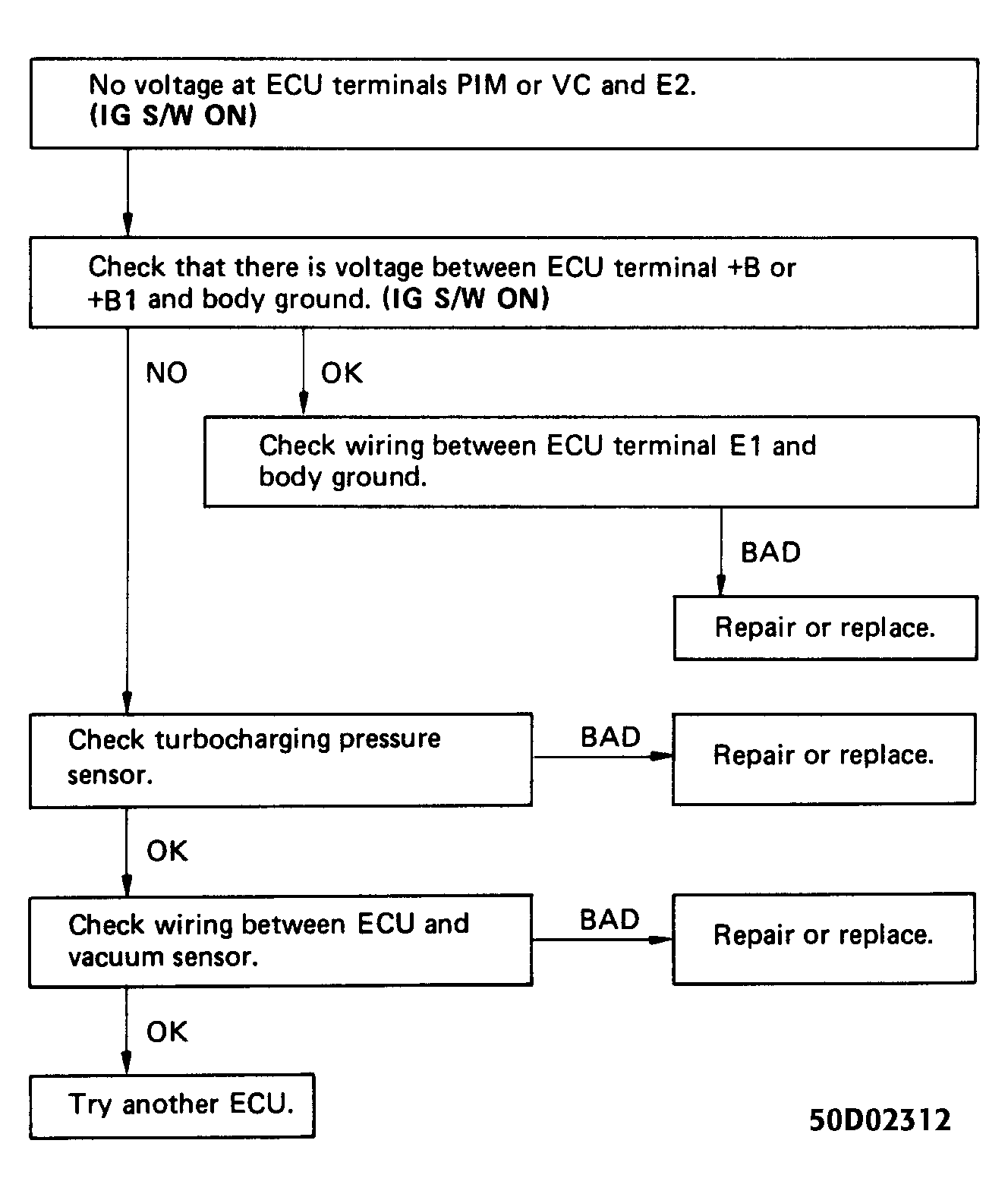

Fig 2: No. 7 Test, Code 34, 35 Flow Chart, Turbo Pressure Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
