Ecu Connector I.D.

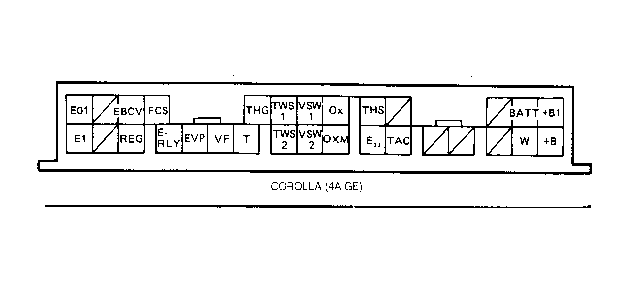

Fig 1: Exc. FX-16 ECU Connector Pin Identification
G95238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

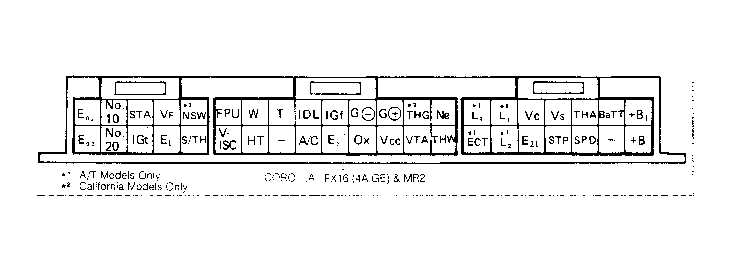

Fig 2: FX-16 ECU Connector Pin Identification
G95239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
