Component Locations

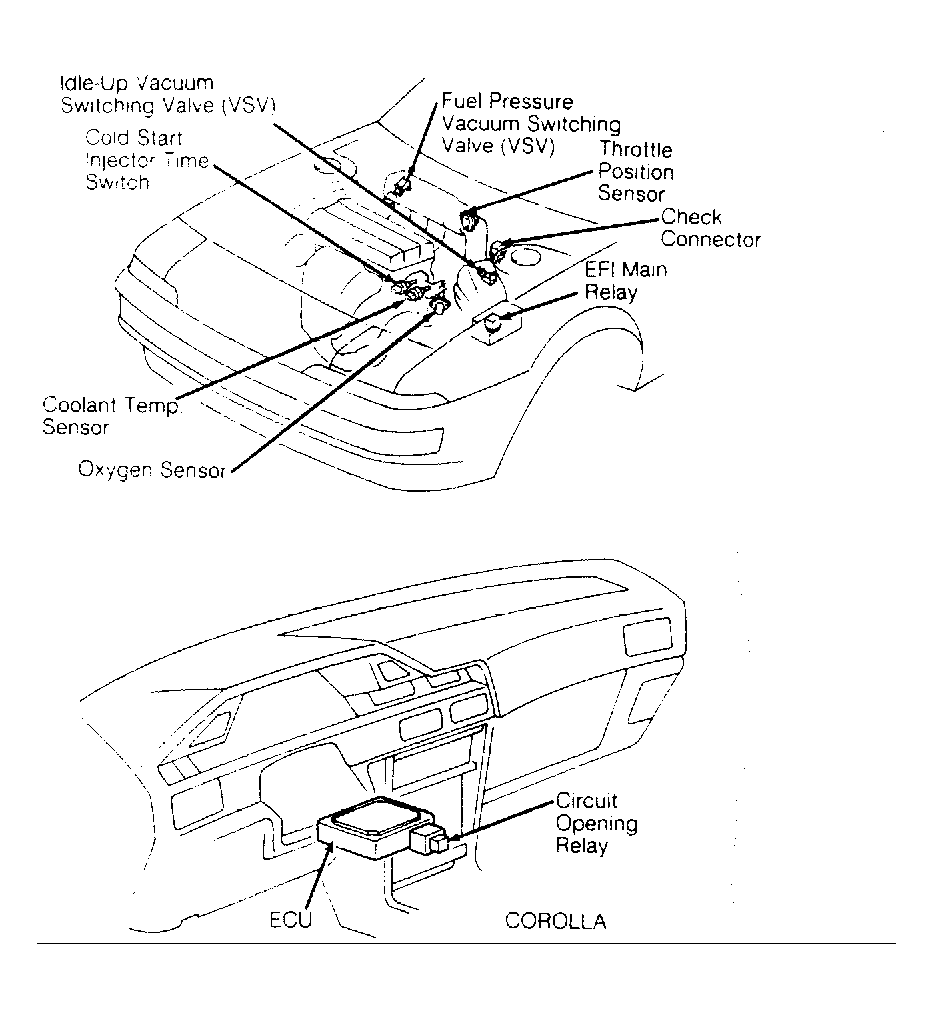

Fig 1: Exc. FX-16 TCCS Component Locations
G95196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

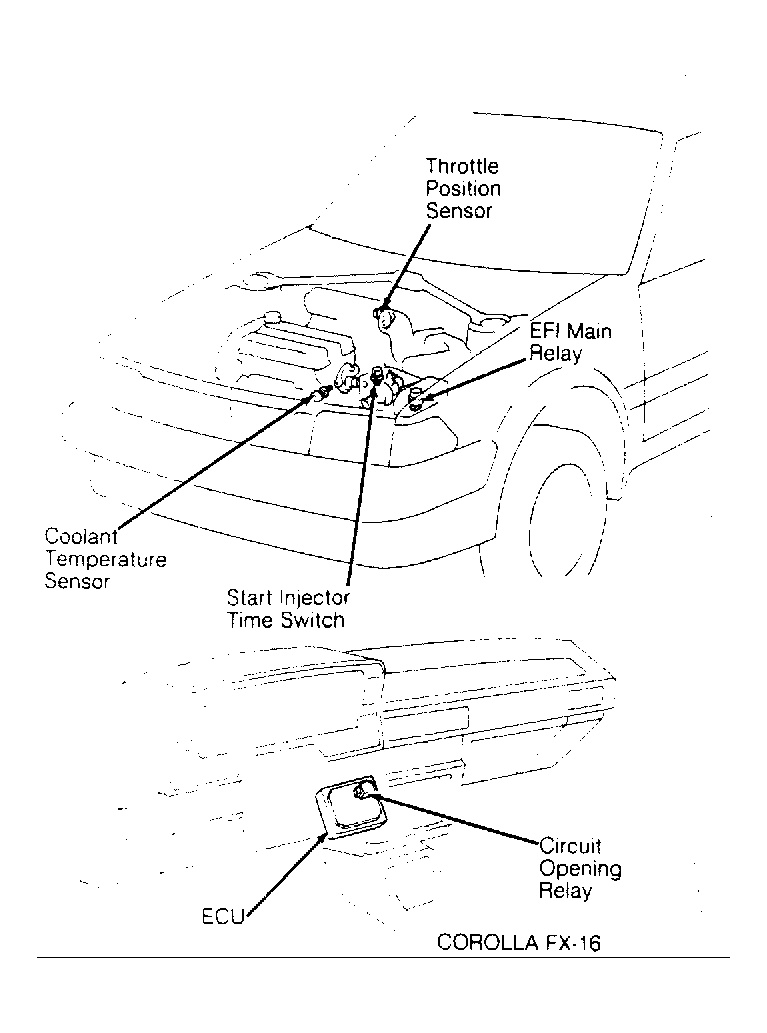

Fig 2: FX-16 TCCS Component Locations
G95197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

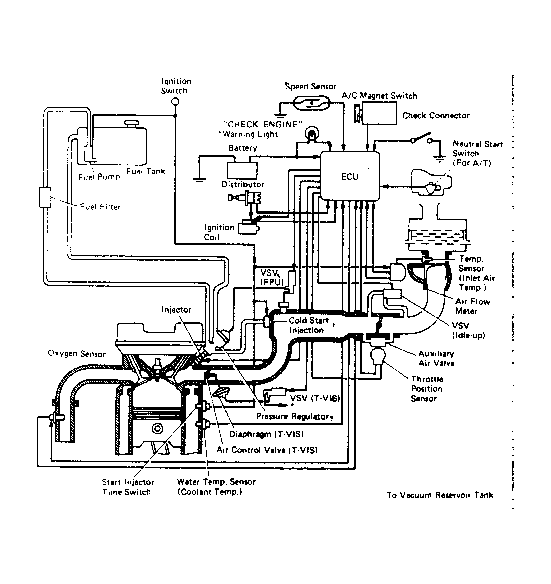

Fig 3: Computer Control System
G95212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
