Corolla FX16, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Computer Control System
>>
Wiring Diagrams
Wiring Diagrams

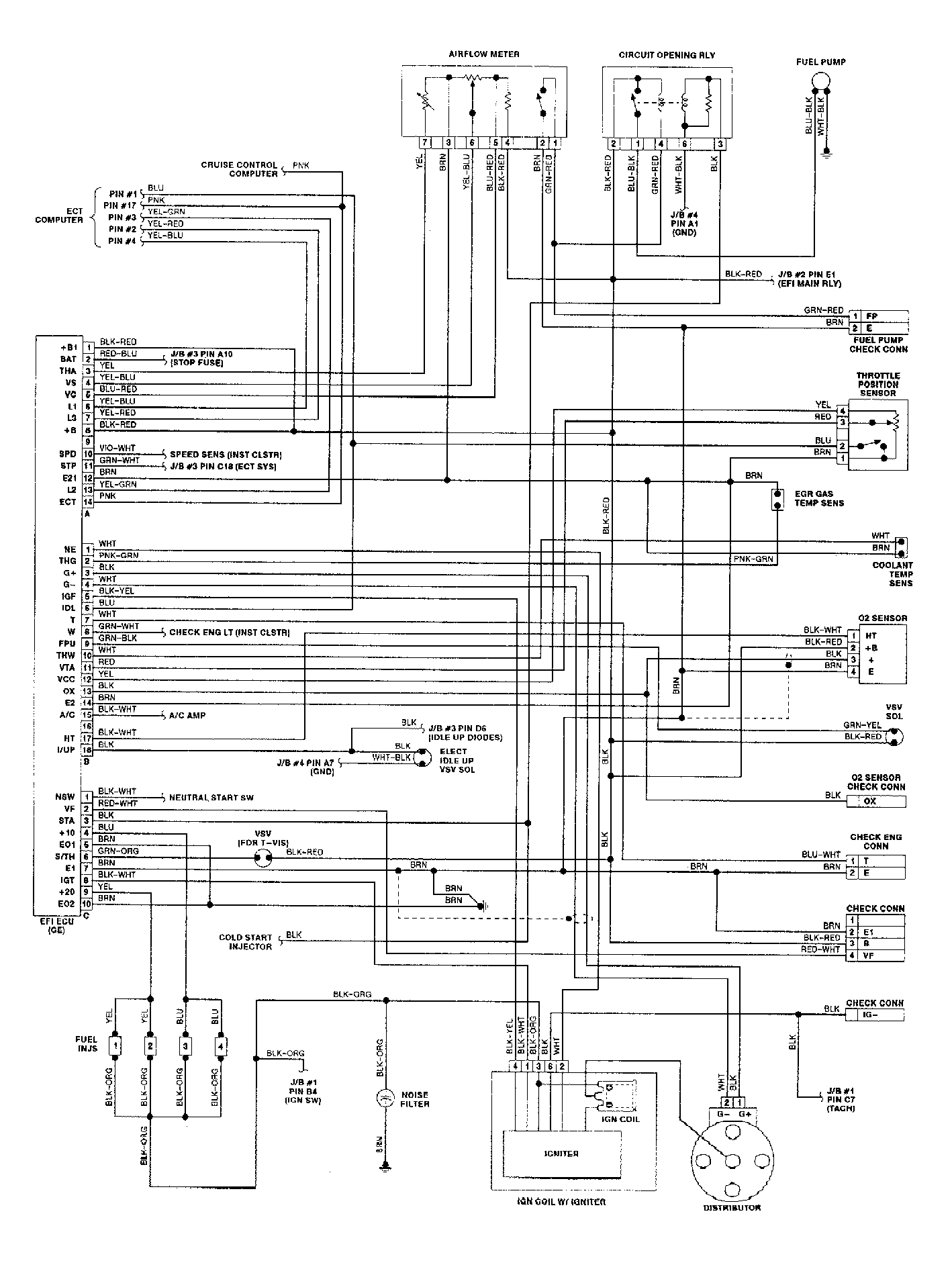

Fig 1: Exc. FX-16 Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

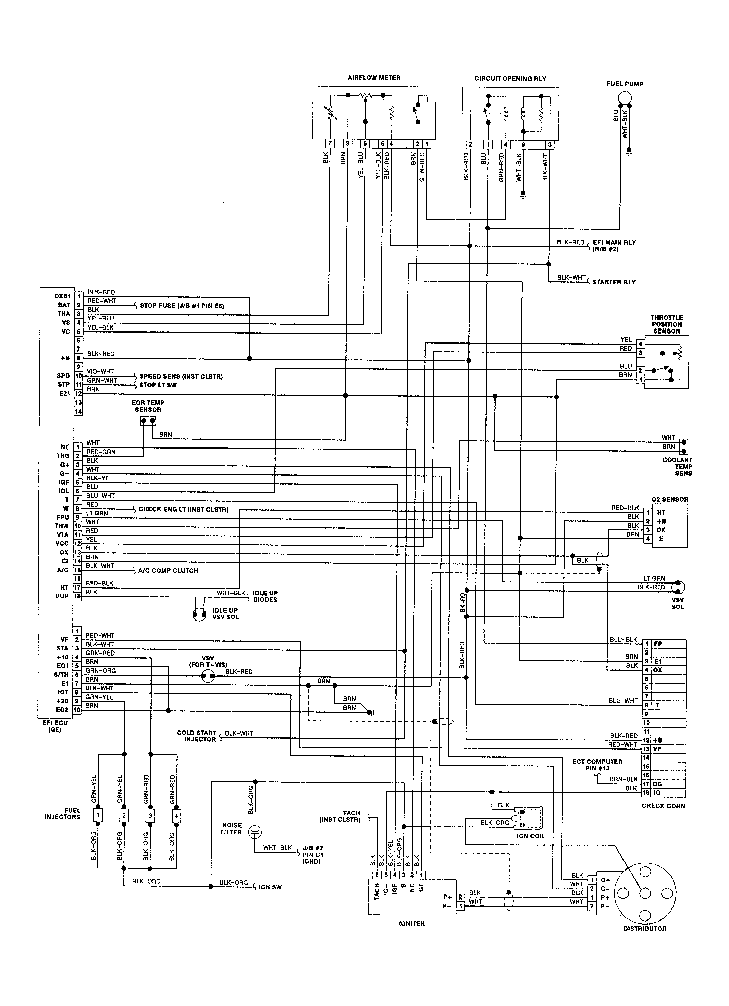

Fig 2: FX-16 Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
