Cold Start Injector Time Switch

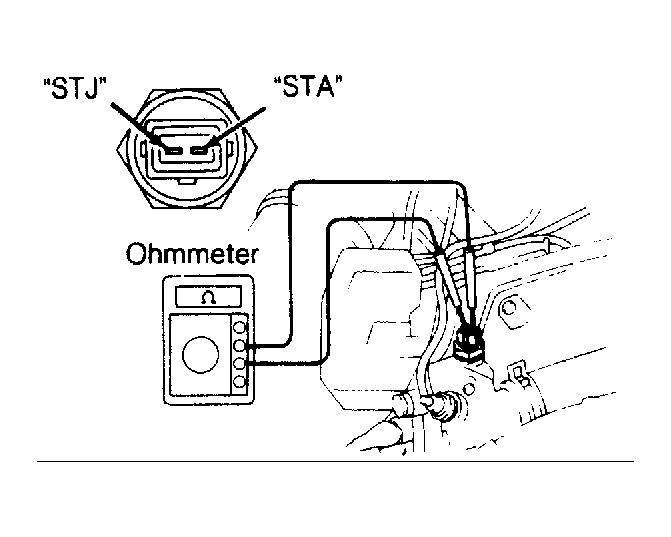

Disconnect switch connector. Note terminal identification. See Fig 1. Using ohmmeter, check resistance between terminals "STA" & "STJ" at appropriate temperature. See COLD START INJECTOR TIME SWITCH SPECIFICATIONS table. Check resistance between terminal "STA" and ground. Replace switch if not within specification.
COLD START INJECTOR TIME SWITCH SPECIFICATIONS
| Ohms | Condition |
|---|---|
| 20-40 | Below 86°F (30°C) |
| 40-60 | Above 104°F (40°C) |
| 20-80 | To Ground |
