Neutral/Start Switch

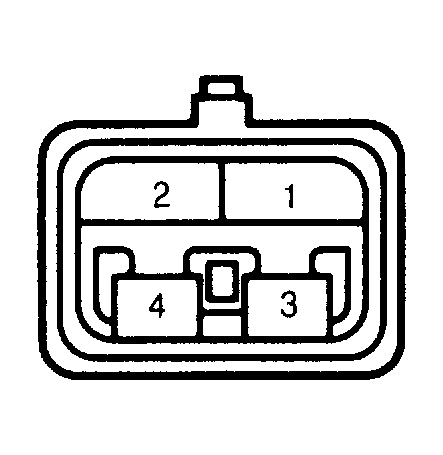

Disconnect switch connector. Note terminal identification. See Fig 1 and Fig 2 . Using ohmmeter, check for continuity at specified terminals with gearshift in proper range. See NEUTRAL/START SWITCH SPECIFICATIONS table.
NEUTRAL/START SWITCH SPECIFICATIONS
| Gearshift Position | Terminals | |
|---|---|---|
| Corolla & Corolla FX-16 | ||
| "P" | 3 & 4 | |
| "R" | 1 & 2 | |
| "N" | 3 & 4 | |
| Corolla FX-16 | ||
| "N" | N & C | |
| "2" | 2 & C | |
| "L" | L & C | |
