4WD Air Temp Sensor Test

Ensure ignition is off. Unplug air temperature sensor. Measure resistance across air temperature sensor terminals at specified temperature. See Fig 1.

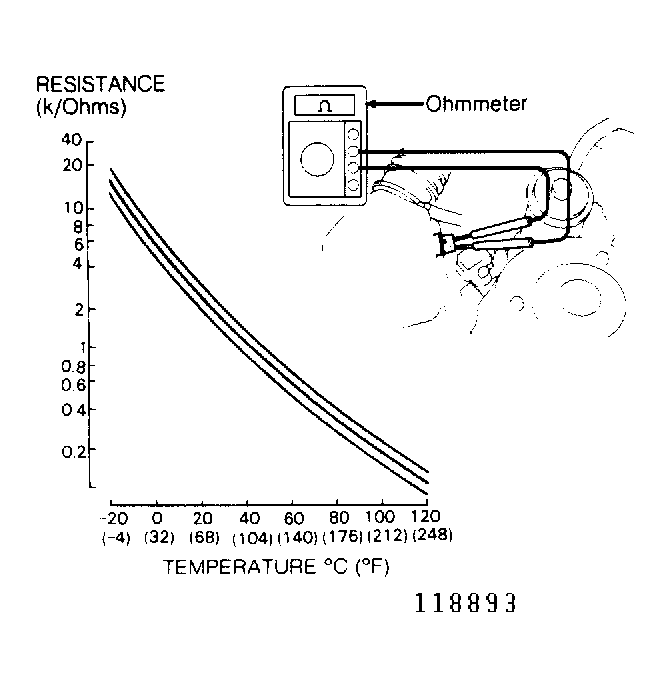

Fig 1: Air Temperature Sensor Specifications Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
