EGR Gas Temp Sensor Test

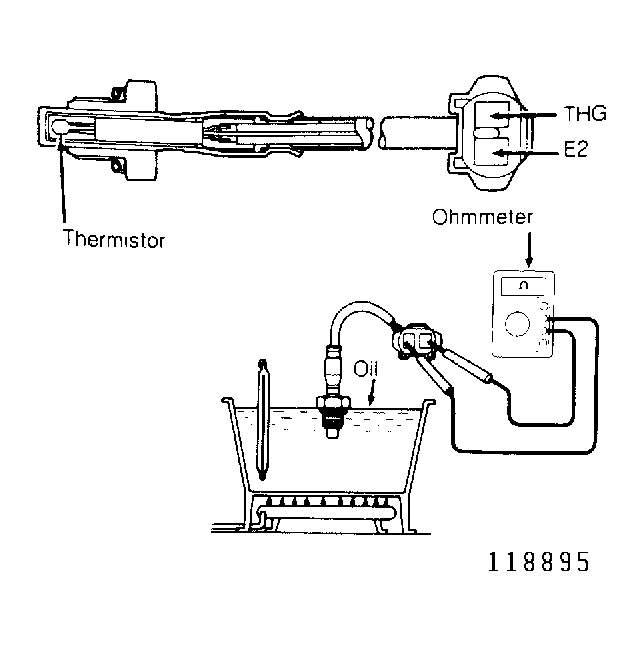

Remove sensor from side of EGR valve. Place threaded end of sensor and thermometer in container of oil. Attach ohmmeter to sensor terminals. Heat the oil and note the resistance at specified temperature. See EGR TEMPERATURE SENSOR SPECIFICATIONS table. Replace sensor if not within specification.
EGR TEMPERATURE SENSOR SPECIFICATIONS
| Temperature: °F (°C) | Ohms |
|---|---|
| 122 (50) | 69-89 |
| 212 (100) | 12-14 |
| 302 (150) | 3-4 |
