Ignition Coil Resistance

  1. Disconnect wiring from ignition coil so ignition coil is isolated from system. Using an ohmmeter, check primary resistance between ignition coil positive (+) and negative (-) terminals. See Fig 1 and Fig 2.
  2. Check secondary resistance between ignition coil positive (+) terminal and high tension terminal (coil wire tower). See Fig 3 and Fig 4. Replace ignition coil if resistance is not within specification. See appropriate IGNITION COIL RESISTANCE  table.
IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)

Application Primary Secondary
Paseo & Tercel .36-.55 9000-15,400

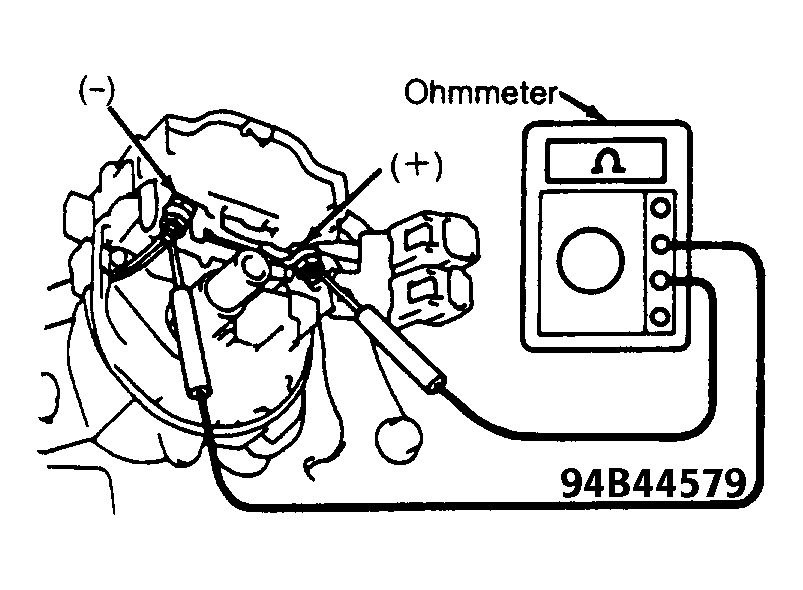

Fig 1: Checking Ignition Coil Primary Resistance (Paseo)
G94B44579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

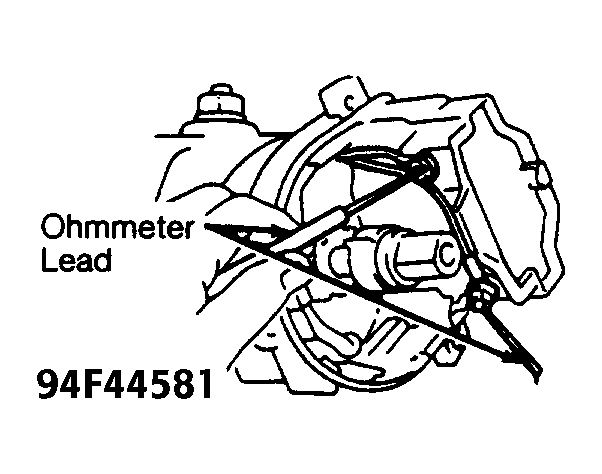

Fig 2: Checking Ignition Coil Primary Resistance (Tercel)
G94F44581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

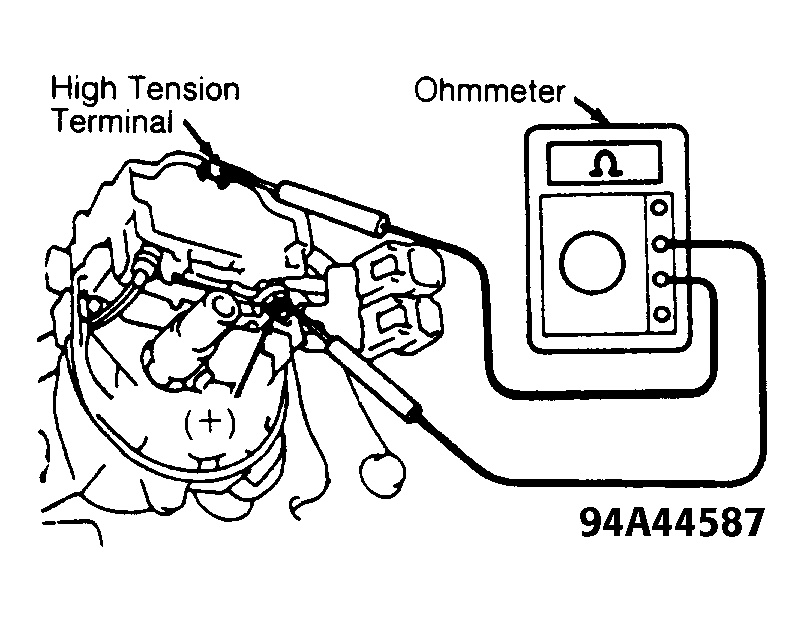

Fig 3: Checking Ignition Coil Secondary Resistance (Paseo)
G94B44587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

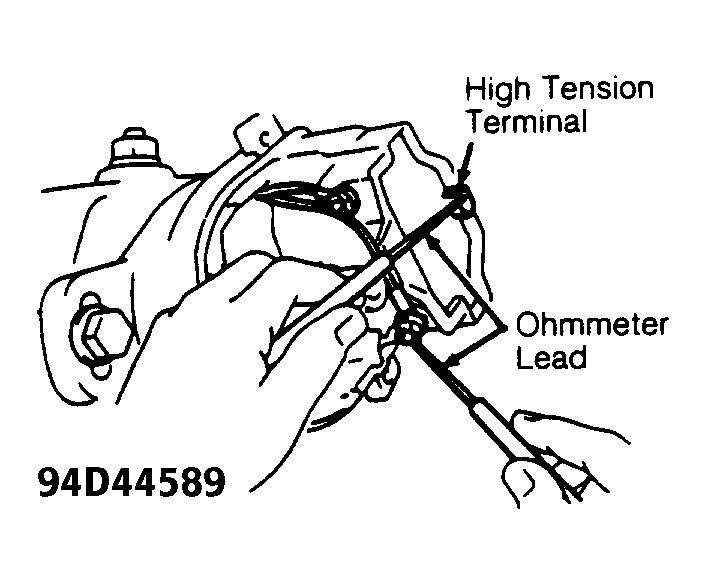

Fig 4: Checking Ignition Coil Secondary Resistance (Tercel)
G94D44589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
