Camshaft Position Sensor

Disconnect electrical connector for camshaft position sensor. Electrical connector is located near upper radiator hose. See Fig 1. Camshaft position sensor is located behind upper timing belt cover, near passenger's side camshaft sprocket.
Using ohmmeter, measure resistance between electrical terminals on electrical connector for camshaft position sensor. See Fig 1.
Replace camshaft position sensor if resistance is not 835-1400 ohms at 14-122°F (-10-50°C) and 1060-1645 ohms at 122-212°F (50-100°C). Reinstall electrical connector for camshaft position sensor.

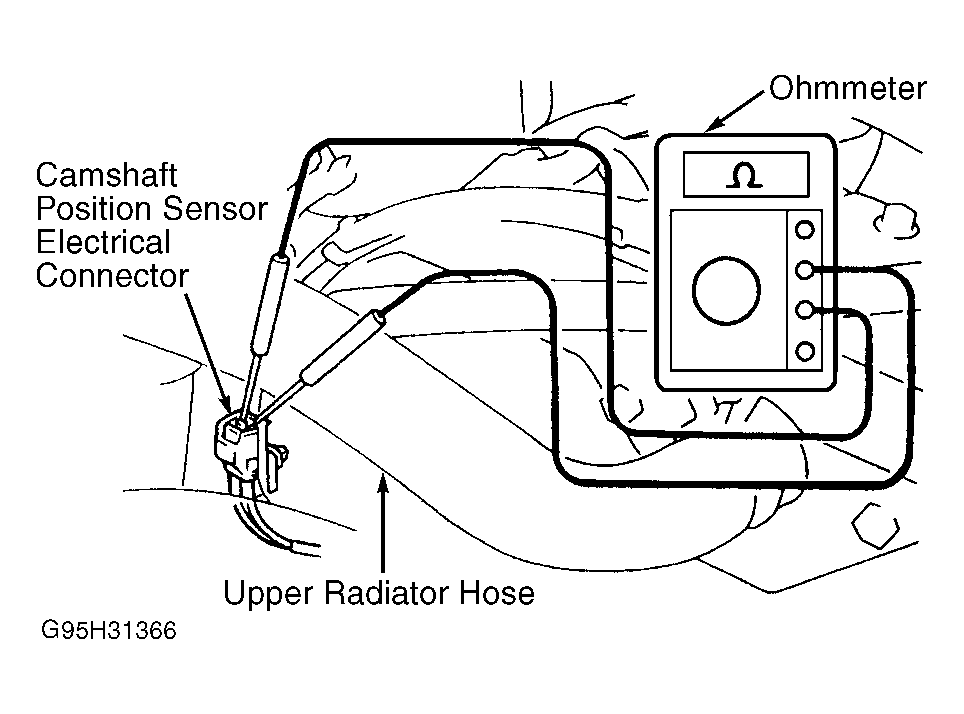

Fig 1: Identifying & Checking Camshaft Position Sensor
