Home >> Toyota >> 2003 >> Land Cruiser >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System >> Power Window Control System Location

Power Window Control System Location

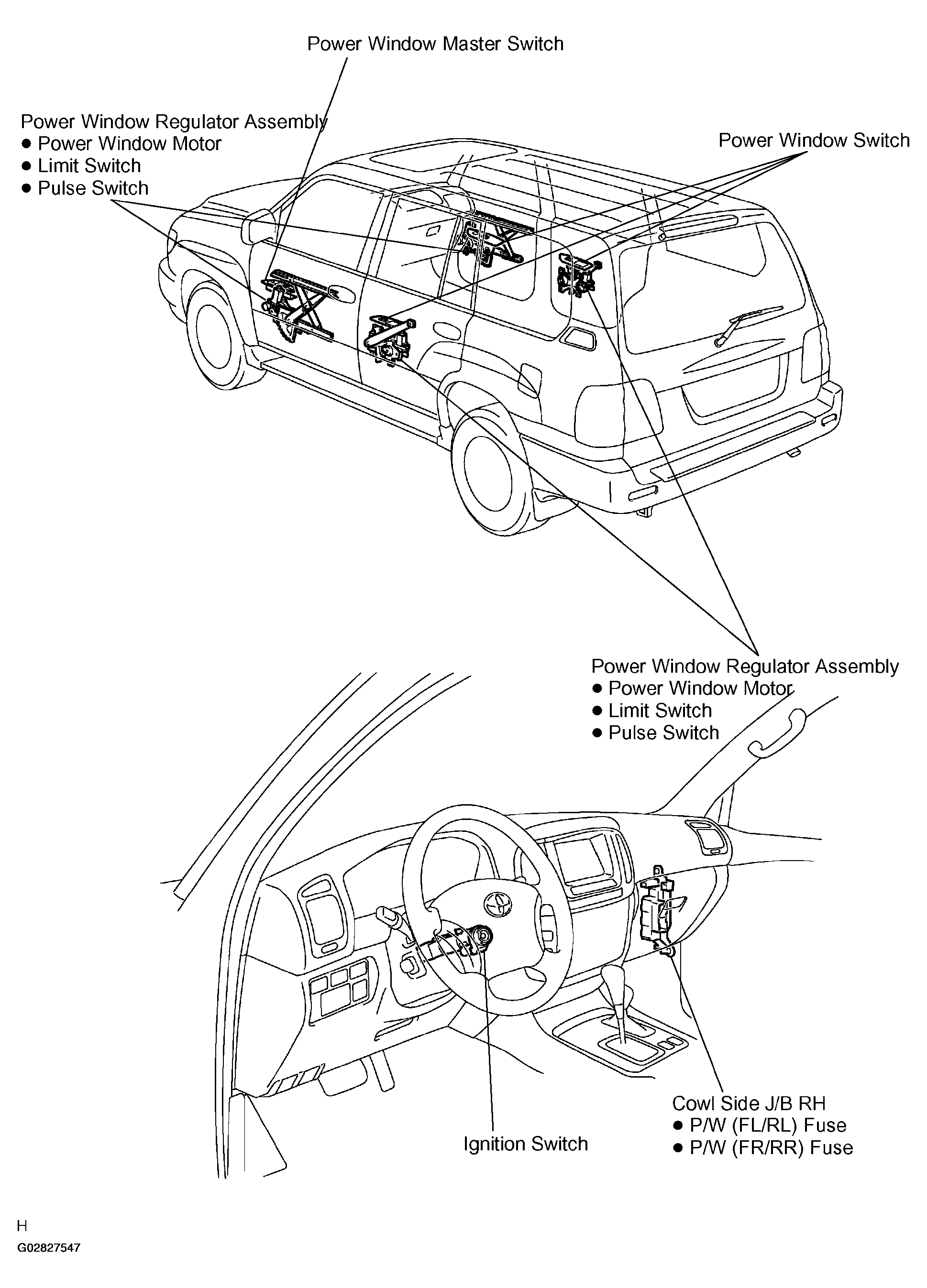

Fig 1: Locating Power Window Control System Components

G02827547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
