Data Link Connector

OBD-II regulations (SAE J-1962) standardizes configuration of Data Link Connector (DLC3). DLC3 is located at driver's side of instrument panel. See Fig 1.

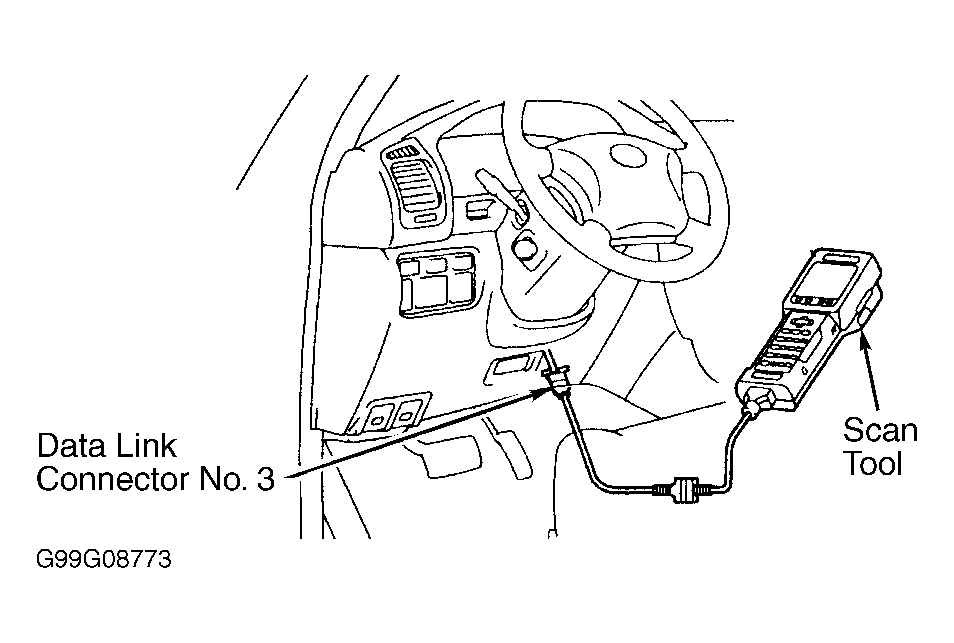

Fig 1: Locating Data Link Connector (DLC3)
G99G08773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
