Service Starter Kit

  1. Push in the plunger and check that it returns quickly to its original position. See Fig 1. If performance is not as specified, replace the repair service starter kit.
  2. Using an ohmmeter, check that there is continuity between terminals 50 and "C". See Fig 1. If there is no continuity, replace the repair service starter kit.
  3. Using an ohmmeter, check. that there is continuity between terminal 50 and the switch body. See Fig 1. If there is no continuity; replace the repair service starter kit.

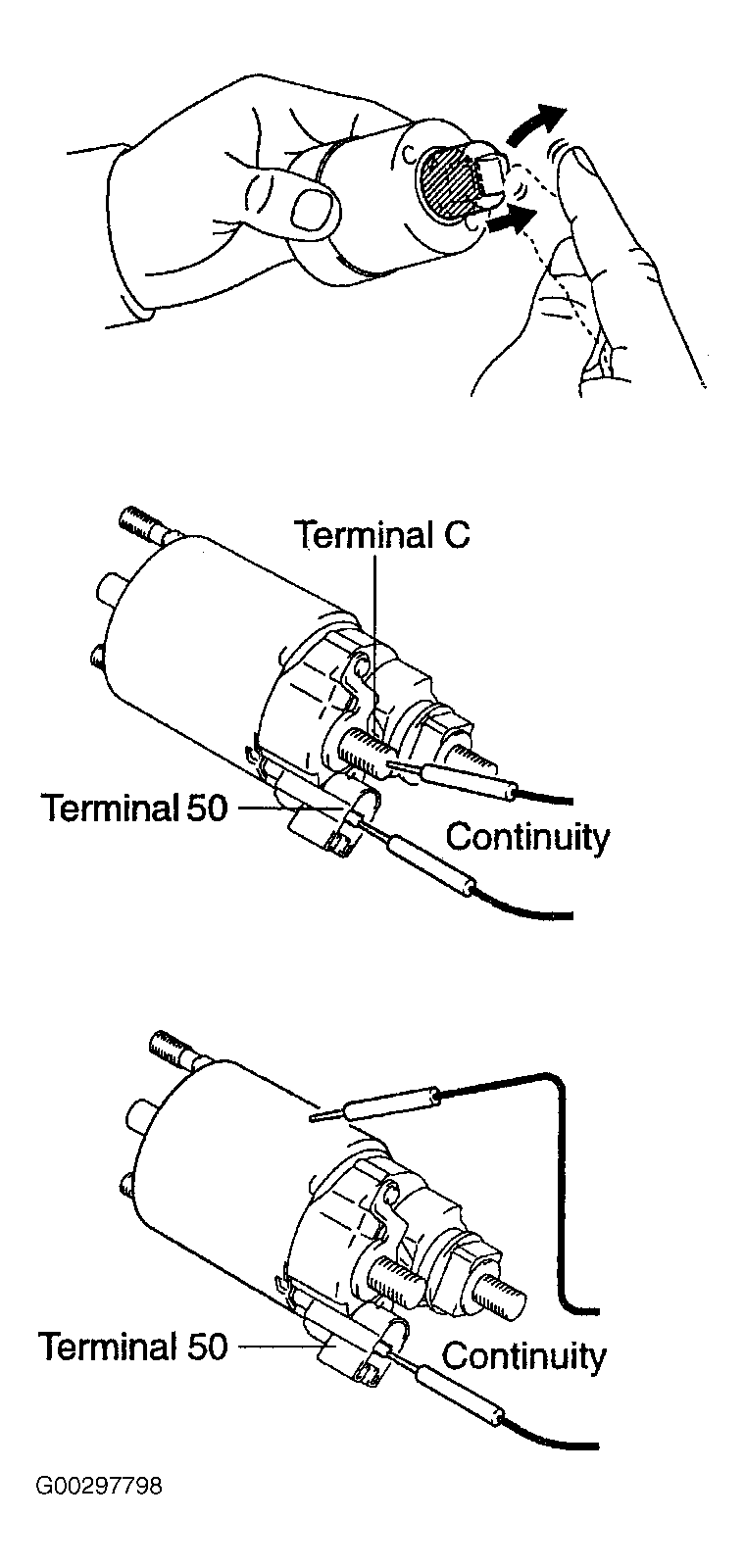

Fig 1: Testing Repair Starter Service Kit
G00297798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
