Ignition Or Starter Switch Assembly: Inspection

INSPECT IGNITION OR STARTER SWITCH ASSY
1. Inspect the ignition switch continuity.

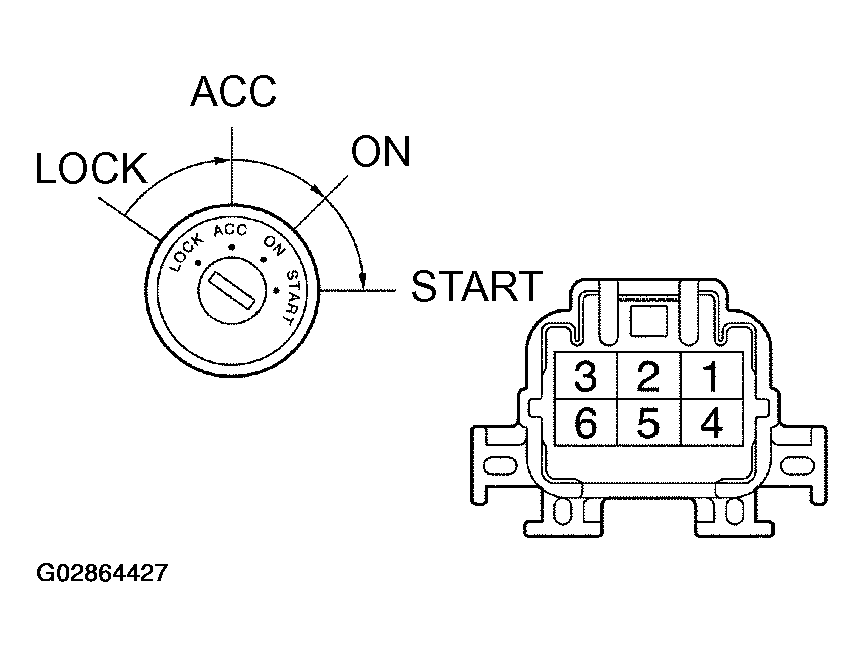

  Fig 1: Identifying Ignition Switch Position & Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

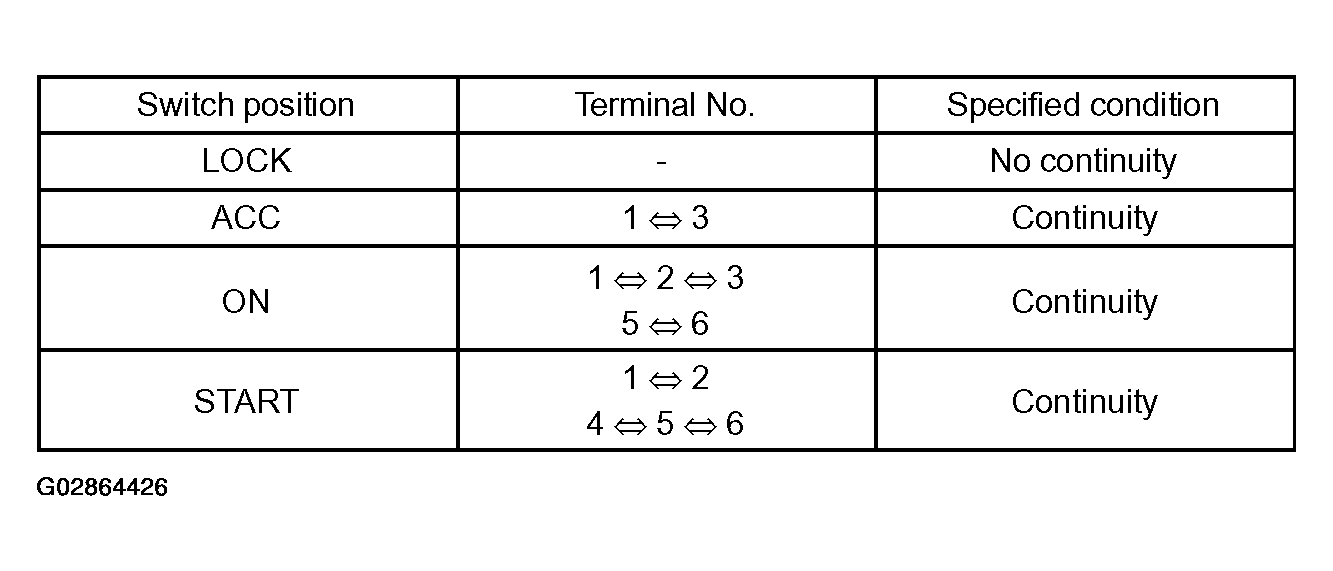

  Fig 2: Ignition Switch Terminal Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the switch.
