Vehicle Identification And Engine Serial Number

  1. VEHICLE IDENTIFICATION NUMBER

    The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown in the illustration.

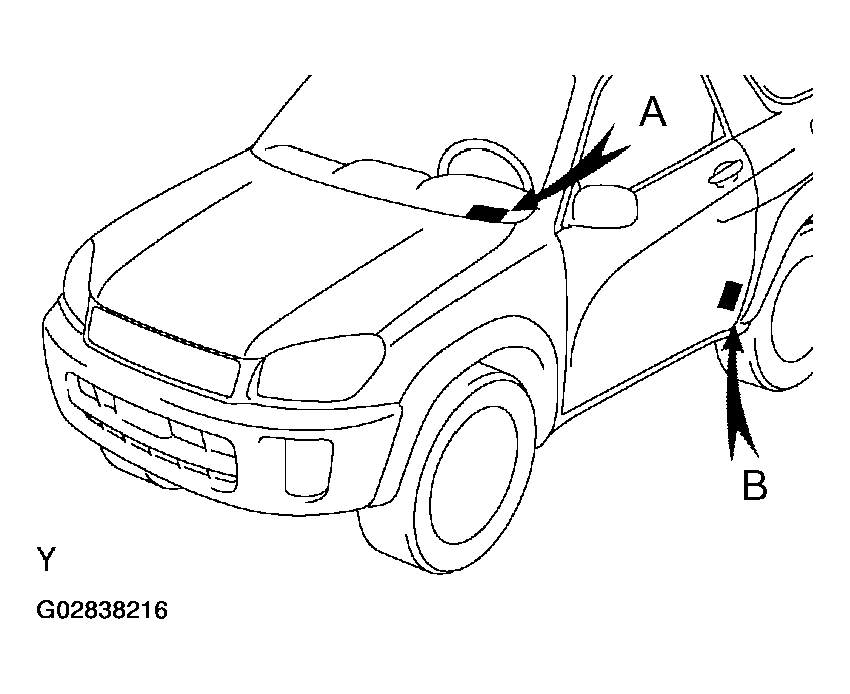

    Fig 1: Locating Vehicle Identification Number
    G02838216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. A: Vehicle Identification Number Plate
    2. B: Certification Label
  2. ENGINE SERIAL NUMBER

    The engine serial number is stamped on the engine block, as shown in the illustration.

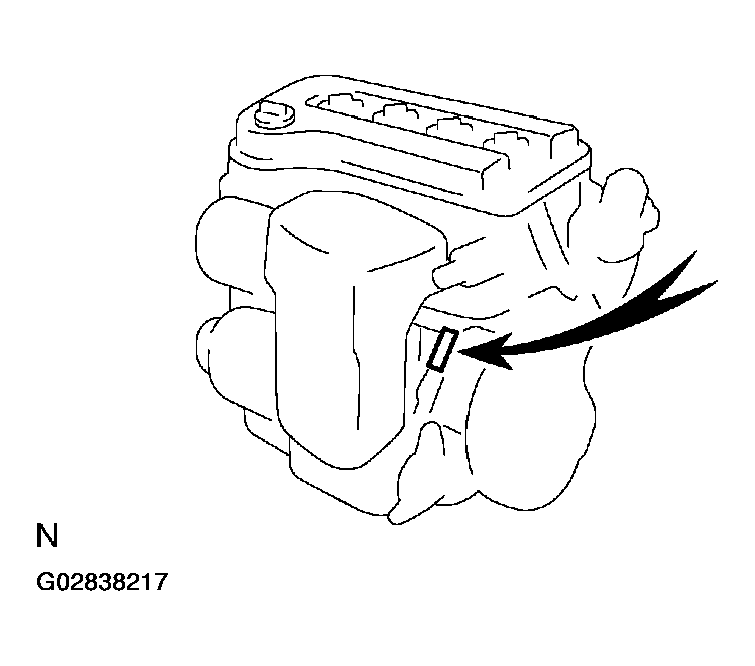

    Fig 2: Locating Engine Serial Number
    G02838217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
