Home >> Toyota >> 2003 >> RAV4 EV >> Repair and Diagnosis >> General Information >> Identification >> Introduction >> Repair Instructions >> Vehicle Lift And Support Locations

Vehicle Lift And Support Locations

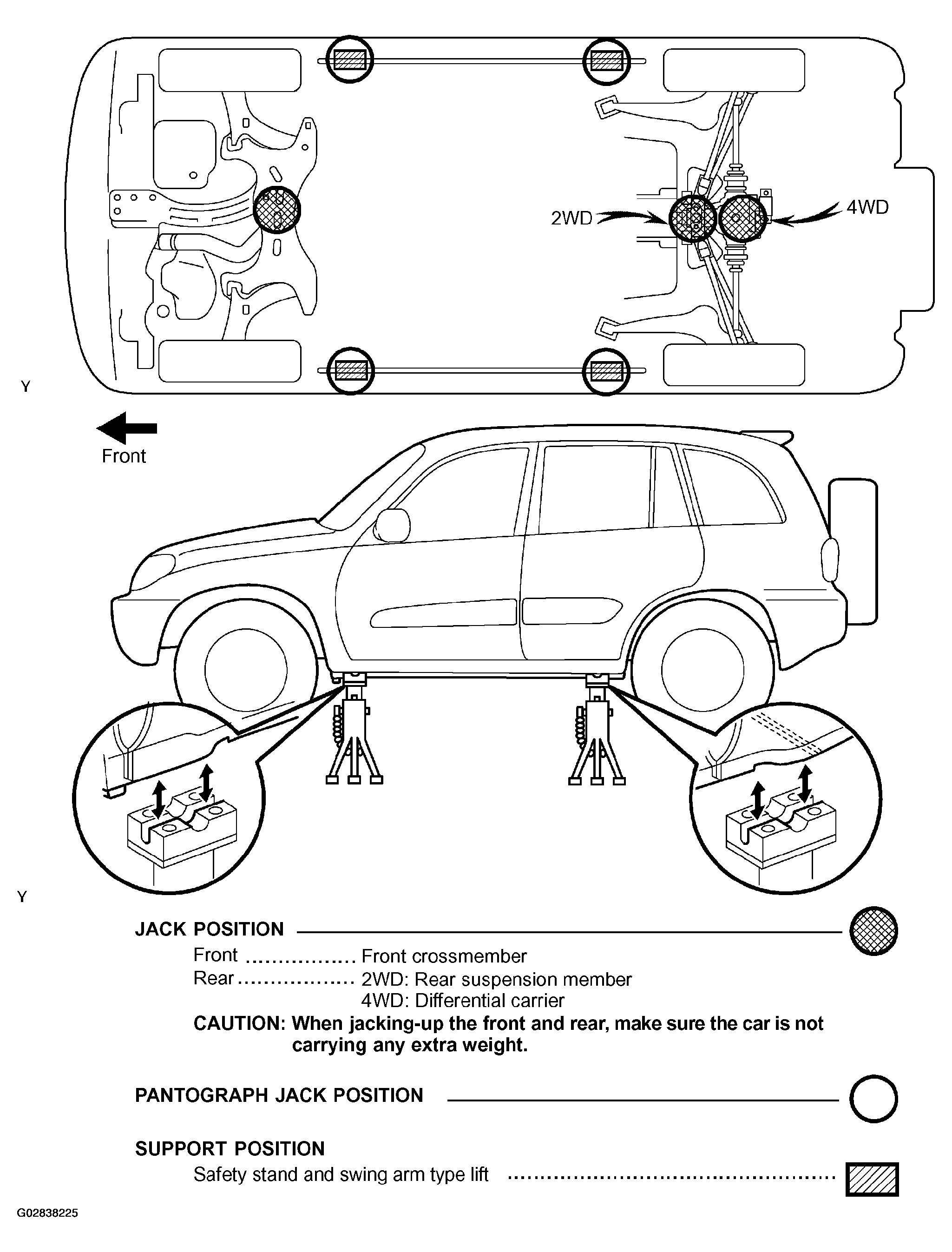

Fig 1: View Of Vehicle Lift & Support Locations (1 Of 2)
G02838225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

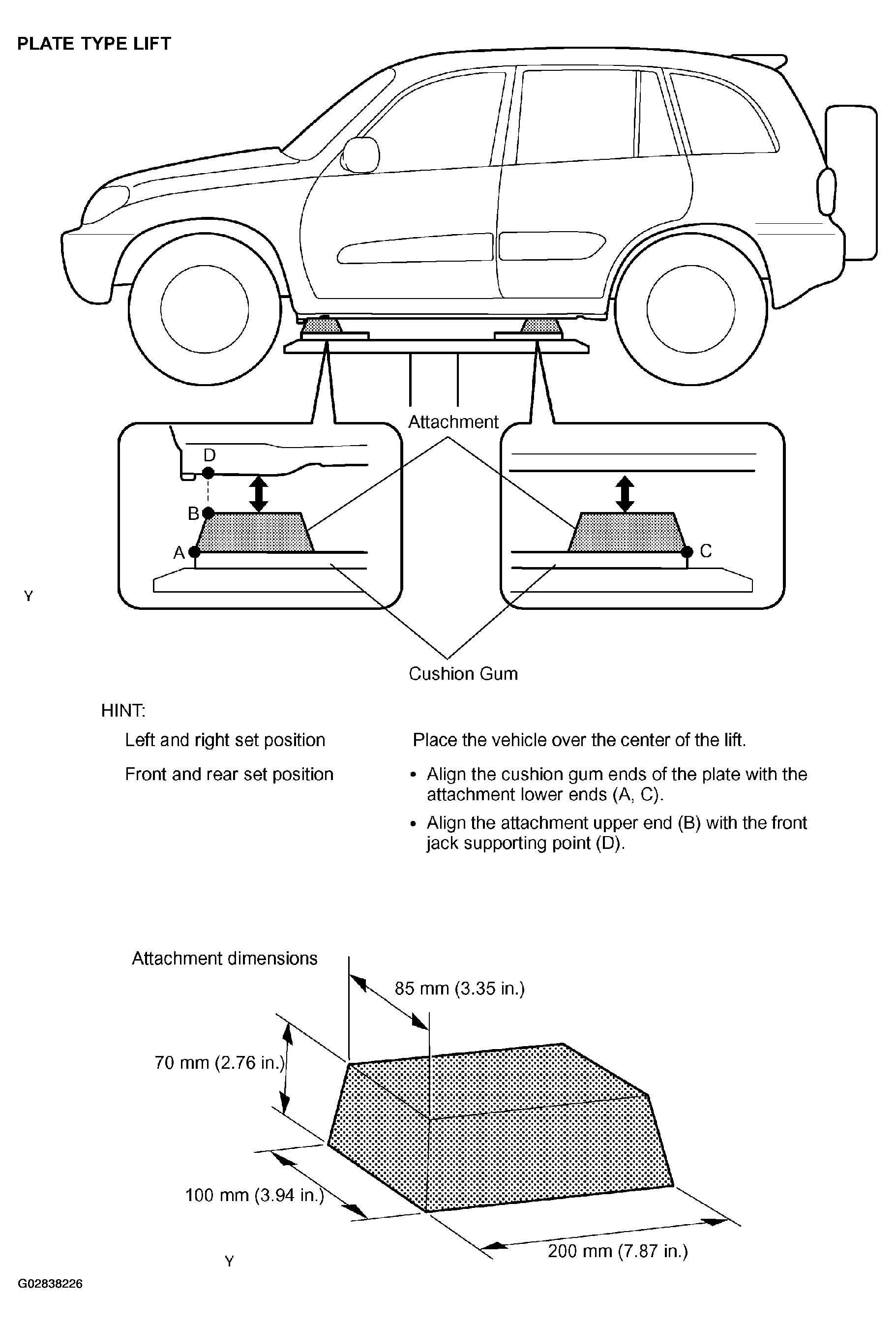

Fig 2: View Of Vehicle Lift & Support Locations (2 Of 2)
G02838226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
