Vehicle Identification And Engine Serial Number

  1. VEHICLE IDENTIFICATION NUMBER

    The vehicle identification number is stamped on the vehicle identification number plate and certification label.

    A: Vehicle Identification Number Plate

    B: Certification Label

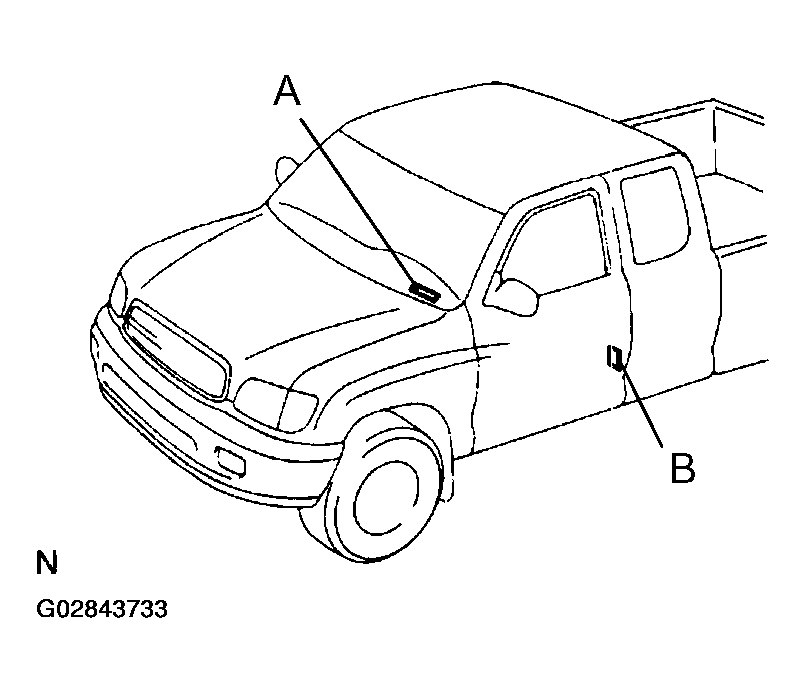

    Fig 1: Locating Vehicle Identification Number
    G02843733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER

    The engine serial number is stamped on the engine block, as shown in Fig 2.

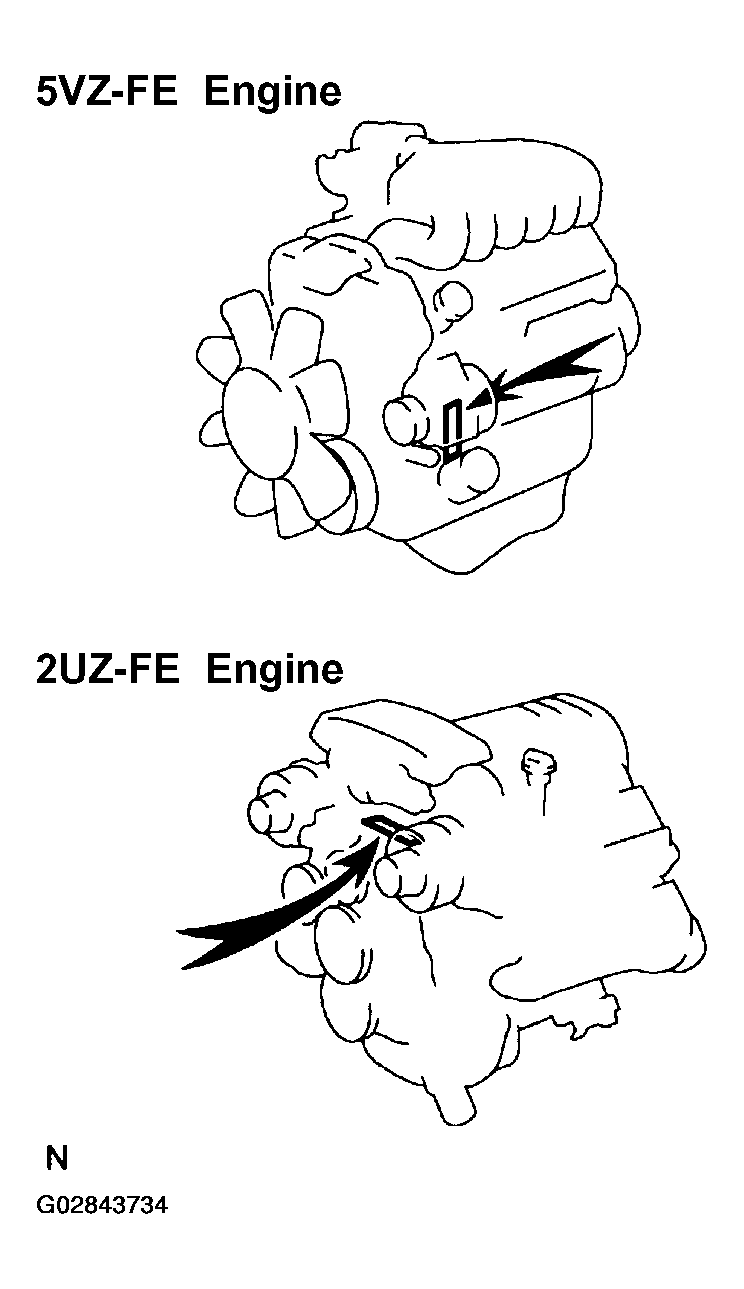

    Fig 2: Identifying Engine Serial Number Locations
    G02843734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
