Fuel Injector ASSY (2ZZ-GE): Components

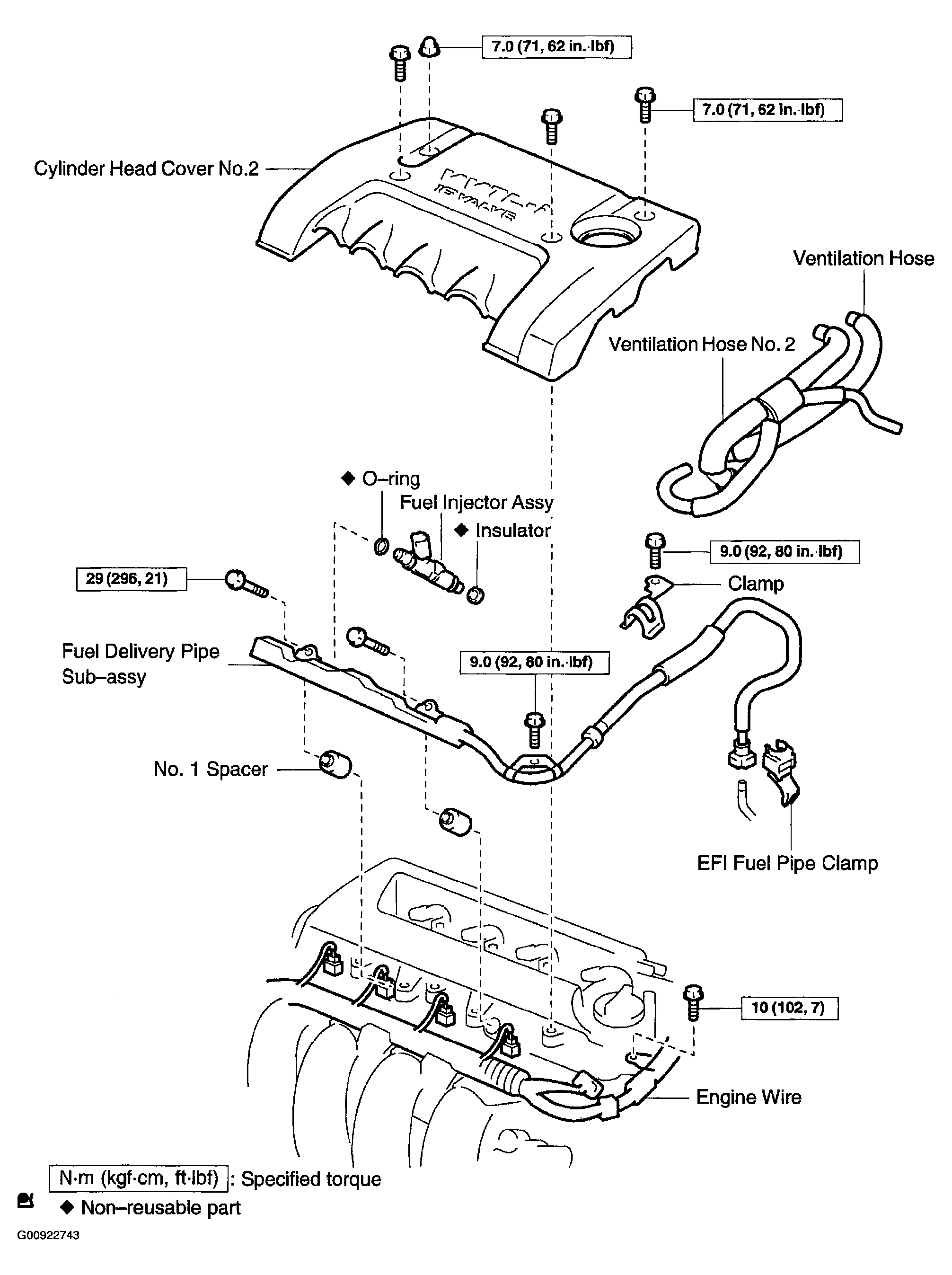

Fig 1: Identifying Fuel Injector Assy (2ZZ-GE) Components (Disassembled View)

G00922743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
