Fuel Tank ASSY (4WD): Components: Notes

Fig 1: Identifying Fuel Tank Assy (4WD) Components
G00922840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

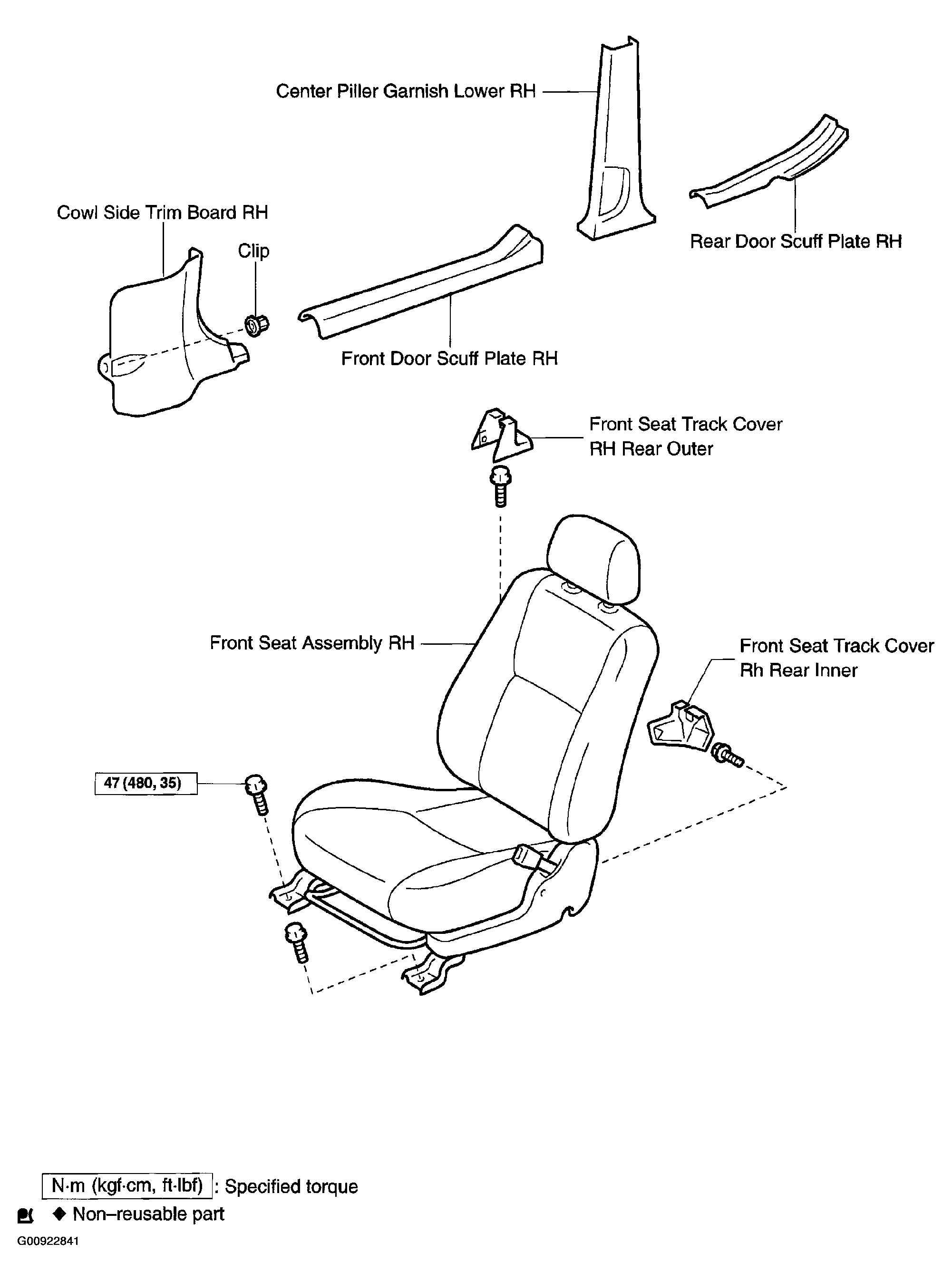

Fig 2: Identifying Front Seat Assembly RH & Door Side Body Components
G00922841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

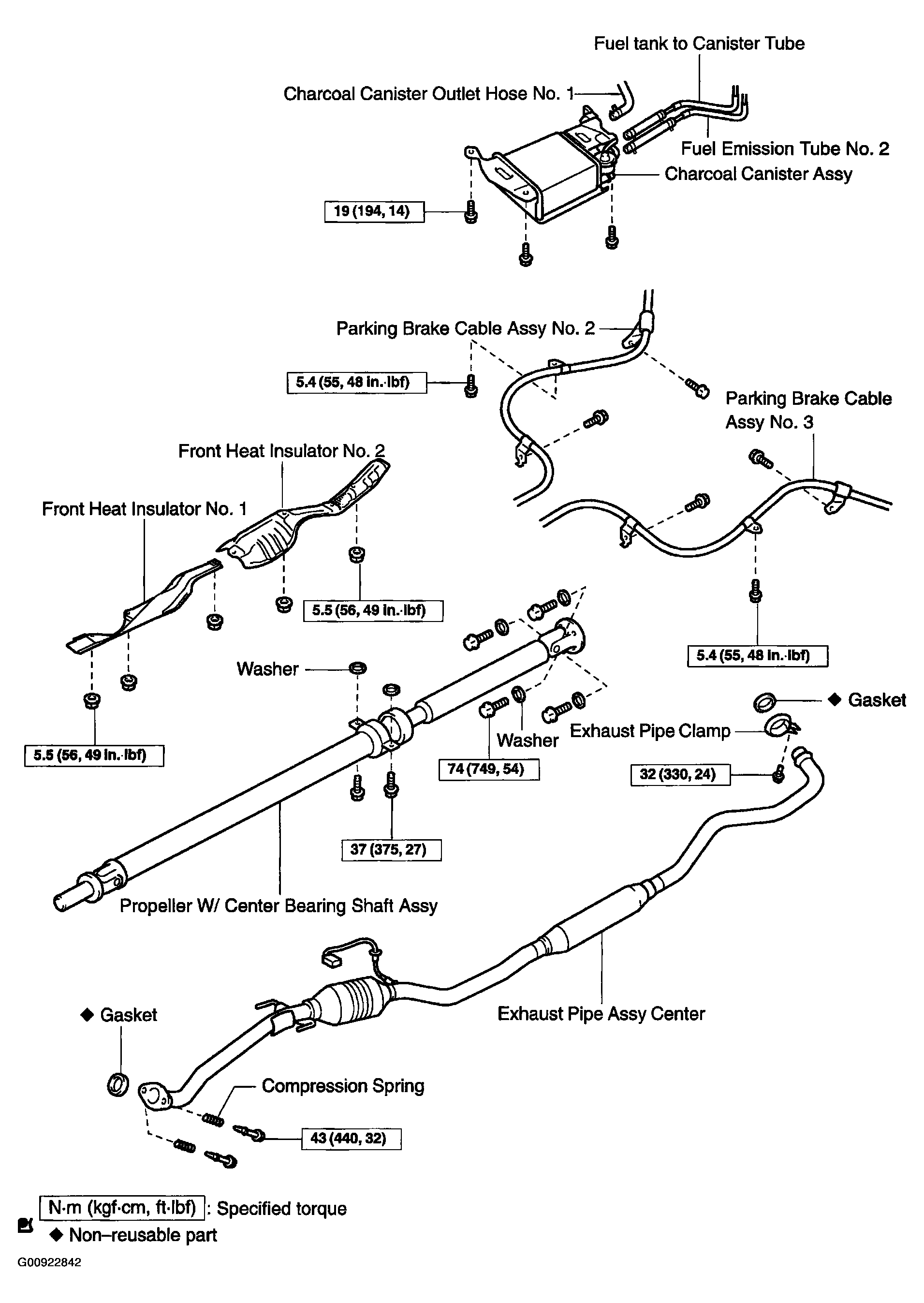

Fig 3: Identifying Charcoal Canister Assy, Parking Brake Cable & Exhaust System Components
G00922842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

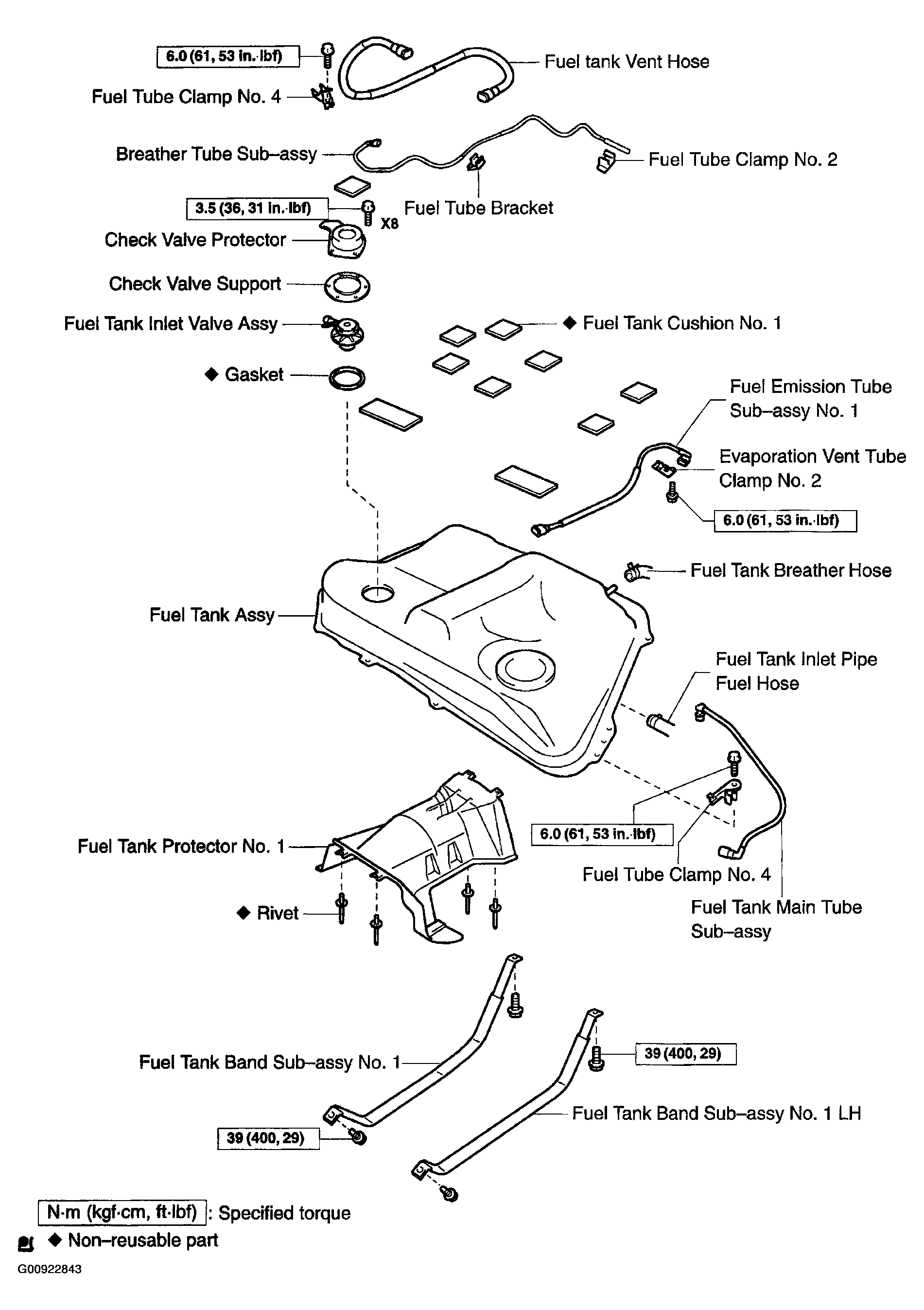

Fig 4: Identifying Fuel Tank Assy (4WD) Components
G00922843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
