Fuel System: Location

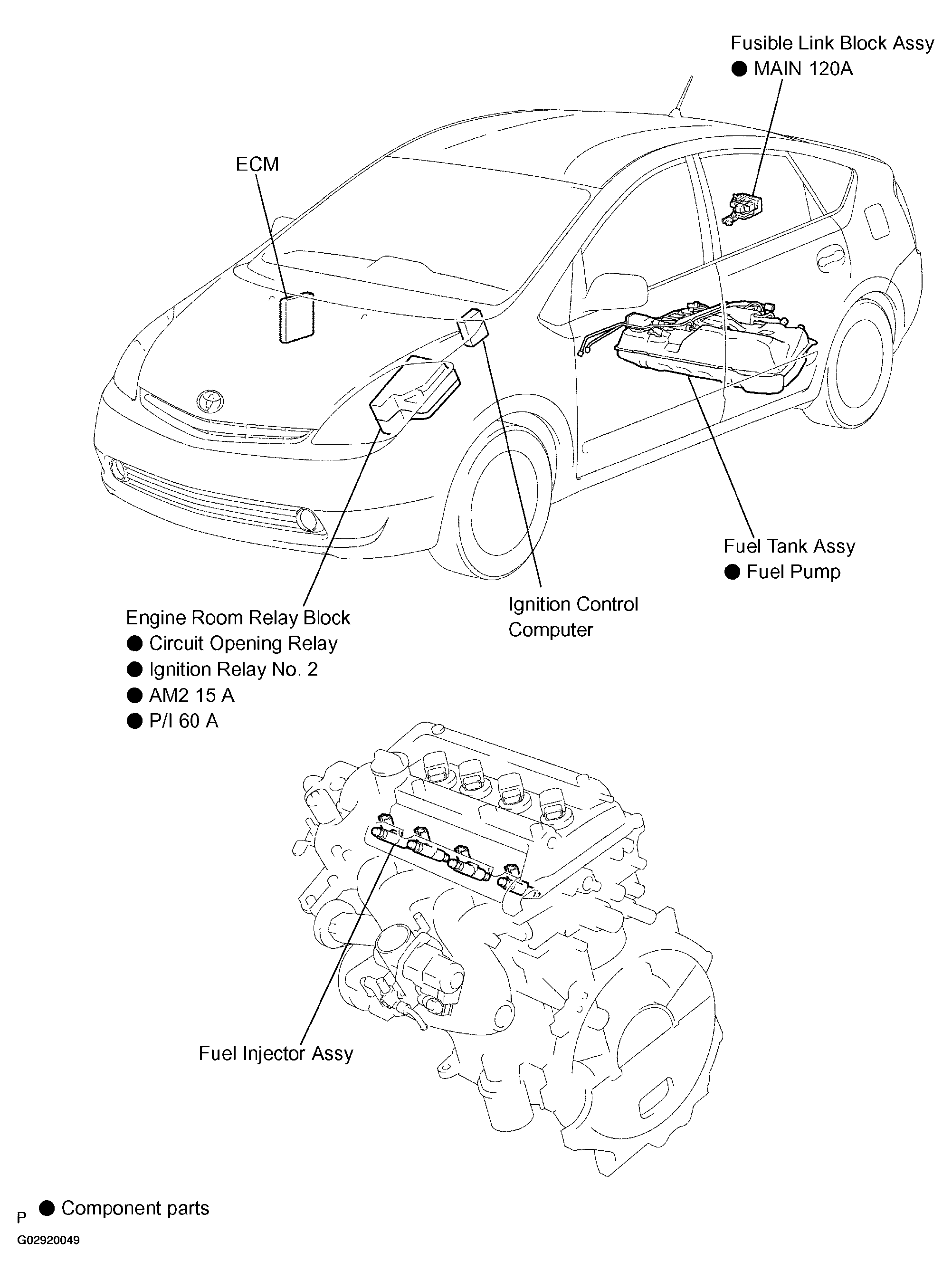

Fig 1: Fuel System Components Location
G02920049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
