SFI System (1NZ-FXE): Location

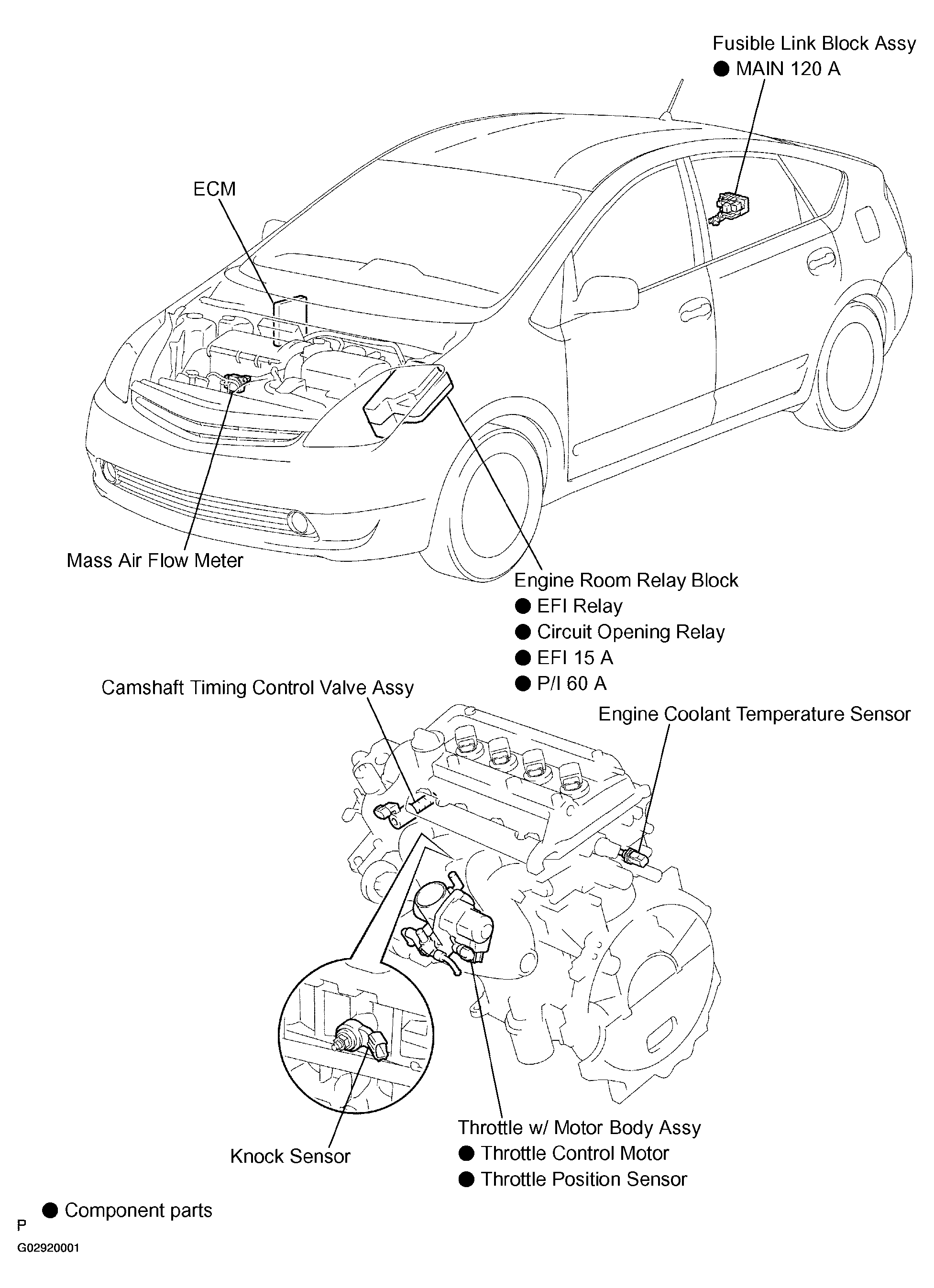

Fig 1: Locating SFI System (1NZ-FXE) Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
