Differential Case ASSY
>>
Components
Differential Case ASSY: Components

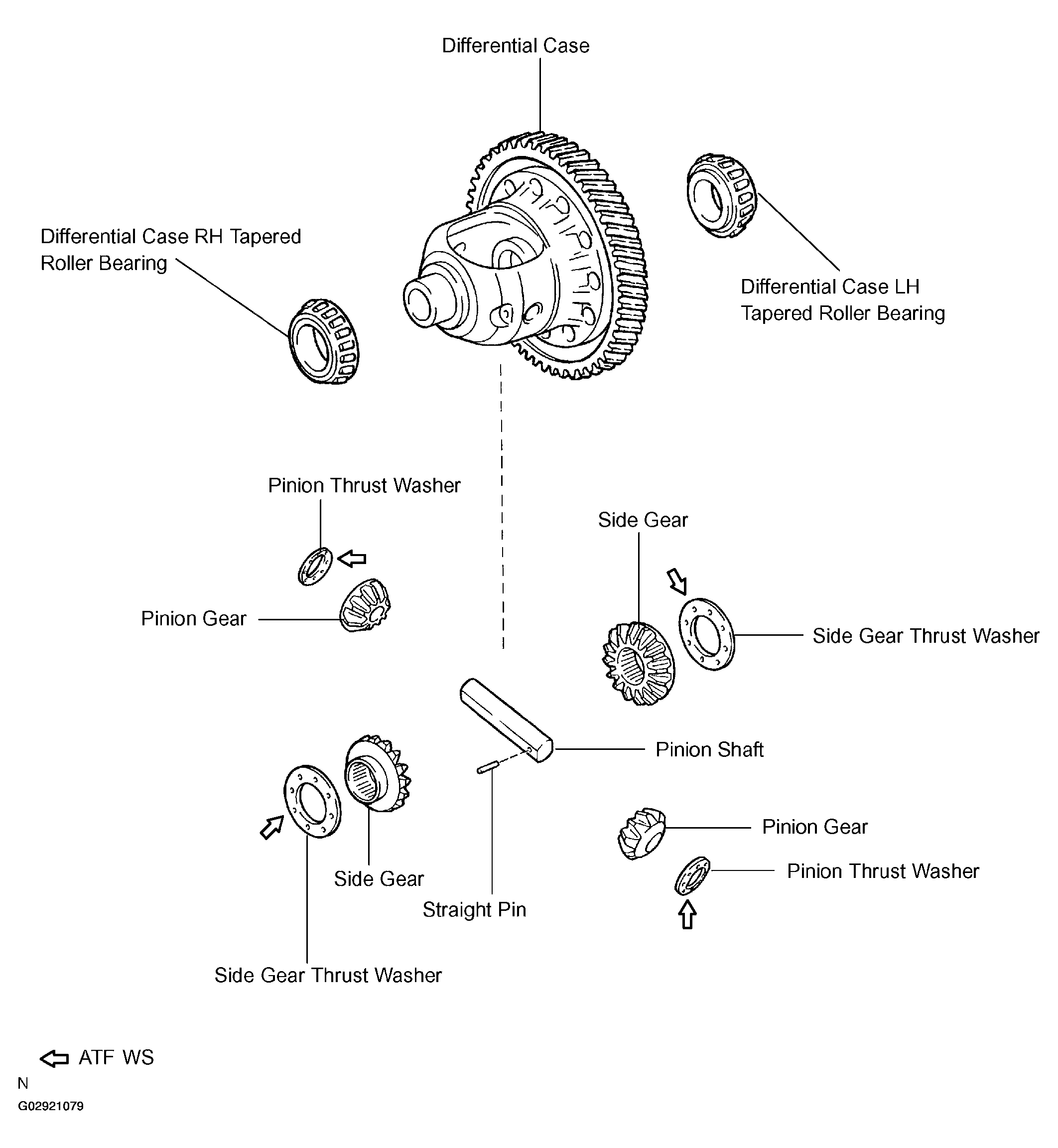

Fig 1: Exploded View Of Differential Case Assy Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
