Fuel Tank And Line: Components

CAUTION:
  • Always use new gaskets when replacing the fuel tank or component parts.
  • Apply the proper torque to all the parts to be tightened.

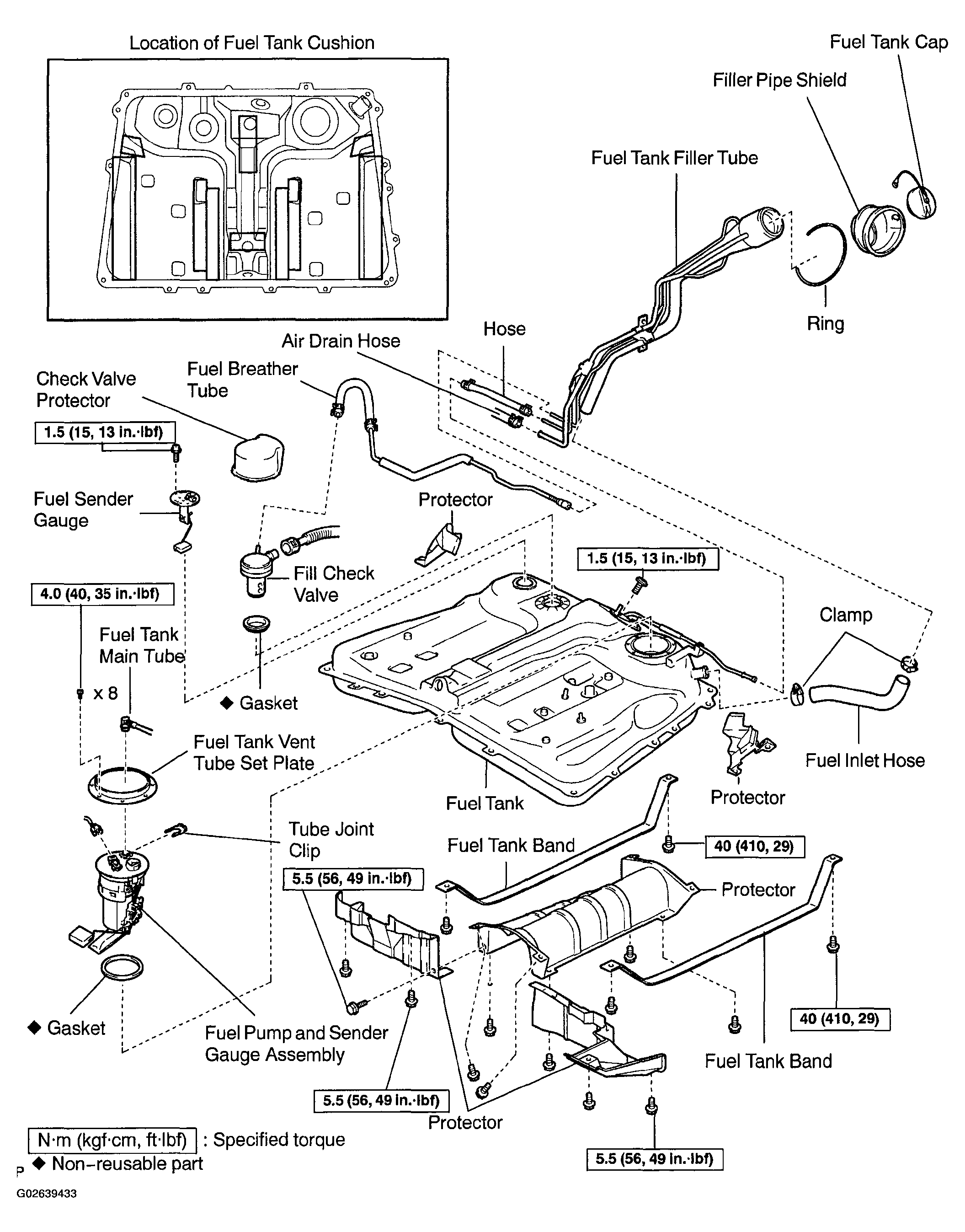

    Fig 1: Identifying Fuel Tank And Line Components
    G02639433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
