VSV For Pressure Switching Valve
>>
Components
VSV For Pressure Switching Valve: Components

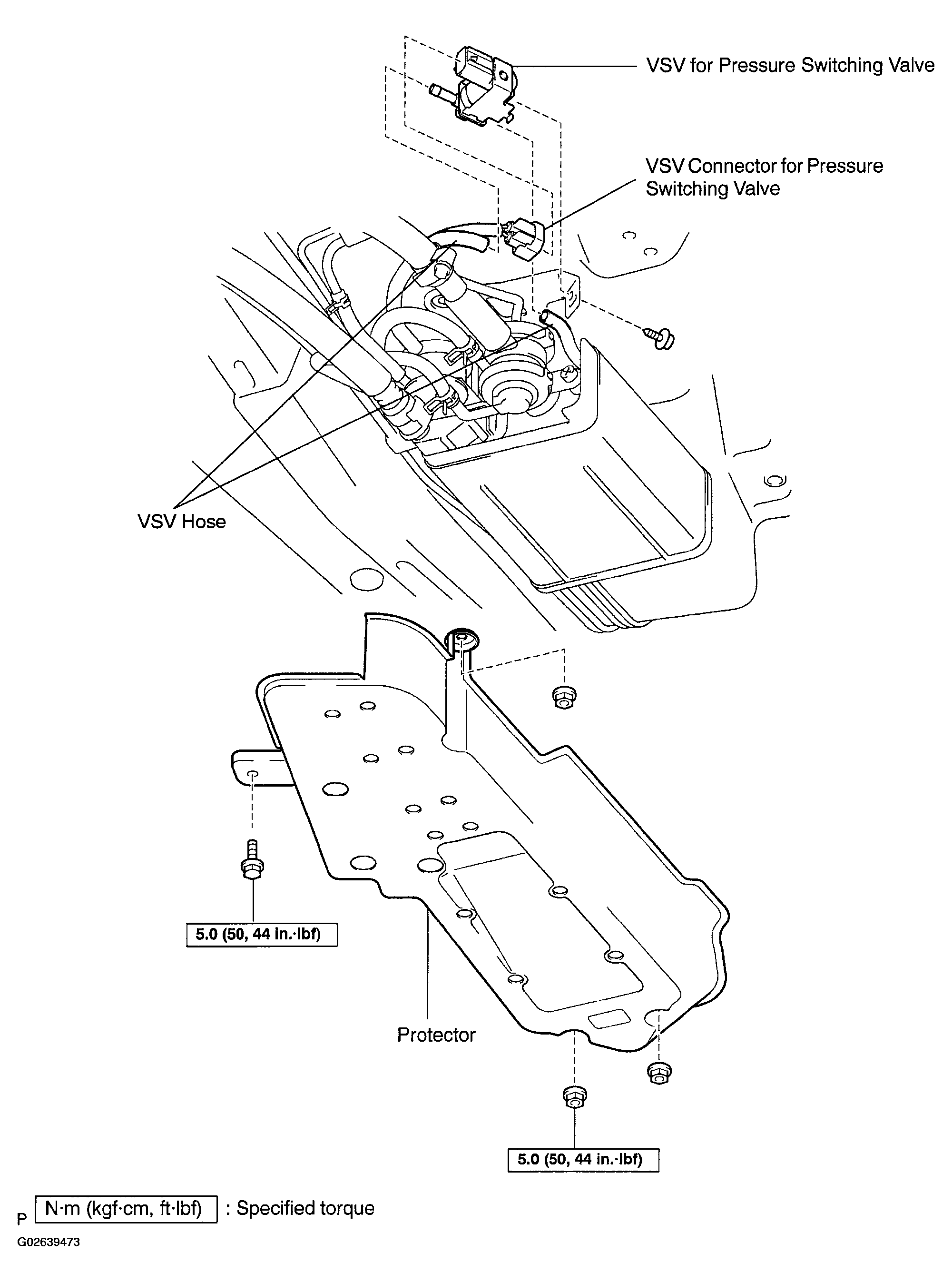

Fig 1: Identifying VSV For Pressure Switching Valve Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
