Throttle Body ASSY (1ZZ-FE): Components

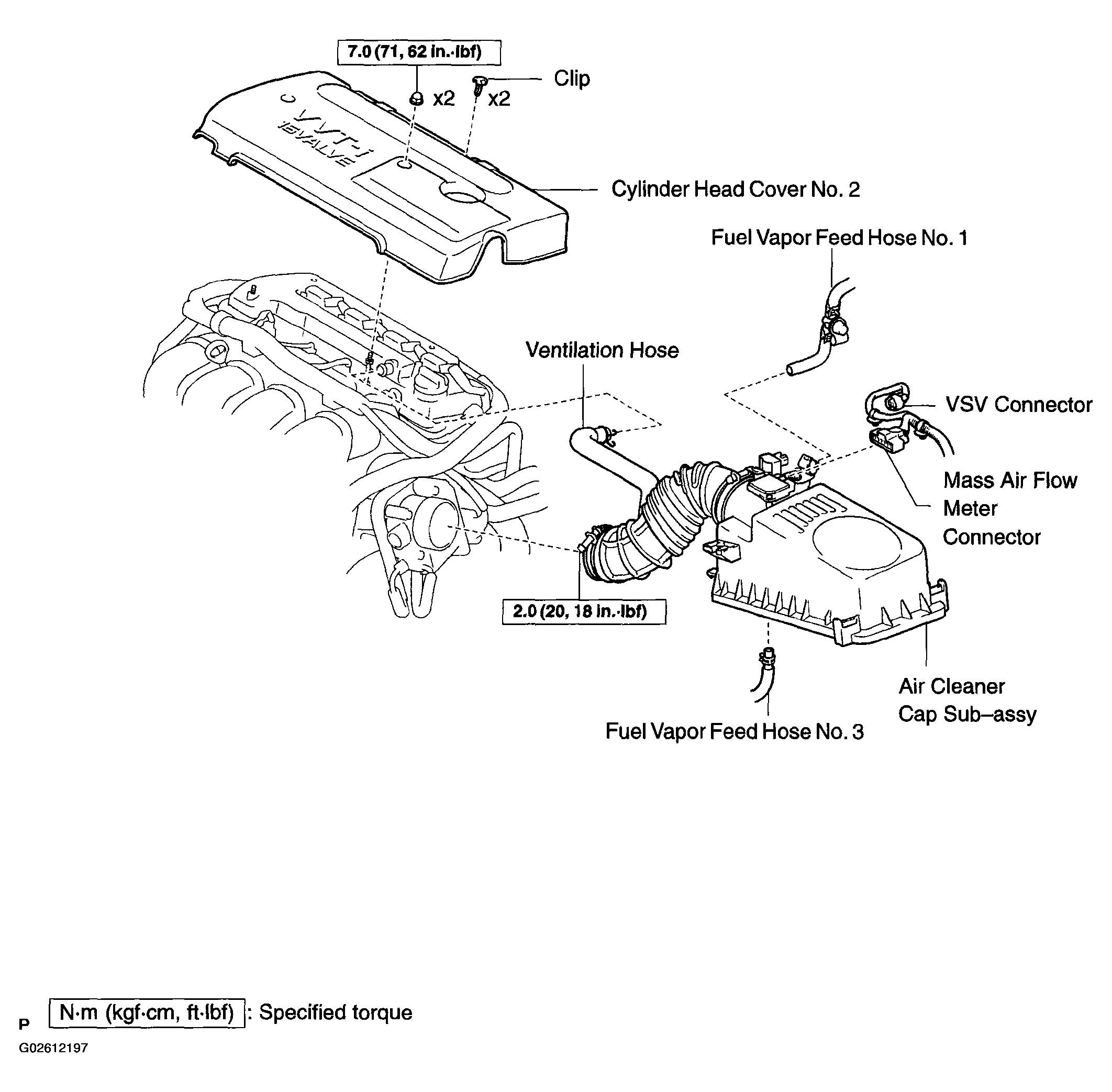

Fig 1: Identifying Throttle Body Assy (1ZZ-FE) Components (1 Of 2)
G02612197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

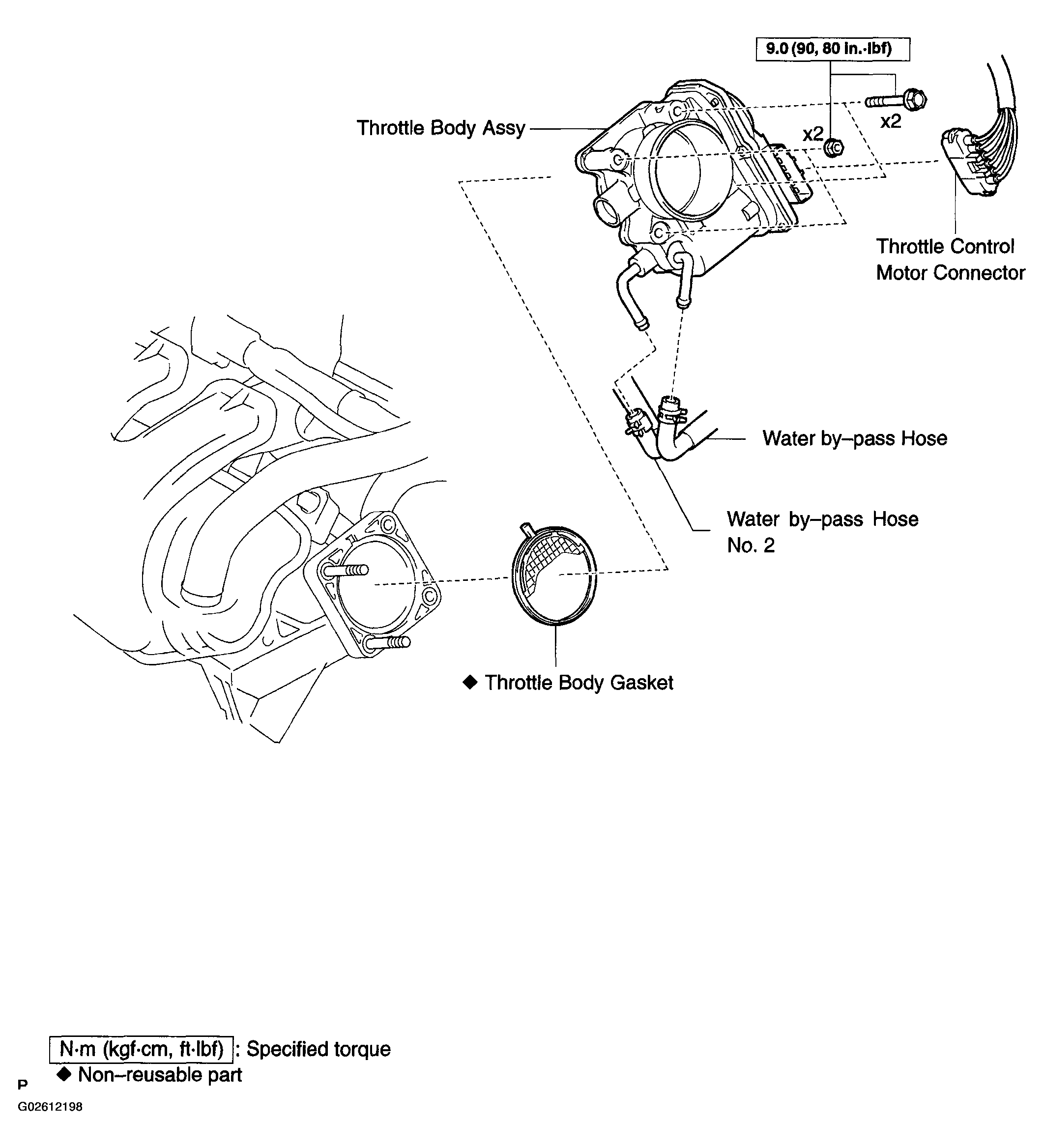

Fig 2: Identifying Throttle Body Assy (1ZZ-FE) Components (2 Of 2)
G02612198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
