Throttle Body ASSY (2ZZ-GE): Components: Notes

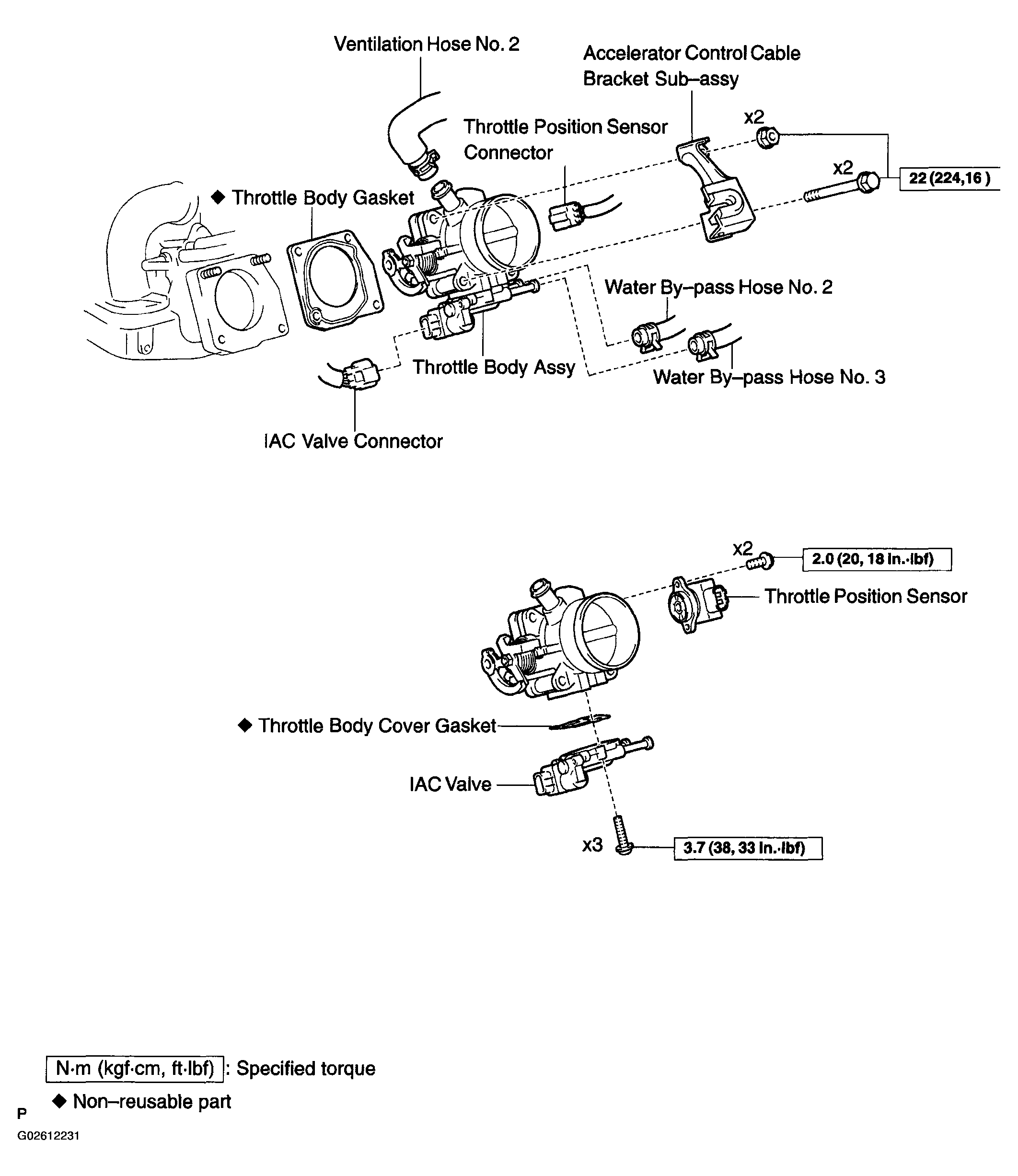

Fig 1: Identifying Throttle Body Assy (2ZZ-GE) Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

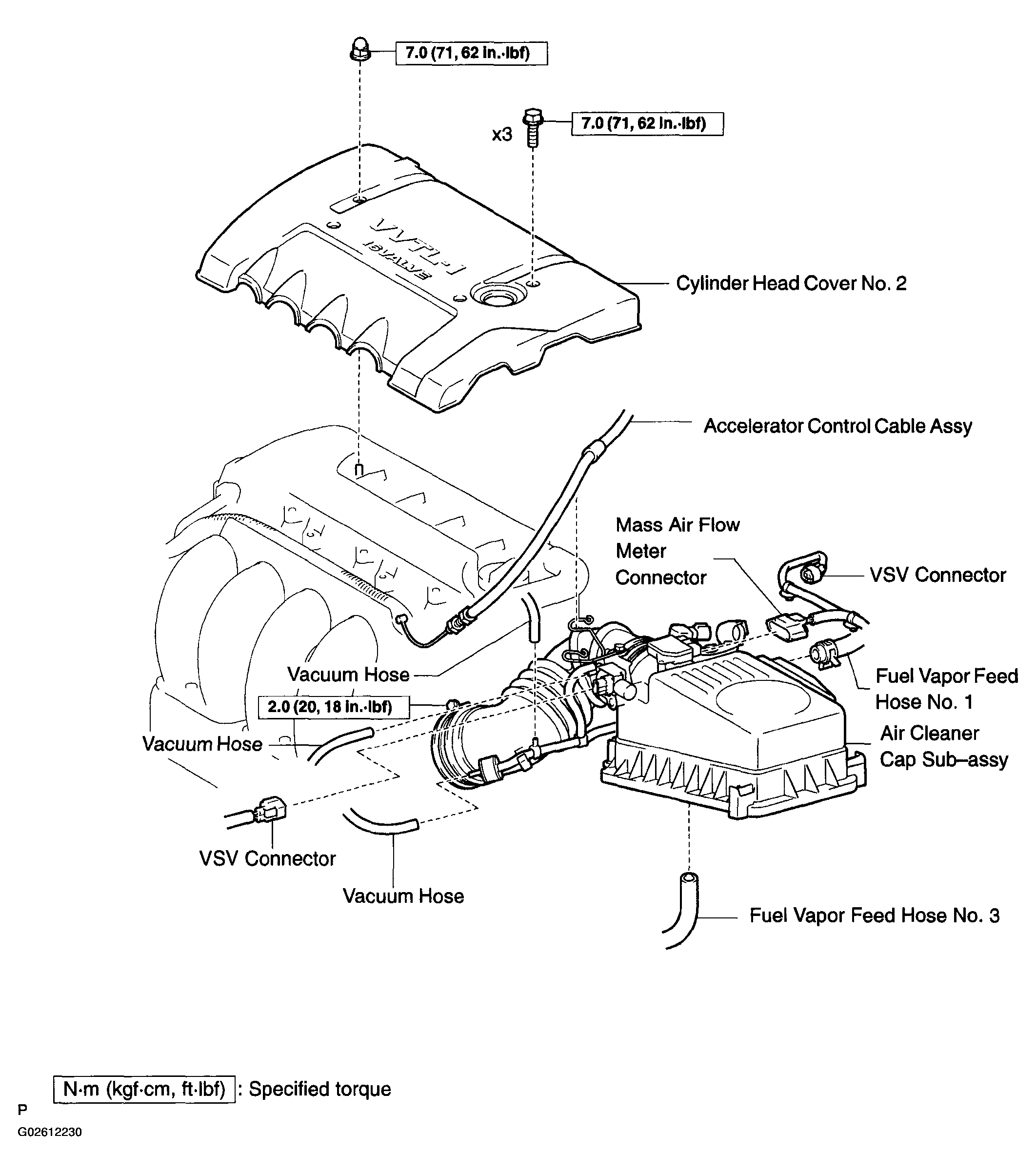

Fig 2: Identifying Throttle Body Assy (2ZZ-GE) Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
