Problem Symptoms Table

When the malfunction is not confirmed in the DTC check and the problem still cannot be confirmed in the basic inspection, use problem symptoms and troubleshoot systems in the order listed under "Suspected Area" according to the numbered order given .

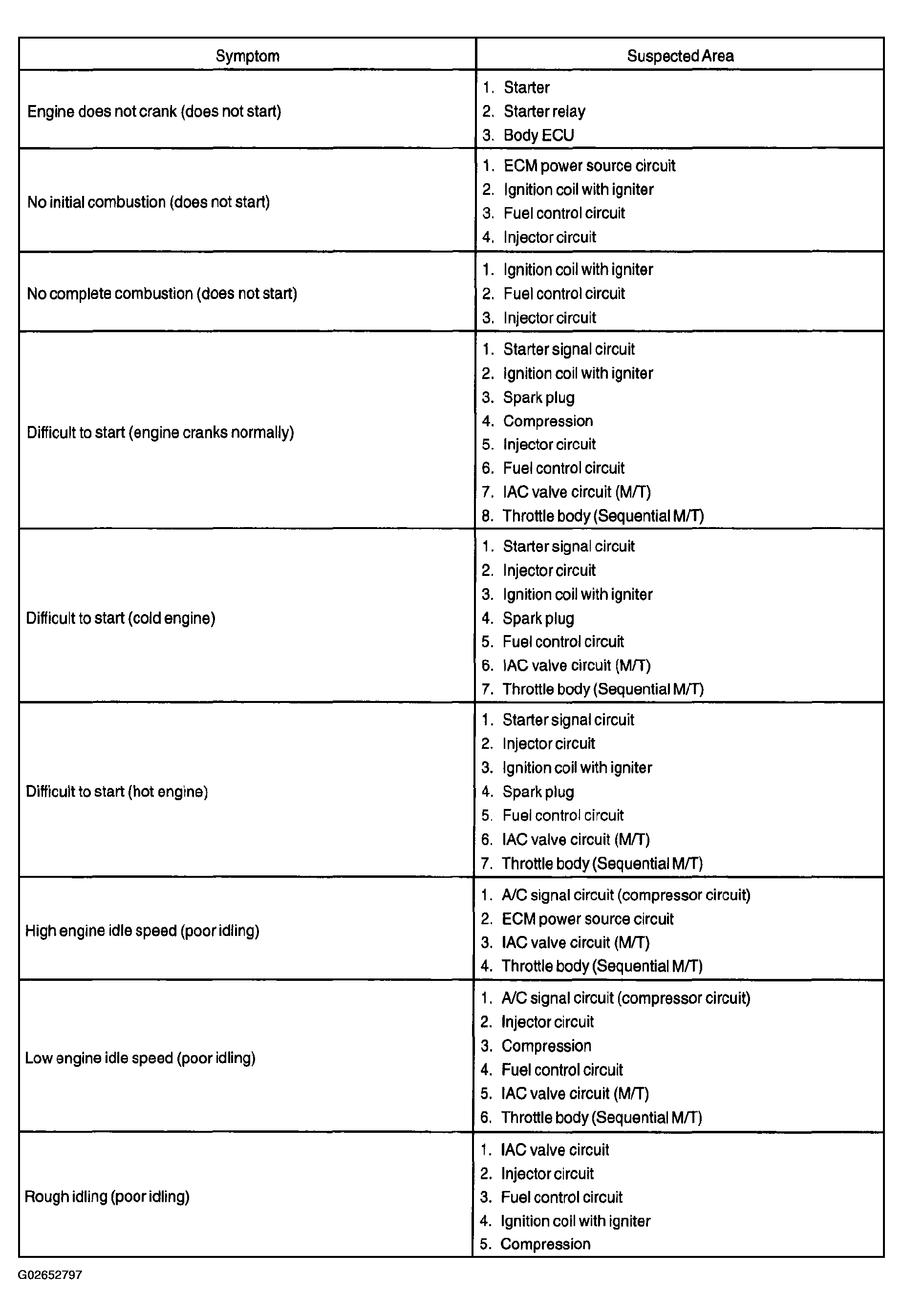

Fig 1: Problem Symptoms Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

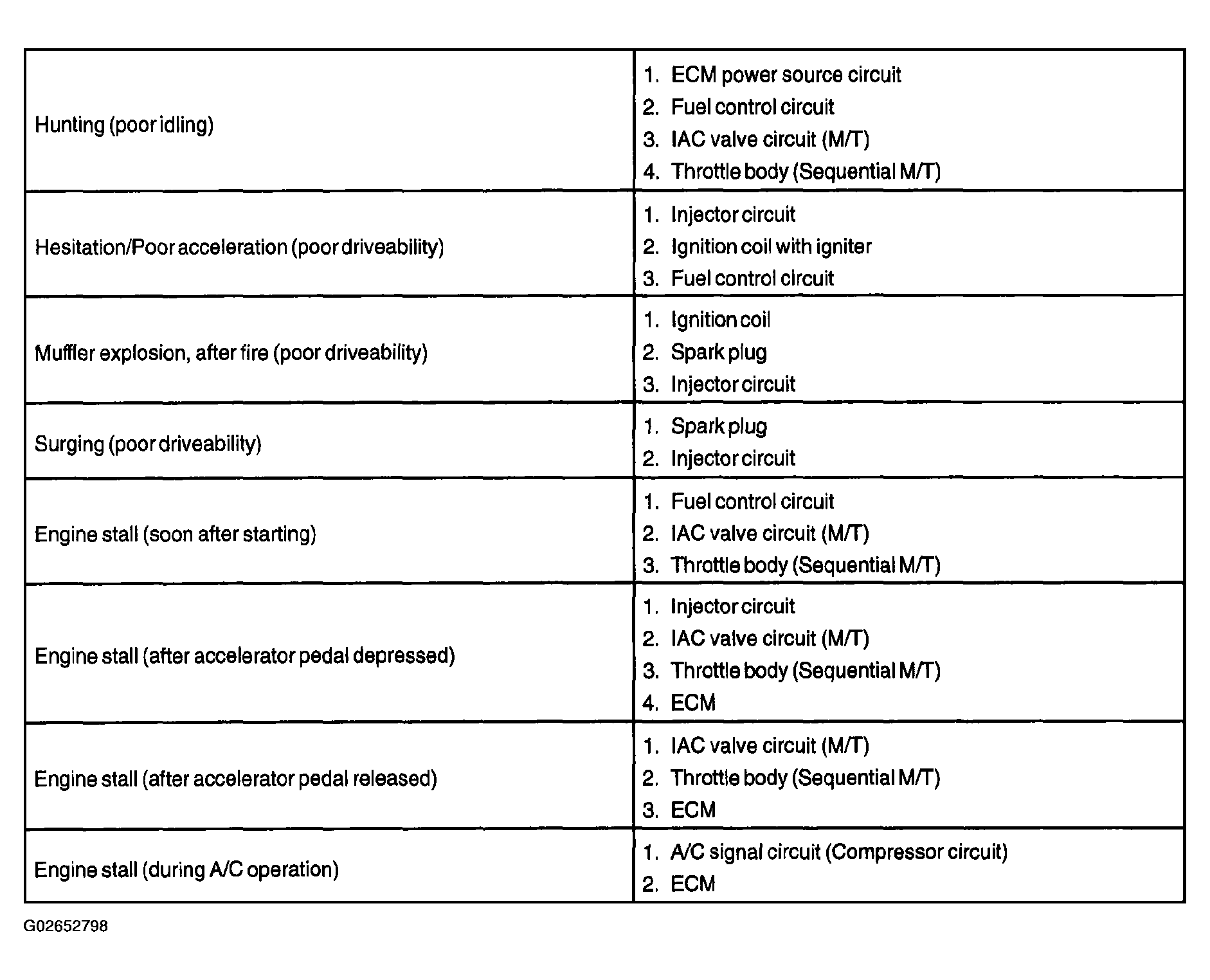

Fig 2: Problem Symptoms Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
