Inspection Procedure

HINT:

This DTC chart is based on the premise that the engine is cranked normally. If the engine is not cranked, proceed to the problem symptoms table on PROBLEM SYMPTOMS TABLE  .

Hand-held tester:

1. Check STA signal.

   PREPARATION:

   1. Connect the hand-held tester to the DLC3.
   2. Turn the ignition switch to ON and turn the hand-held tester main switch ON.

   CHECK:

   Read the STA signal on the hand-held tester while the starter is operating.

   OK:

   STA SIGNAL SPECIFICATION TABLE



   Ignition Switch Position	ON	START
   STA Signal	OFF	ON

   • OK: Proceed to next circuit inspection shown in problem symptoms table (See  PROBLEM SYMPTOMS TABLE   ).
   • NG: Go to next step.
2. Check for open in harness and connectors between ECM and starter relay (Marking: ST) (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
   • NG: Repair or replace harness or connector.
   • OK: Replace ECM (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).

OBD II scan tool (excluding the hand-held tester):

1. Check voltage between terminal STA of ECM connector and body ground.

   PREPARATION:

   1. Turn the ignition switch to ON.

   CHECK:

   Measure the voltage between the terminal STA of the ECM connector and body ground during the engine cranking.

   OK:

   Voltage: 6 V or more

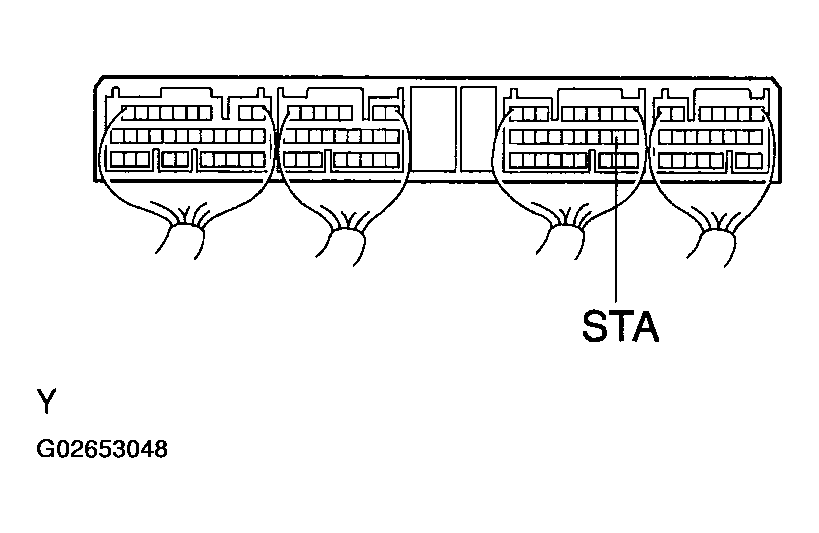

   Fig 1: Checking Voltage Between Terminal STA And Body Ground

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • OK: Proceed to next circuit inspection shown in problem symptoms table (See  PROBLEM SYMPTOMS TABLE   ).
   • NG: Go to next step.
2. Check for open in harness and connectors between ECM and starter relay (Marking: ST) (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
   • NG: Repair or replace harness or connector.
   • OK: Replace ECM (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
