Terminals Of ECM

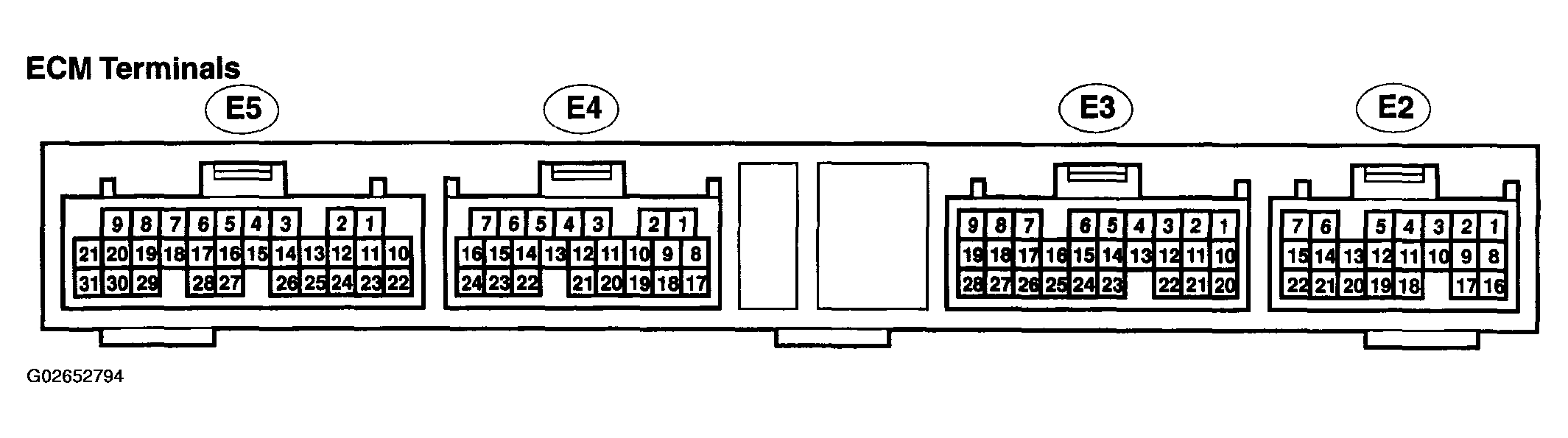

Fig 1: Identifying Terminals Of ECM
G02652794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

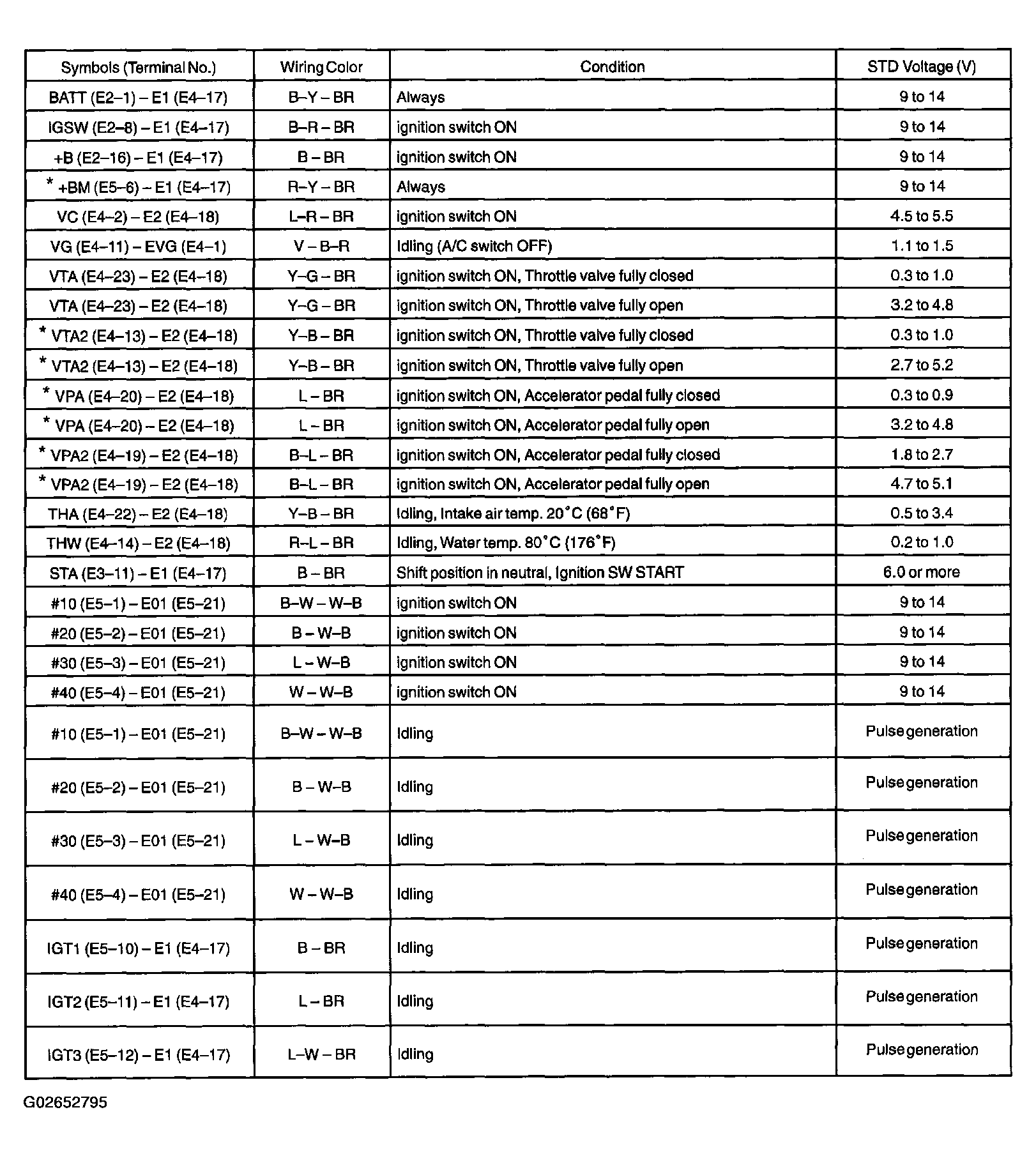

Fig 2: Terminals Of ECM Reference Chart (1 Of 2)
G02652795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

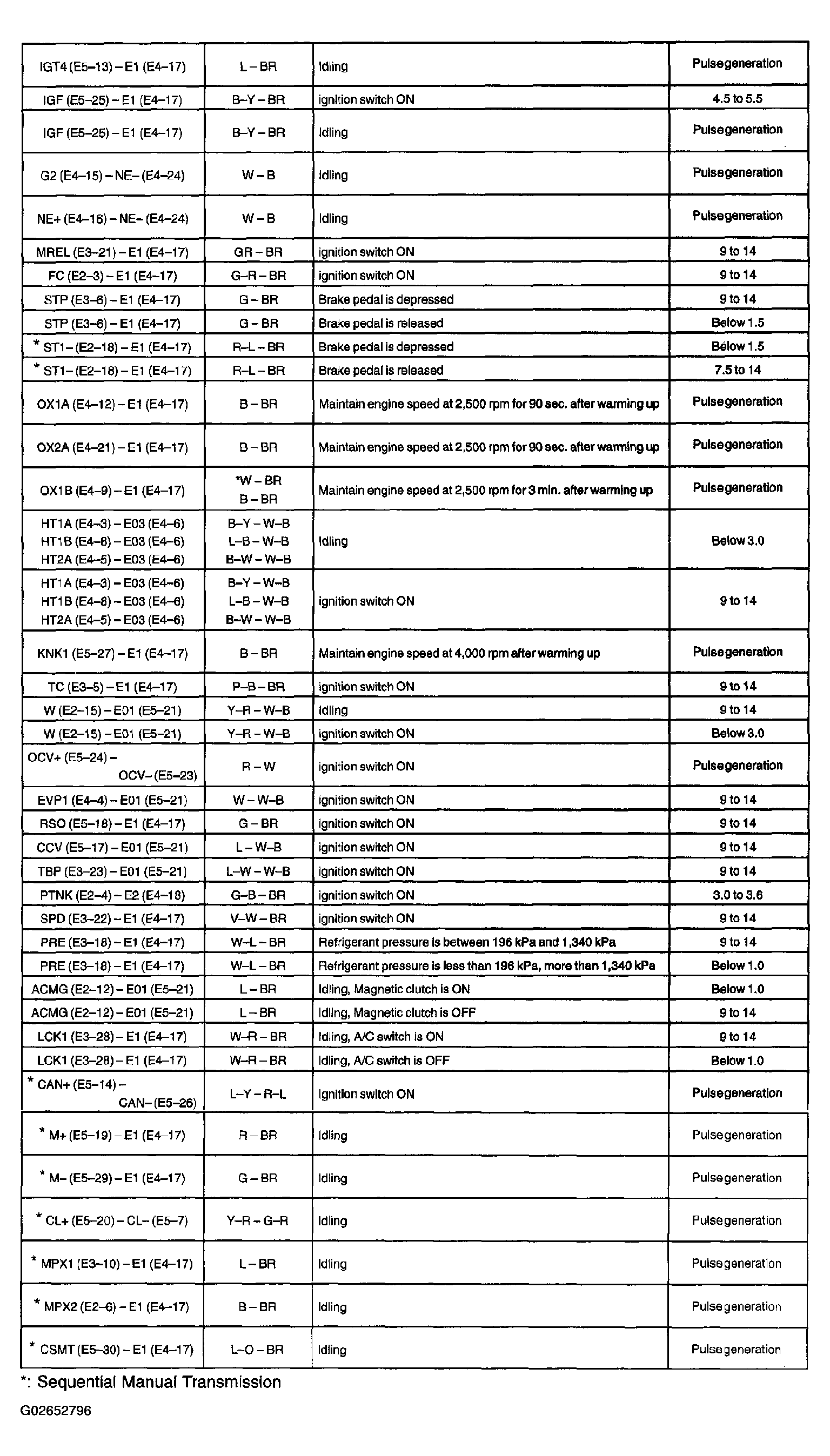

Fig 3: Terminals Of ECM Reference Chart (2 Of 2)
G02652796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
