EFI Main Relay: Inspection

  1. REMOVE EFI MAIN RELAY (Marking: EFI MAIN)

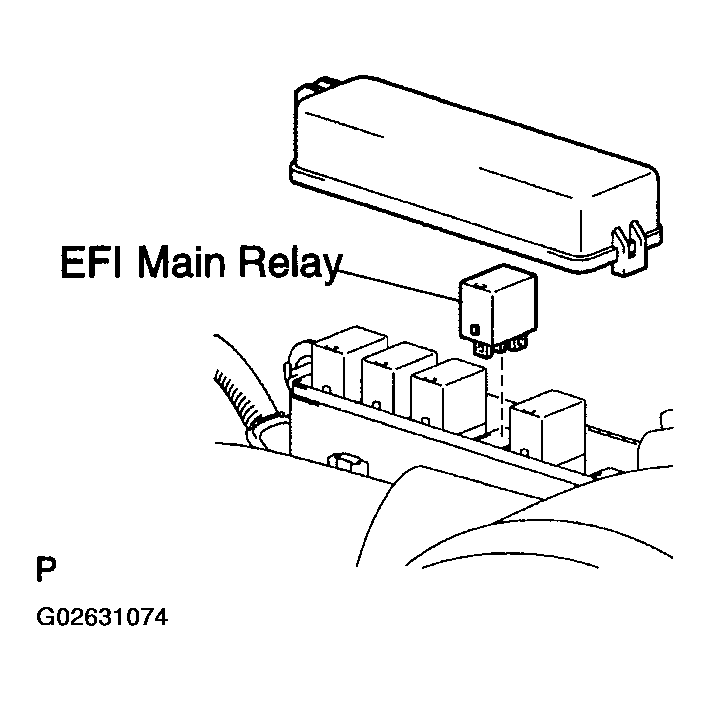

    Fig 1: Removing EFI Main Relay
    G02631074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT EFI MAIN RELAY
    1. Inspect the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

      Standard:

    EFI MAIN RELAY - TESTER CONDITION TABLE

    Tester Connection Specified Condition
    3-5 10 kΩ or higher
    3-5 Below 1Ω (Apply battery voltage to terminals 1 and 2)

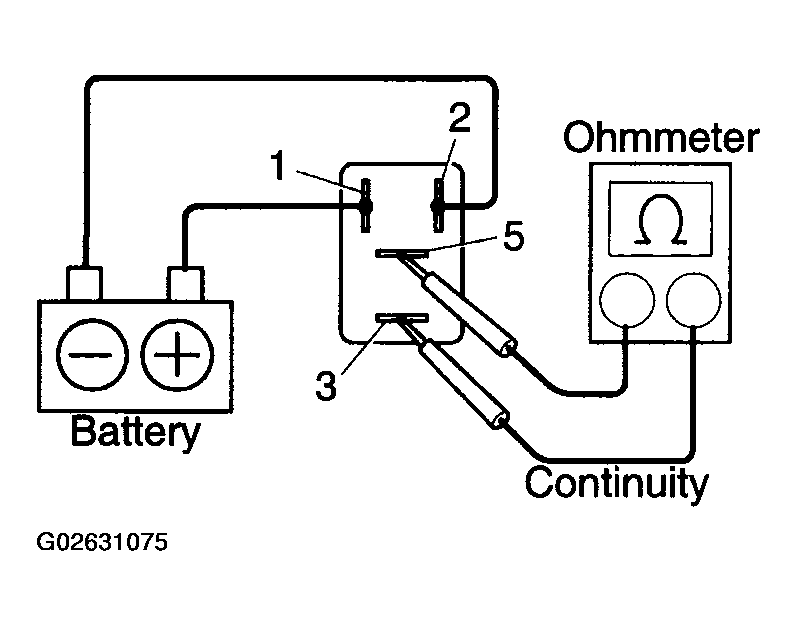

    Fig 2: Measuring Resistance Between Terminals Using An Ohmmeter
    G02631075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the resistance is not as specified, replace the relay.

  3. REINSTALL EFI MAIN RELAY
