Engine Control Module (ECM): Components

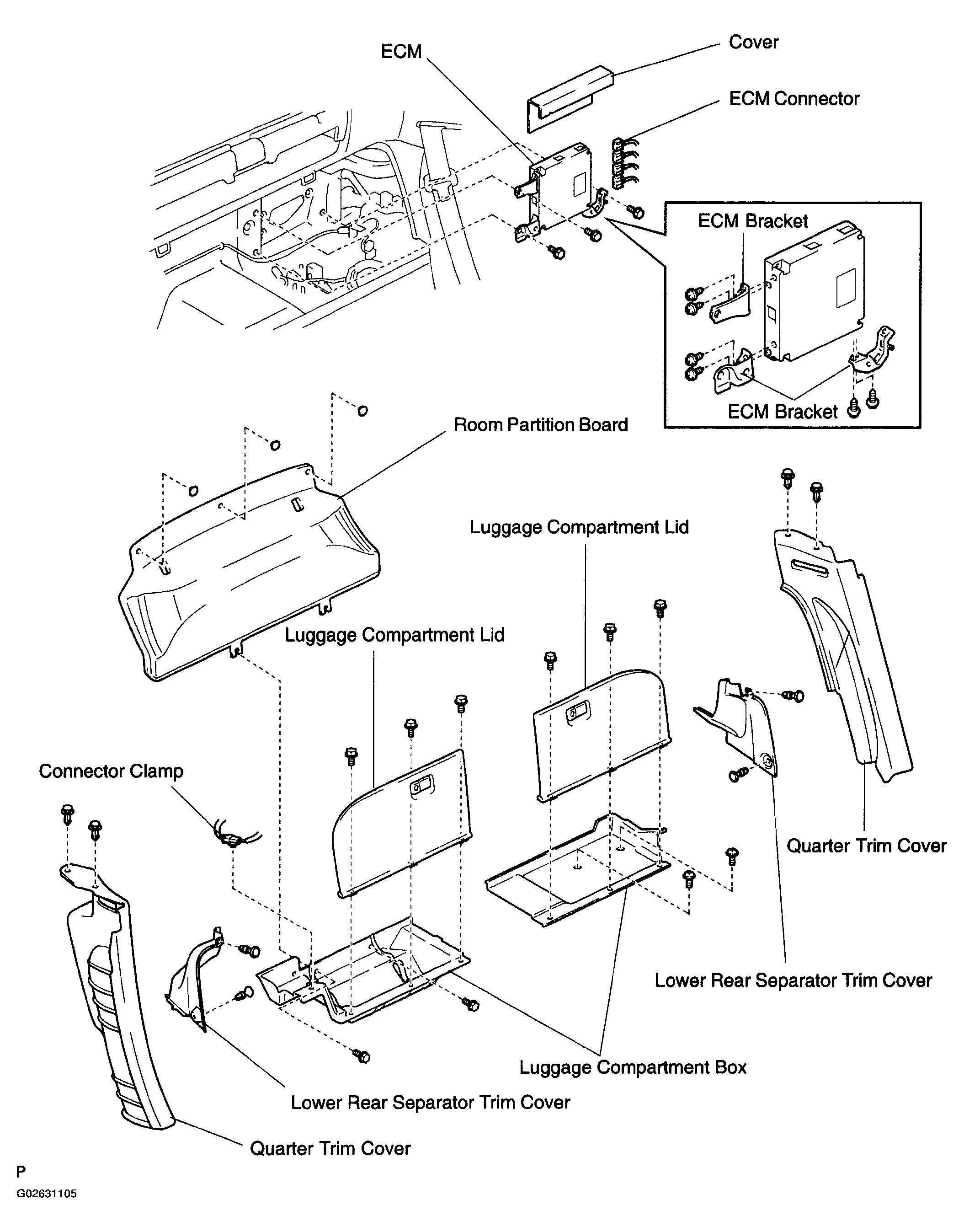

Fig 1: Identifying Engine Control Module Components

G02631105

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
