Fuel Pressure Regulator: Components

Fig 1: Identifying Fuel Pressure Regulator Components (1 Of 2)
G02630994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

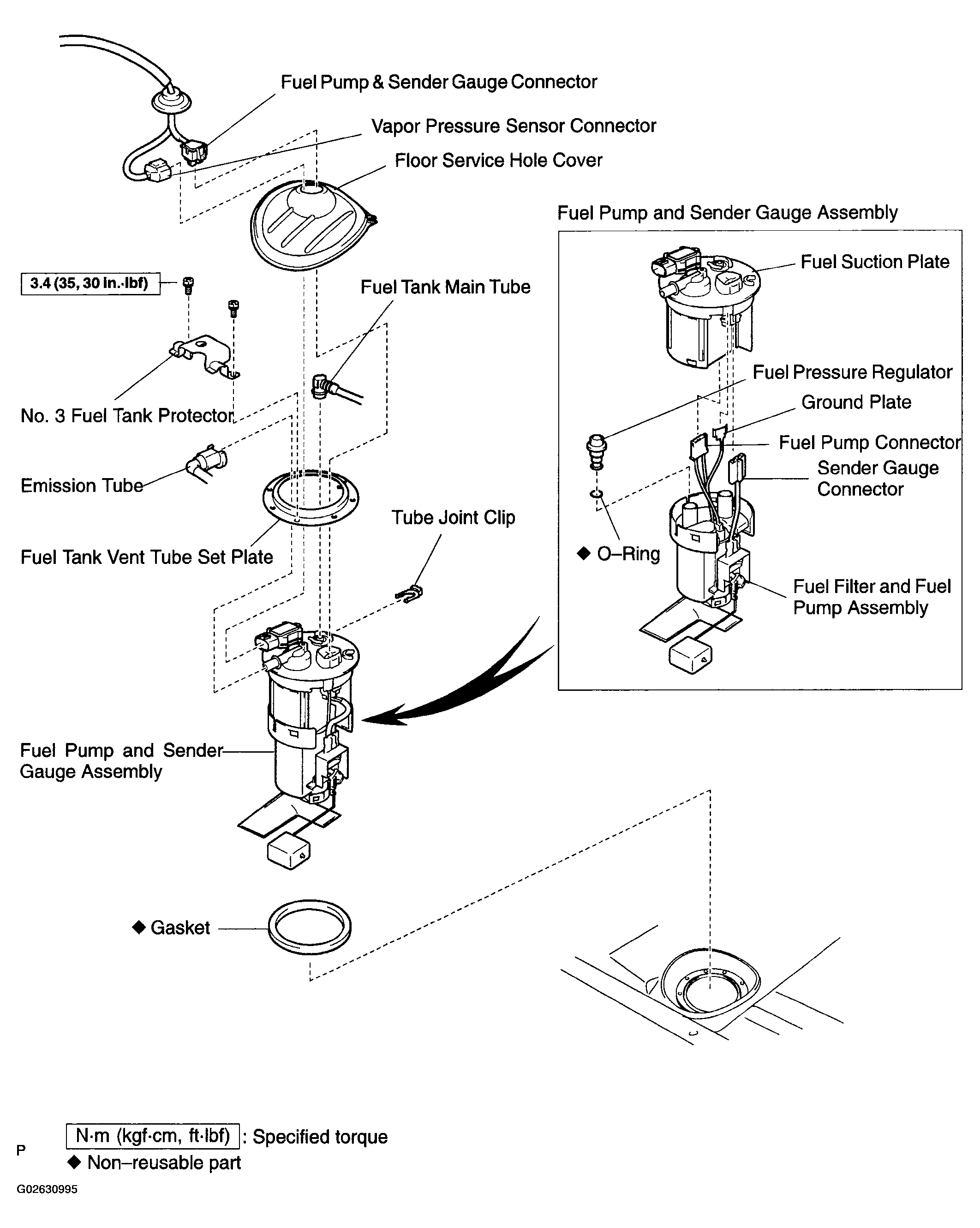

Fig 2: Identifying Fuel Pressure Regulator Components (2 Of 2)
G02630995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
