Engine Control System (SFI): Injector: Components

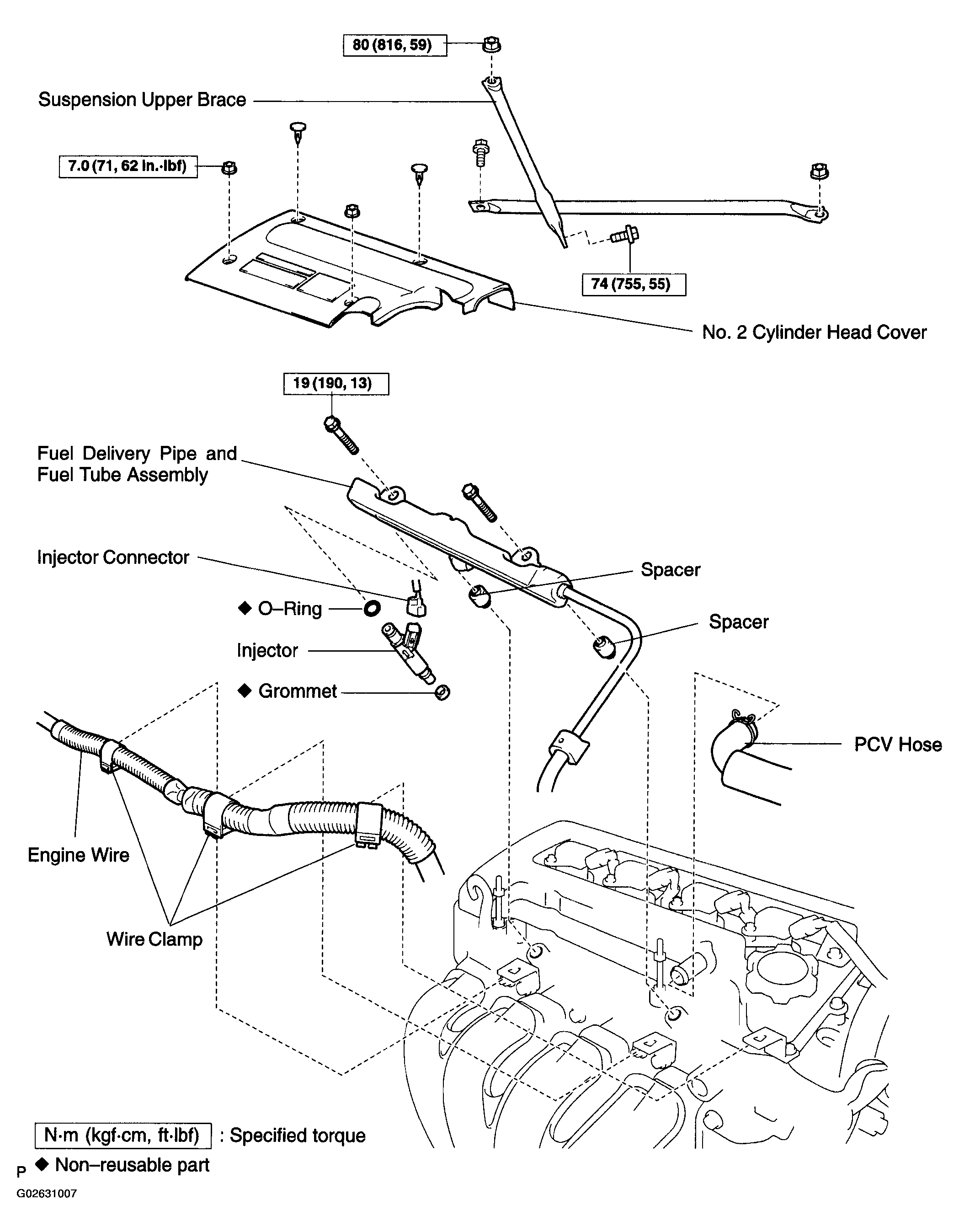

Fig 1: Identifying Injector Components
G02631007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
