lemon-mirror
:
Home
>>
Toyota
>>
2005
>>
MR2 C65M
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (SFI)
>>
Throttle Body (M/T)
>>
Components
Throttle Body (M/T): Components

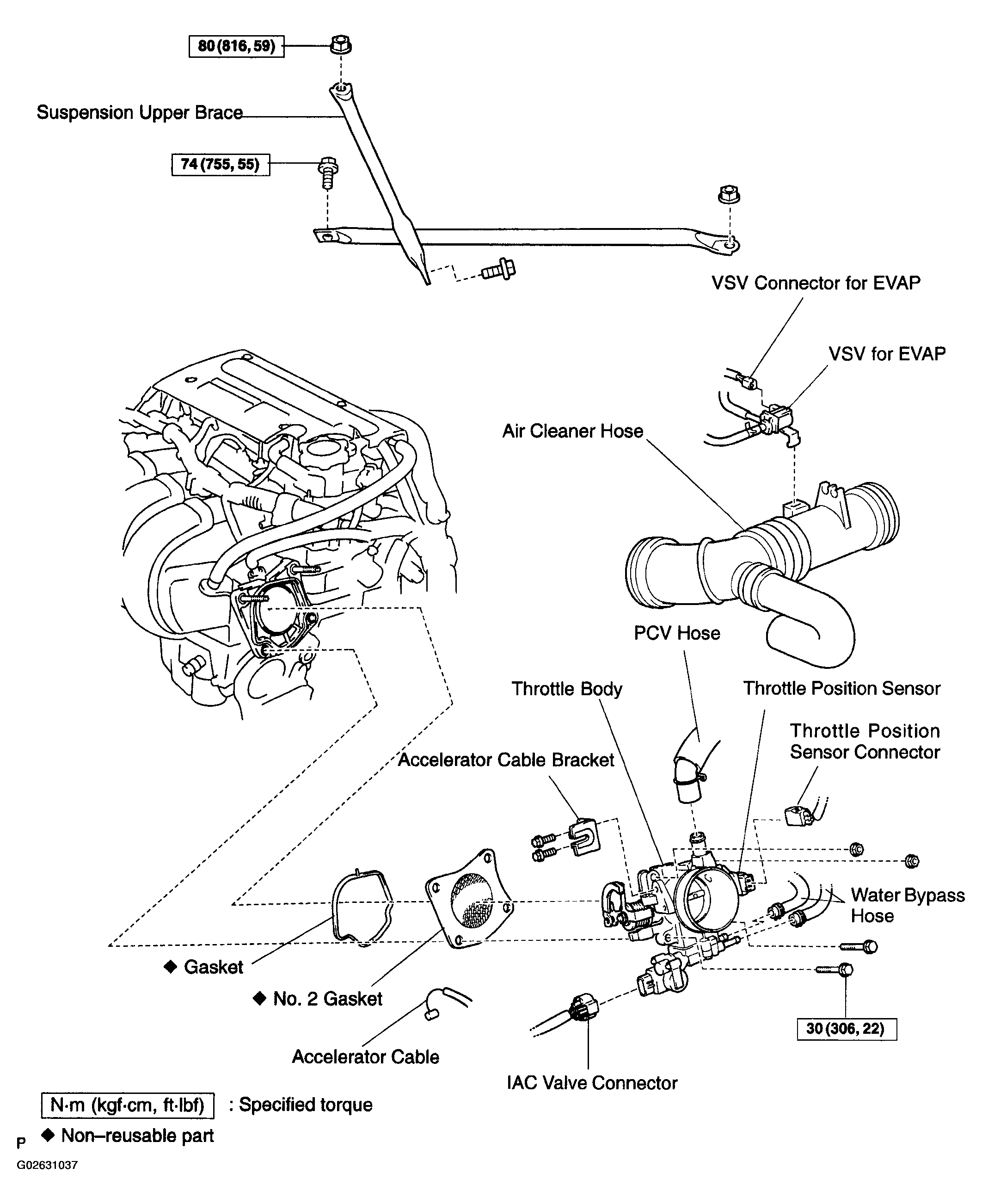

Fig 1: Identifying Throttle Body (M/T) Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
