Throttle Body (SMT): Components

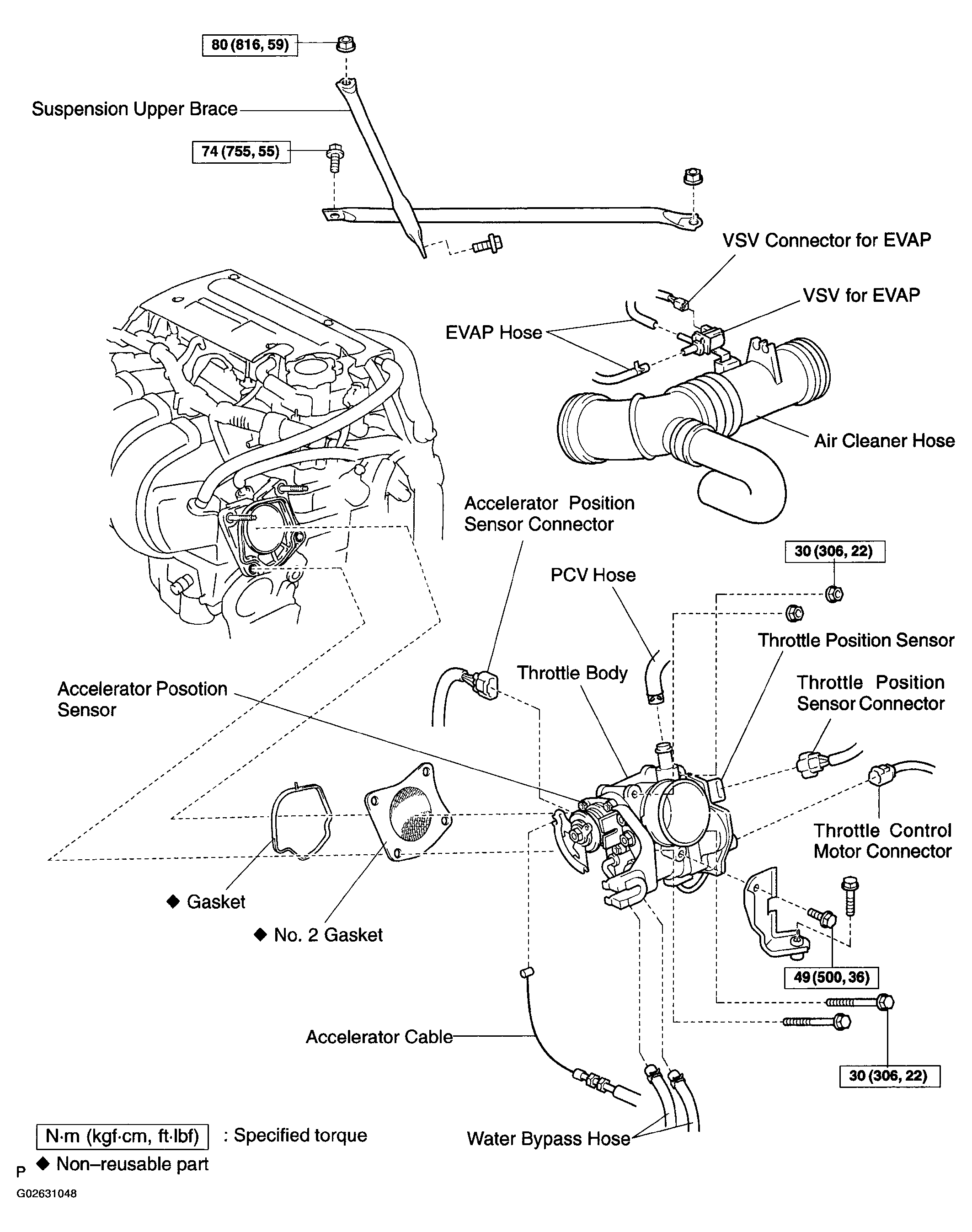

Fig 1: Identifying Throttle Body (SMT) Components (1 Of 2)
G02631048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

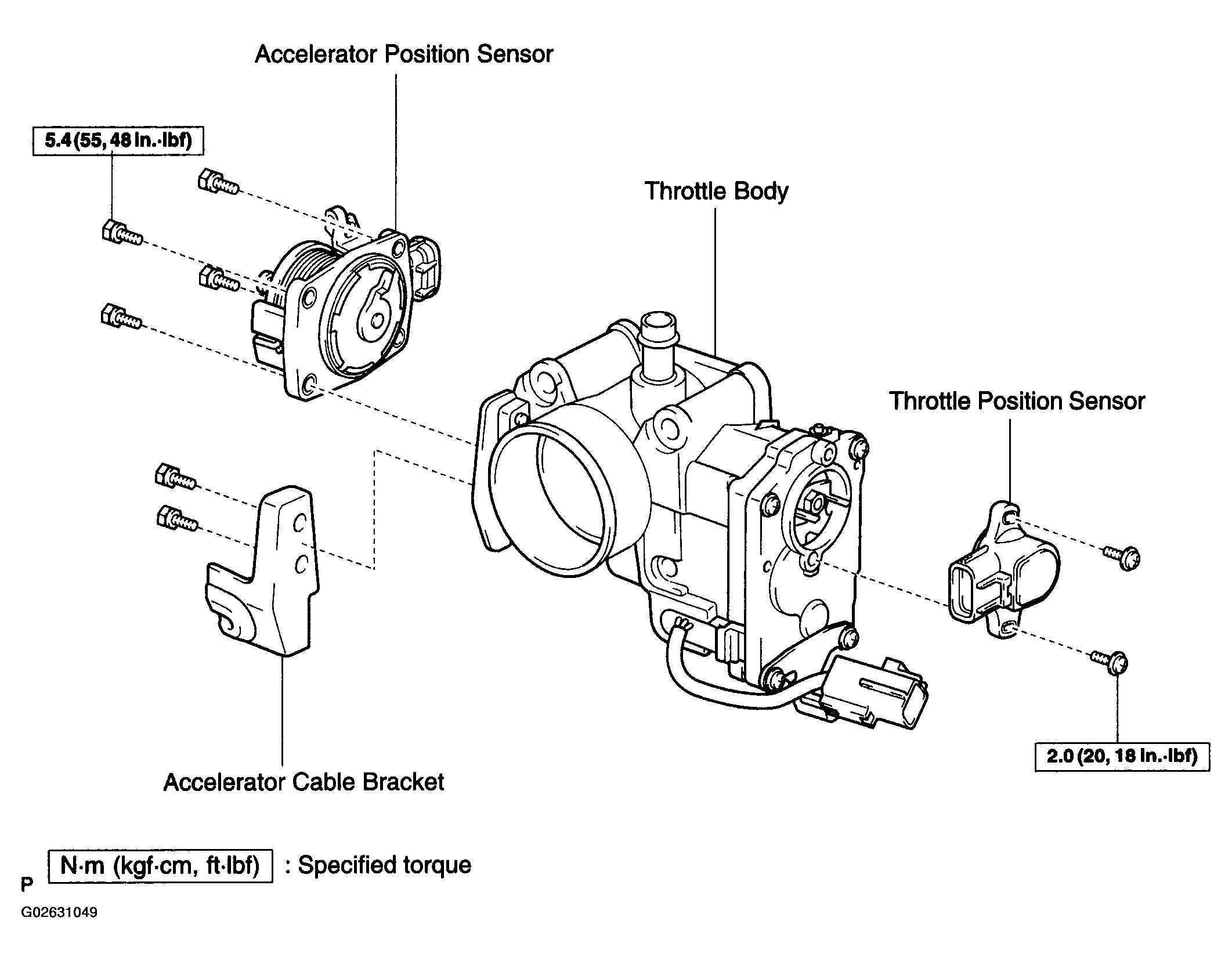

Fig 2: Identifying Throttle Body (SMT) Components (2 Of 2)
G02631049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
