Fuel Injector ASSY (2ZZ-GE): Components

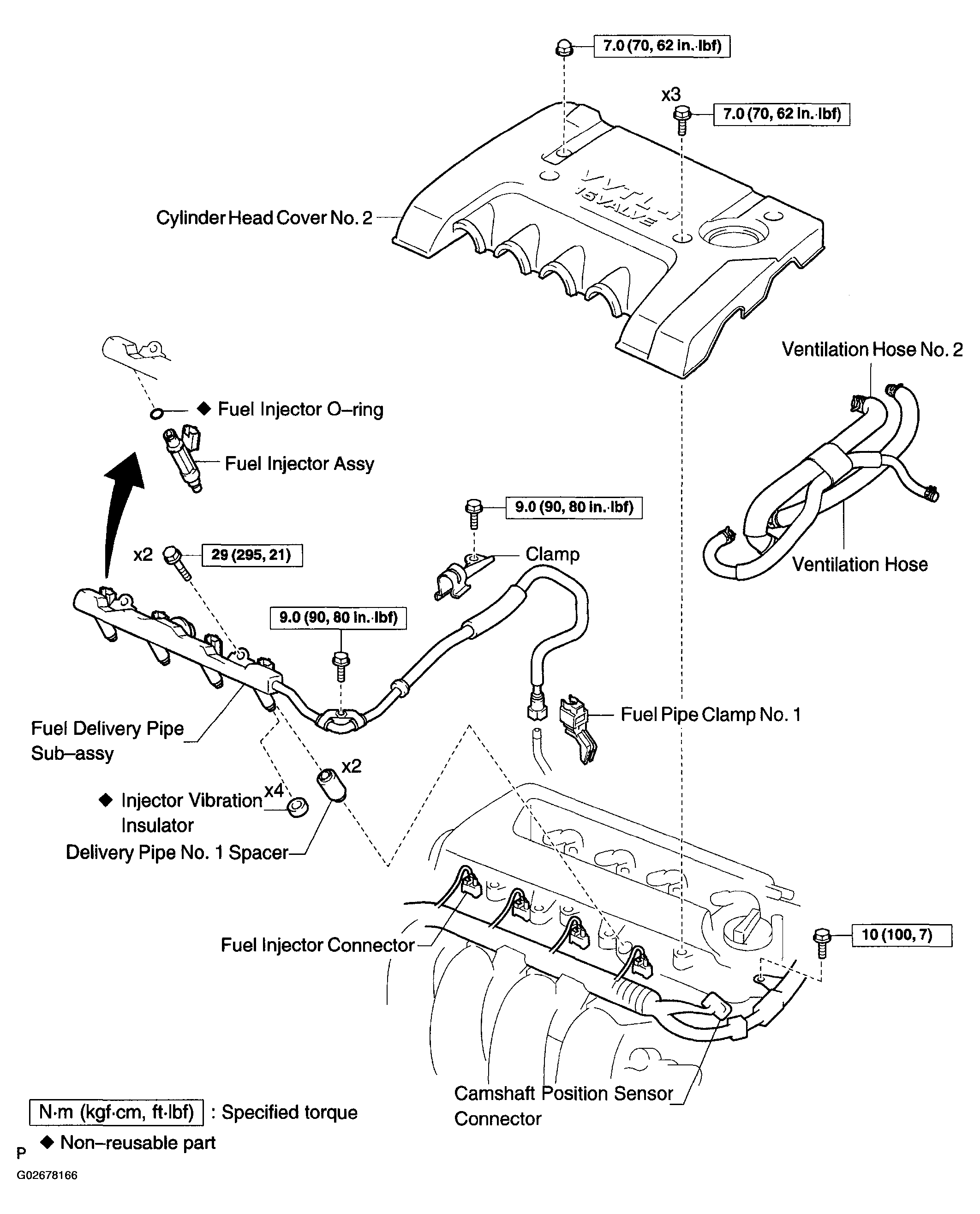

Fig 1: Exploded View Of Fuel Injector Assy (2ZZ-GE) With Torque Specifications

G02678166

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
