Fuel Injector ASSY (1NZ-FXE): Components

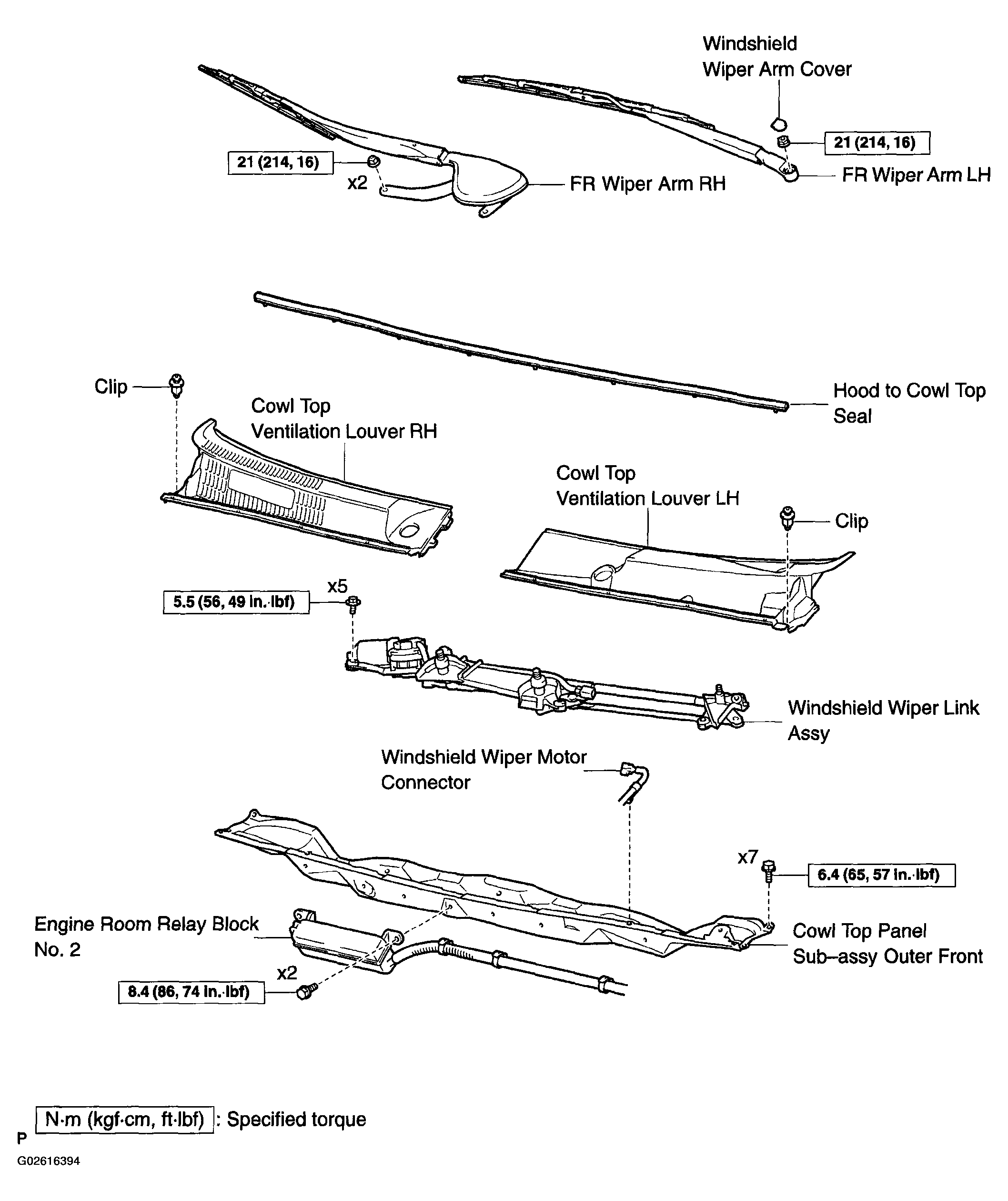

Fig 1: Fuel Injector Assy (1Nz-Fxe) Component And Torque Specifications (1 Of 3)
G02616394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

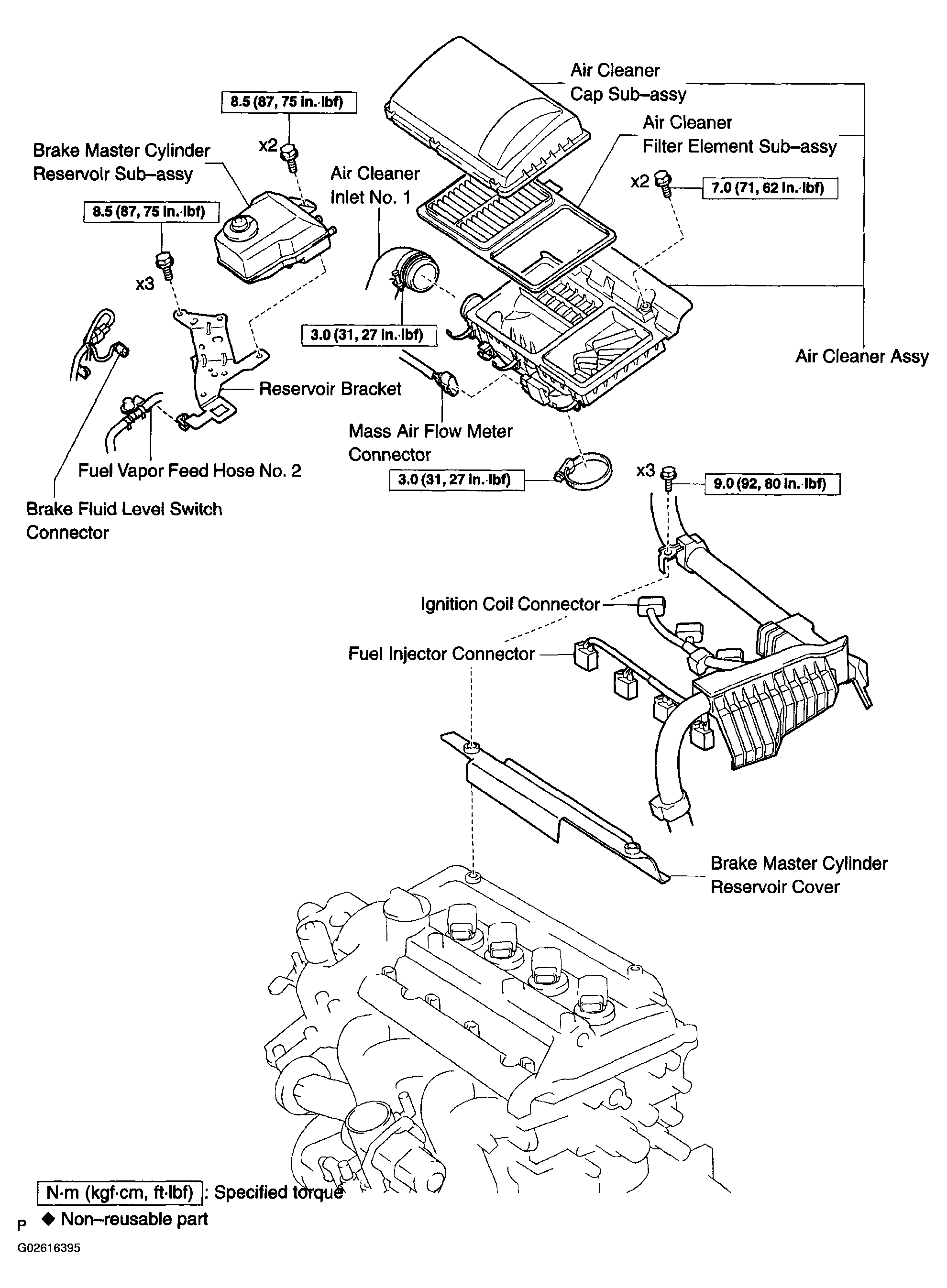

Fig 2: Fuel Injector Assy (1Nz-Fxe) Component And Torque Specifications(2 Of 3)
G02616395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

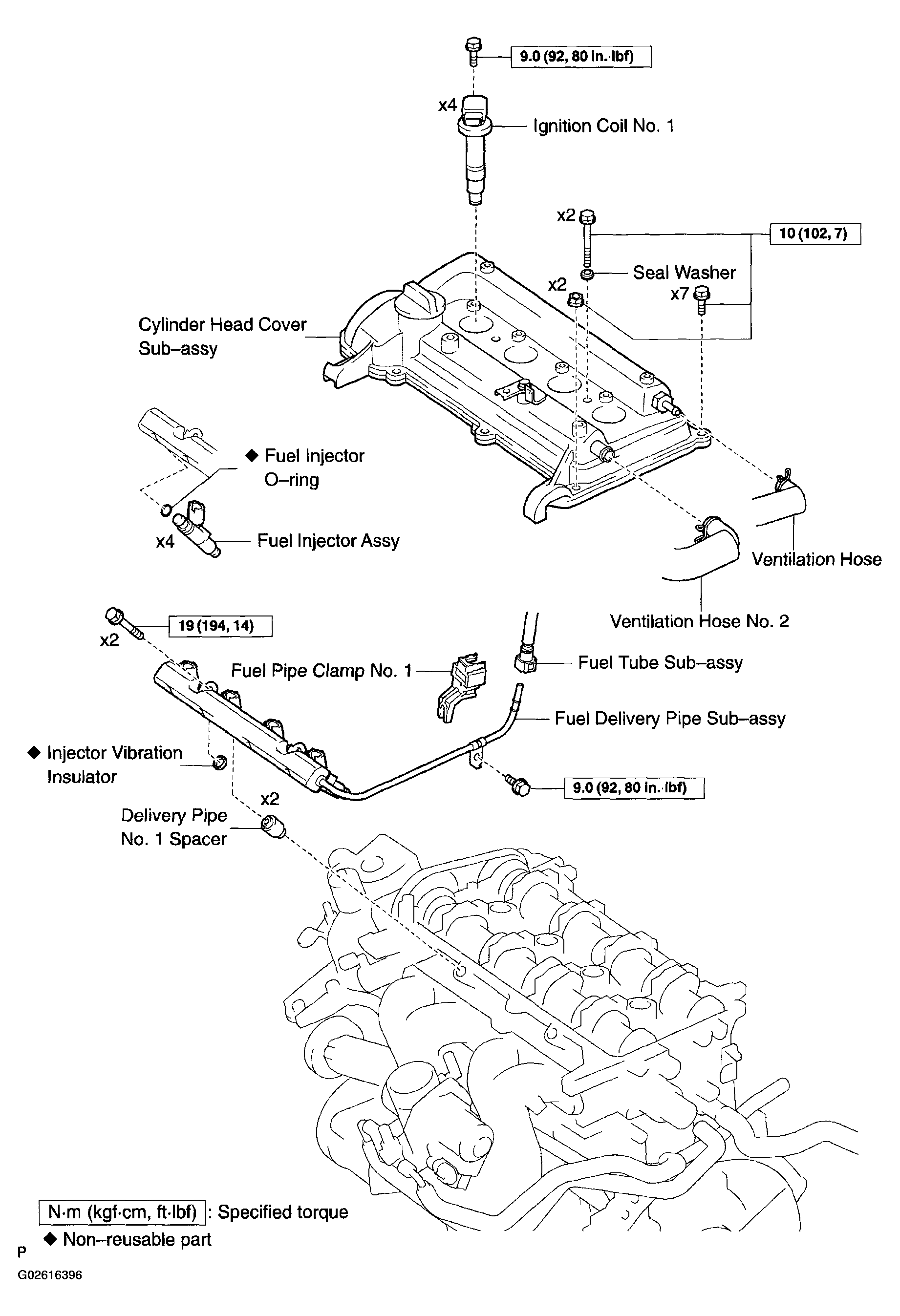

Fig 3: Fuel Injector Assy (1Nz-Fxe) Component And Torque Specifications (3 Of 3)
G02616396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
