Camshaft Position Sensor (1NZ-FXE): Replacement

  1. PRECAUTION (See  PRECAUTION  )
  2. REMOVE RADIATOR SUPPORT OPENING COVER (See  REPLACEMENT  )
  3. REMOVE ENGINE UNDER COVER LH
  4. REMOVE ENGINE UNDER COVER RH
  5. DRAIN HV COOLANT (See  COOLANT  )
  6. REMOVE REAR FLOOR BOARD NO. 2 (See  BATTERY (1 NZ-FXE)  )
  7. REMOVE DECK FLOOR BOX REAR (See  BATTERY (1 NZ-FXE)  )
  8. REMOVE REAR FLOOR BOARD NO. 3 (See  BATTERY (1 NZ-FXE)  )
  9. DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL) (See  BATTERY (1 NZ-FXE)  )
  10. REMOVE SERVICE PLUG GRIP (See  SERVICE PLUG GRIP  )
  11. REMOVE WINDSHIELD WIPER ARM COVER
  12. REMOVE FR WIPER ARM RH (See  WINDSHIELD WIPER MOTOR ASSY  )
  13. REMOVE FR WIPER ARM LH (See  WINDSHIELD WIPER MOTOR ASSY  )
  14. REMOVE HOOD TO COWL TOP SEAL (See  WINDSHIELD WIPER MOTOR ASSY  )
  15. REMOVE COWL TOP VENTILATOR LOUVER LH (See  WINDSHIELD WIPER MOTOR ASSY  )
  16. REMOVE COWL TOP VENTILATOR LOUVER RH (See  WINDSHIELD WIPER MOTOR ASSY  )
  17. REMOVE WINDSHIELD WIPER LINK ASSY (See  WINDSHIELD WIPER MOTOR ASSY  )
  18. REMOVE COWL TOP PANEL SUB-ASSY OUTER FRONT (See  REPLACEMENT  )
  19. REMOVE INVERTER COVER (See  REPLACEMENT  )
  20. VERIFY THAT VOLTAGE OF W/CONVERTER INVERTER ASSY IS ON (See  REPLACEMENT  )
  21. DISCONNECT INVERTER COOLING HOSE NO. 2 (See  REPLACEMENT  )
  22. DISCONNECT INVERTER COOLING HOSE NO. 1 (See  REPLACEMENT  )
  23. DISCONNECT INVERTER COOLING HOSE NO. 6 (See  REPLACEMENT  )
  24. SEPARATE CIRCUIT BREAKER SENSOR NO. 1 (See  REPLACEMENT  )
  25. DISCONNECT FRAME WIRE NO. 2 (See  REPLACEMENT  )
  26. REMOVE W/CONVERTER INVERTER ASSY (See  REPLACEMENT  )
  27. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the camshaft position sensor connector.
    2. Remove the bolt, then remove the camshaft position sensor.

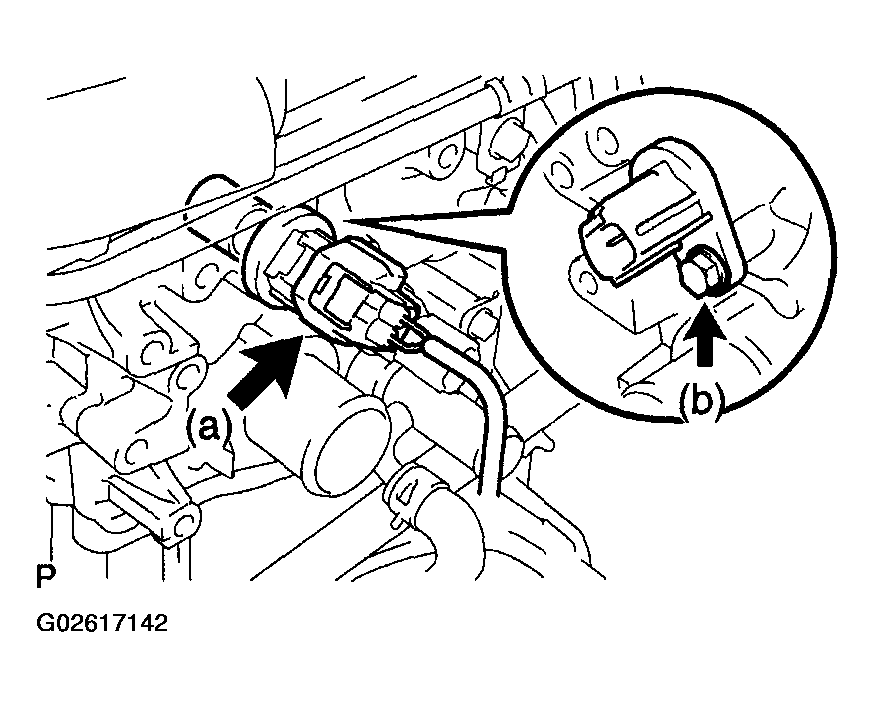

      Fig 1: Removing Camshaft Position Sensor
      G02617142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL CAMSHAFT POSITION SENSOR
    1. Apply a light coat of engine oil to the O-ring of the camshaft position sensor.
    2. Install the camshaft position sensor with the bolt.

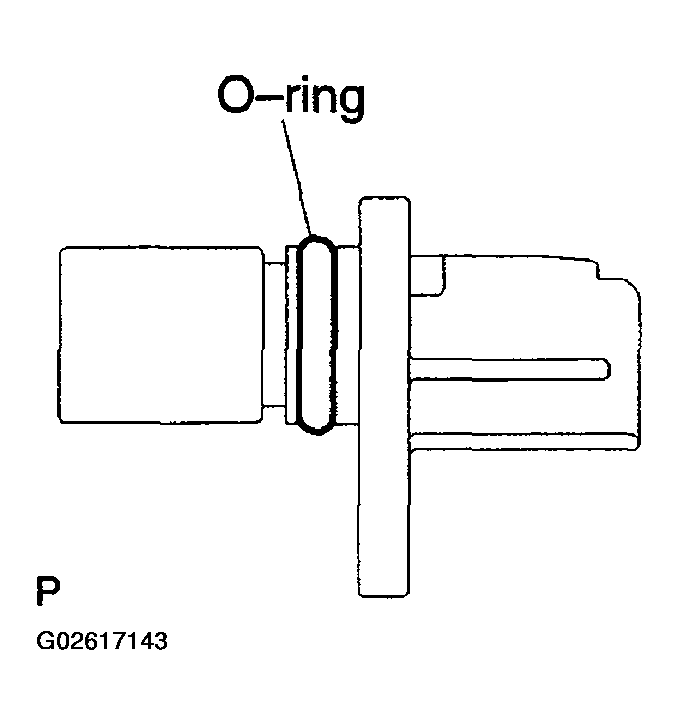

      Fig 2: Applying Light Coat Of Engine Oil To O-Ring Of Camshaft Position Sensor
      G02617143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

      NOTE: Be careful that the O-ring is not cracked or jammed when installing.
    3. Connect the camshaft position sensor connector.
  29. INSTALL W/CONVERTER INVERTER ASSY (See  REPLACEMENT  )
  30. CONNECT FRAME WIRE NO. 2 (See  REPLACEMENT  )
  31. CONNECT CIRCUIT BREAKER SENSOR NO. 1 (See  REPLACEMENT  )
  32. CONNECT INVERTER COOLING HOSE NO. 6
  33. CONNECT INVERTER COOLING HOSE NO. 1
  34. CONNECT INVERTER COOLING HOSE NO. 2
  35. INSTALL INVERTER COVER (See  REPLACEMENT  )
  36. INSTALL COWL TOP PANEL SUB-ASSY OUTER FRONT (See  REPLACEMENT  )
  37. INSTALL WINDSHIELD WIPER LINK ASSY (See  WINDSHIELD WIPER MOTOR ASSY  )
  38. INSTALL SERVICE PLUG GRIP (See  SERVICE PLUG GRIP  )
  39. CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL) (See  BATTERY (1 NZ-FXE)  )
  40. ADD HV COOLANT (See  COOLANT  )
  41. CHECK FOR HV COOLANT LEAKS
  42. CHECK FOR ENGINE OIL LEAKS
  43. INSTALL COWL TOP VENTILATOR LOUVER RH
  44. INSTALL COWL TOP VENTILATOR LOUVER LH
  45. INSTALL HOOD TO COWL TOP SEAL
  46. INSTALL FR WIPER ARM LH (See  WINDSHIELD WIPER MOTOR ASSY  )
  47. INSTALL FR WIPER ARM RH (See  WINDSHIELD WIPER MOTOR ASSY  )
  48. INSTALL WINDSHIELD WIPER ARM COVER
  49. INSTALL REAR FLOOR BOARD NO. 3
  50. INSTALL DECK FLOOR BOX REAR
  51. INSTALL REAR FLOOR BOARD NO. 2
  52. INSTALL ENGINE UNDER COVER RH
  53. INSTALL ENGINE UNDER COVER LH
  54. INSTALL RADIATOR SUPPORT OPENING COVER
  55. POWER WINDOW CONTROL SYSTEM INITIALIZE (See  INITIALIZATION  )
