Drive Shaft/Propeller Shaft: Preparation: SST

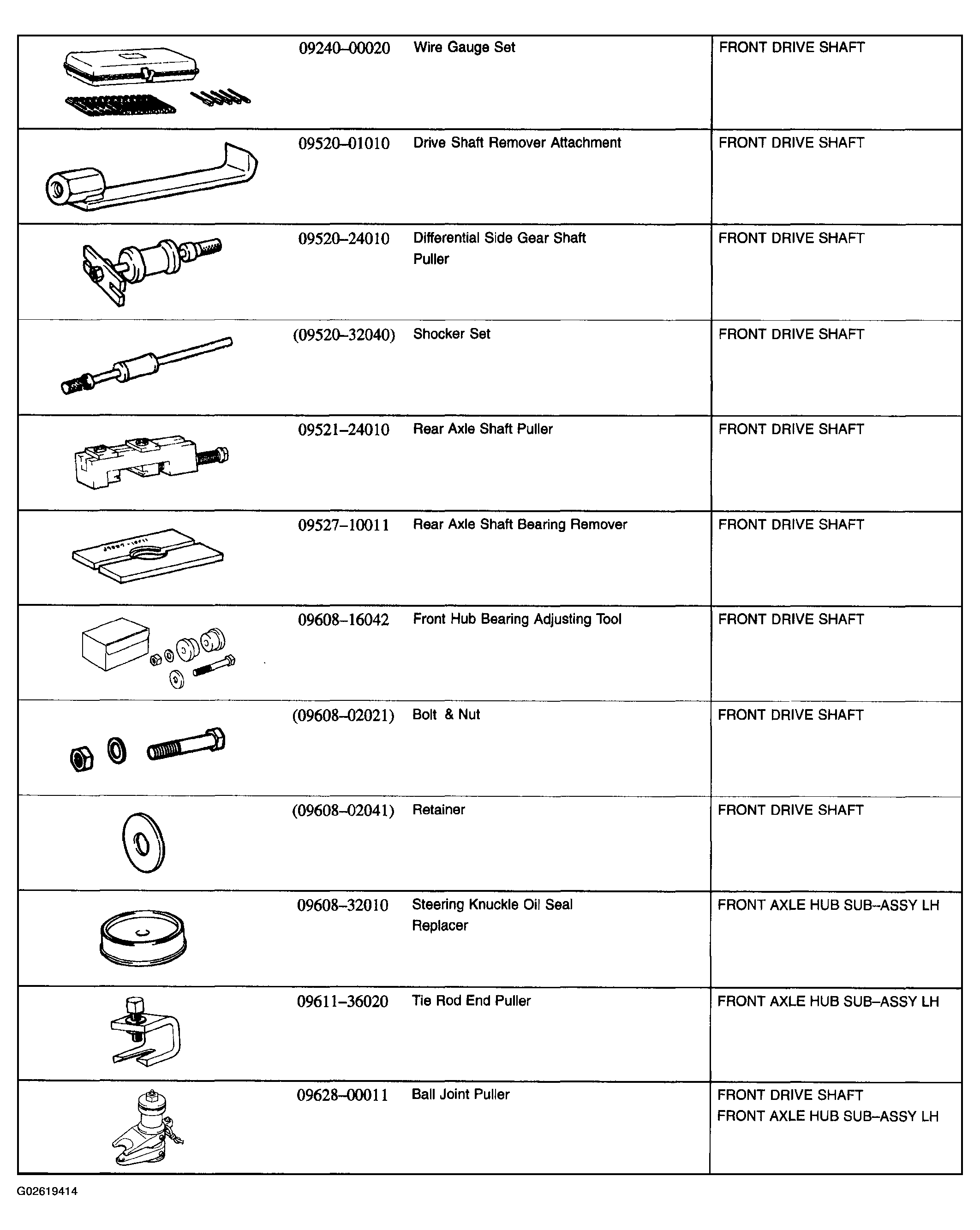

Fig 1: Identifying SST - Drive Shaft/Propeller Shaft (1 Of 2)
G02619414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

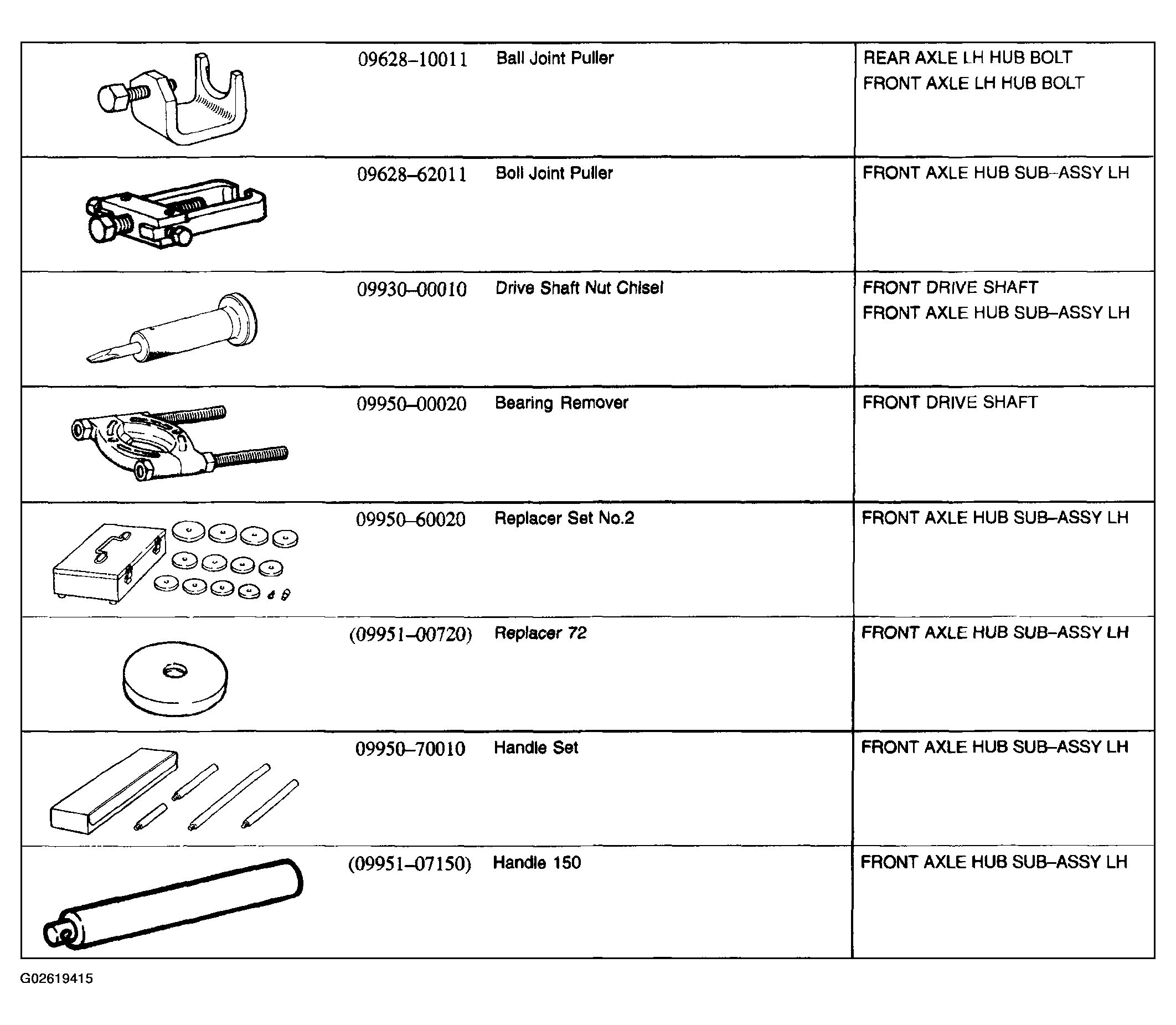

Fig 2: Identifying SST - Drive Shaft/Propeller Shaft (2 Of 2)
G02619415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
