Preparation
>>
Manual Transaxle
>>
SST (Special Service Tools)
SST (Special Service Tools)

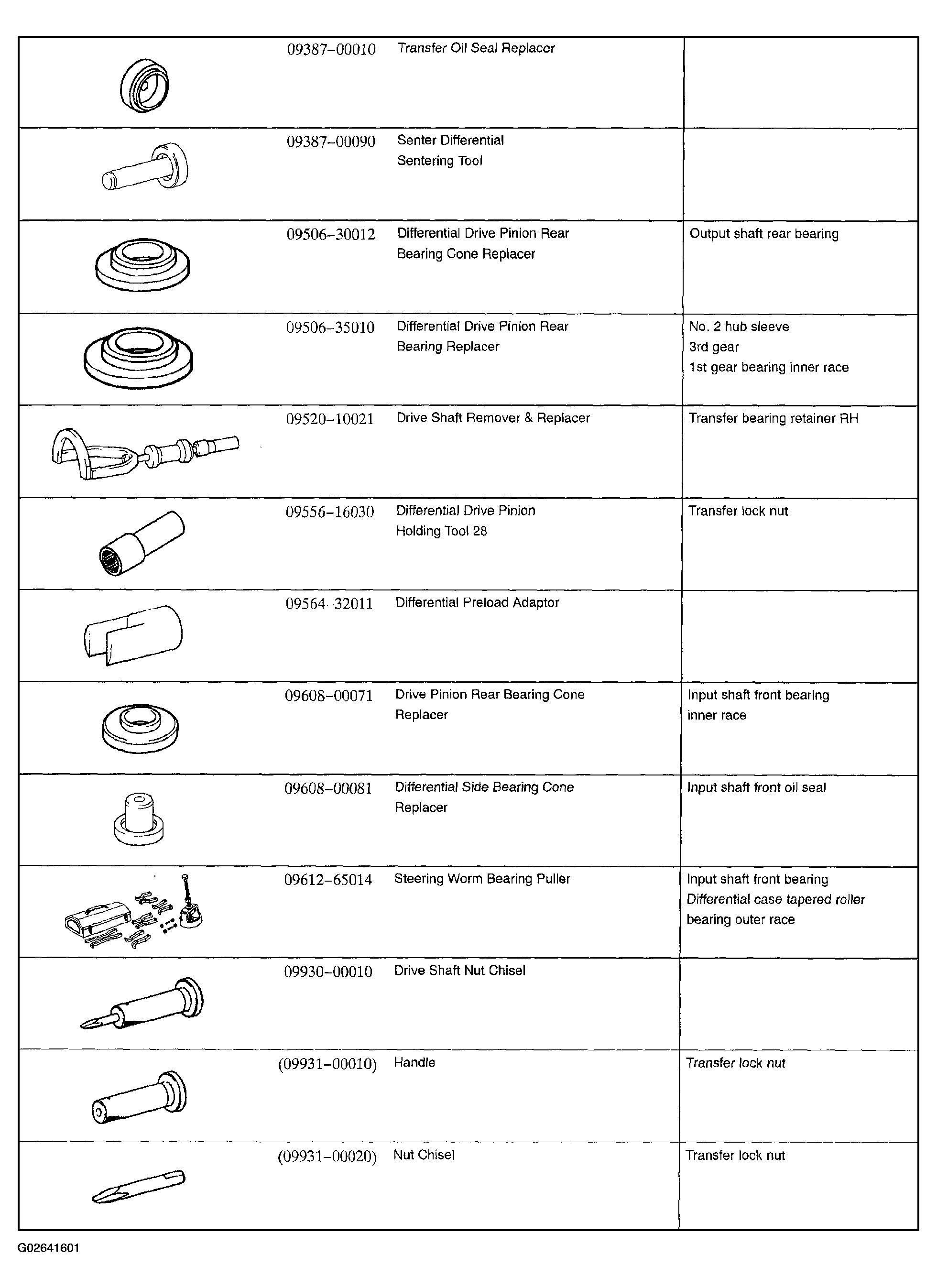

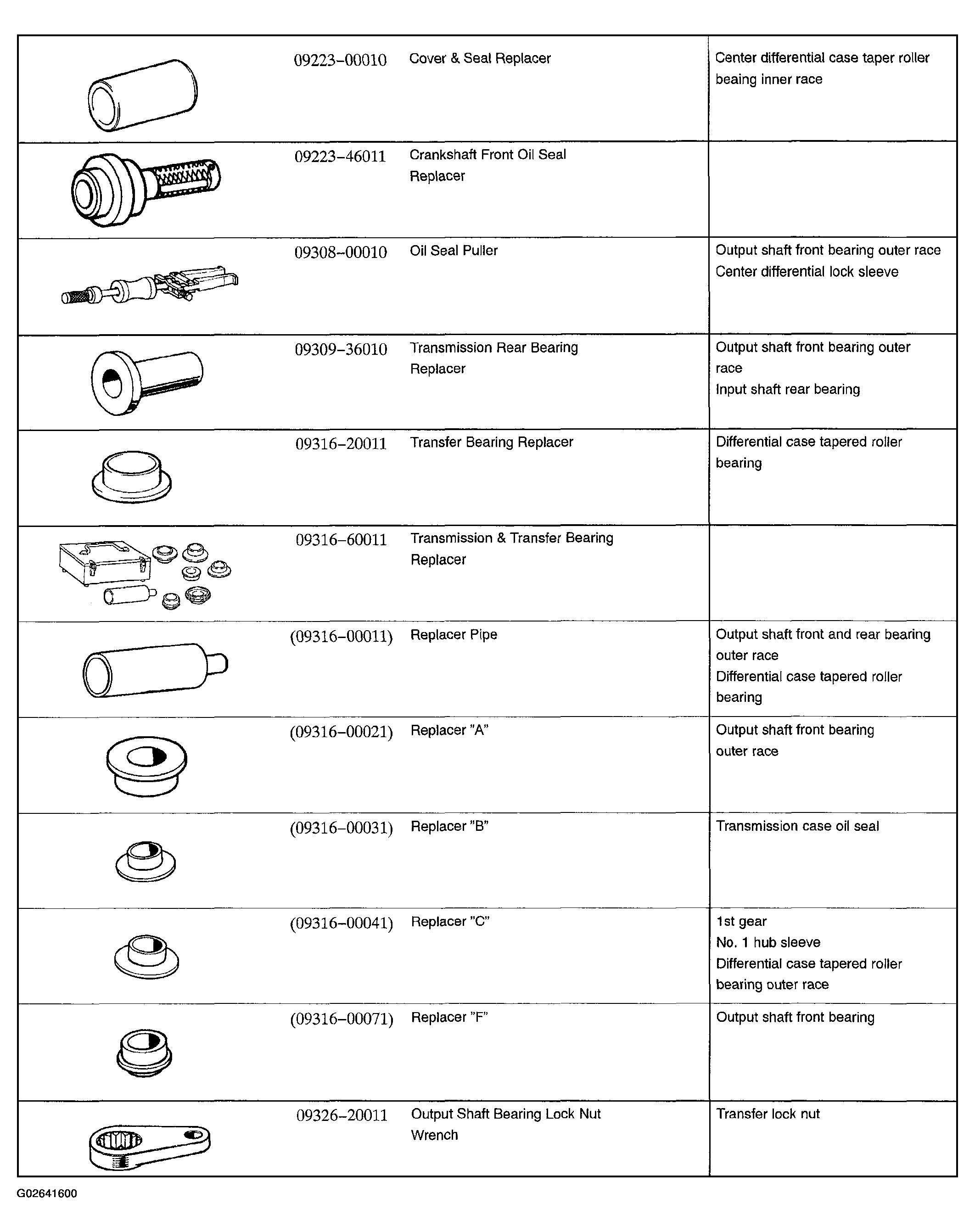

Fig 1: Identifying SST Special Service Tools (Manual Transaxle) (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

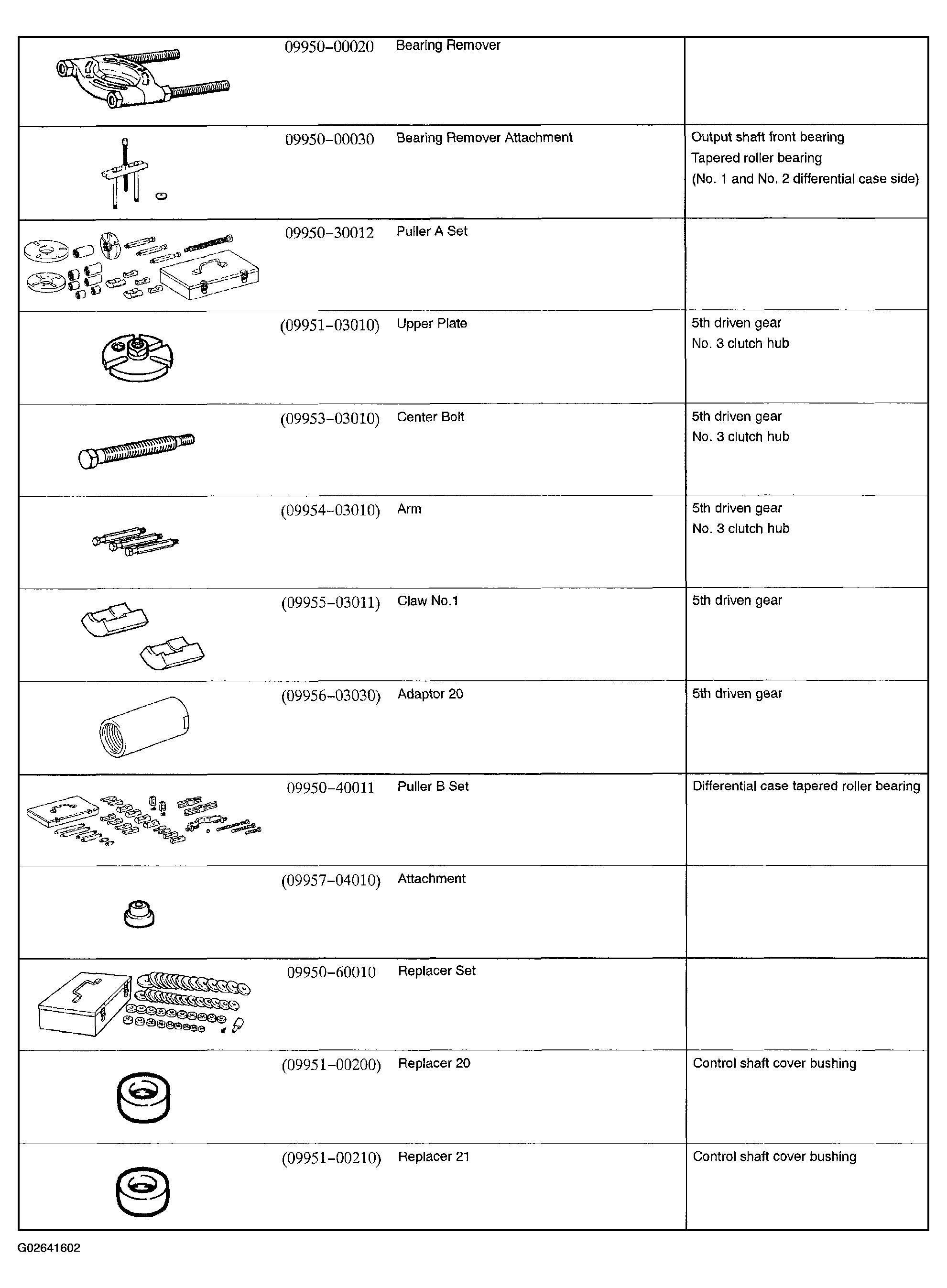

Fig 2: Identifying SST Special Service Tools (Manual Transaxle) (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

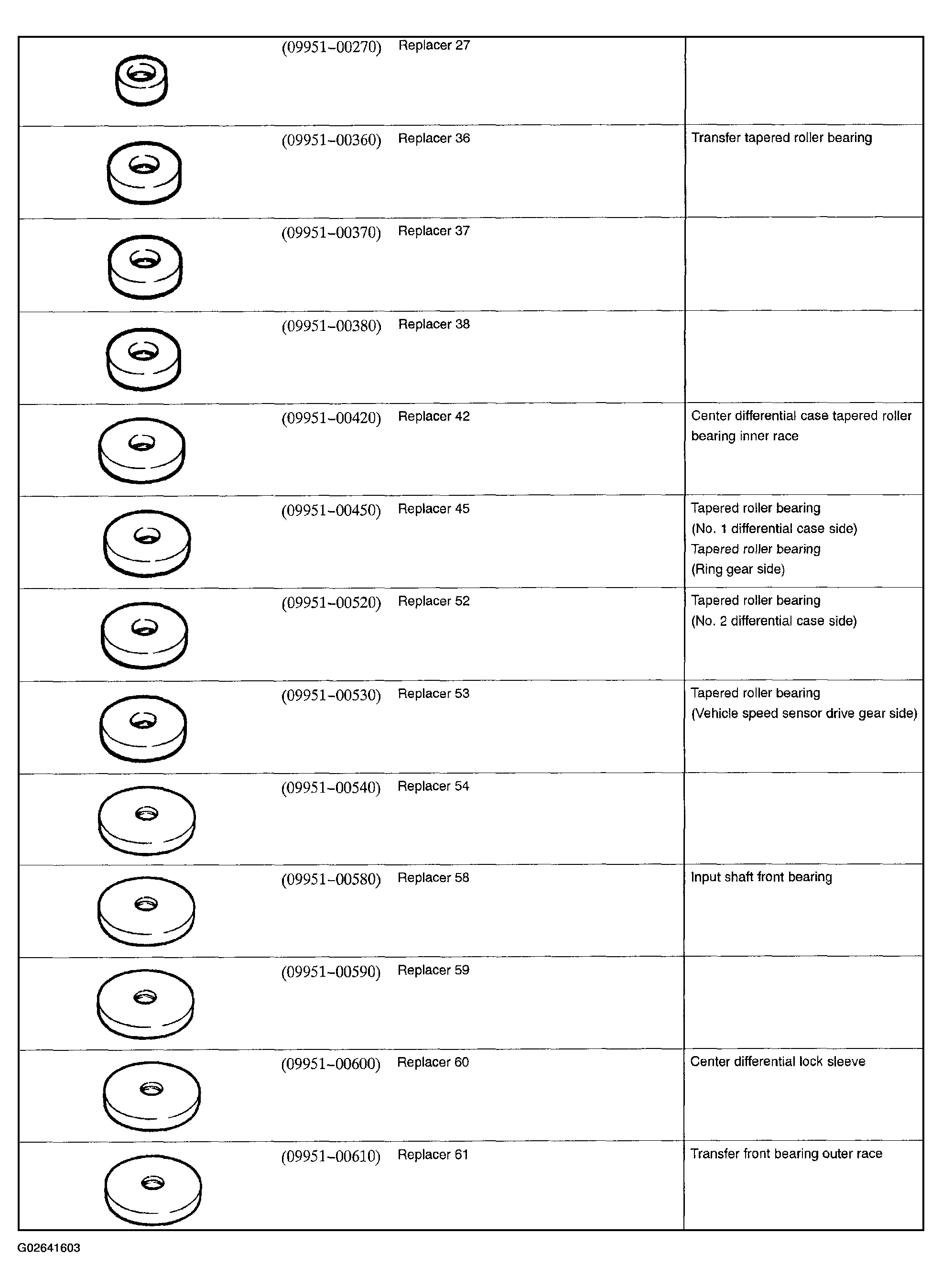

Fig 3: Identifying SST Special Service Tools (Manual Transaxle) (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying SST Special Service Tools (Manual Transaxle) (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

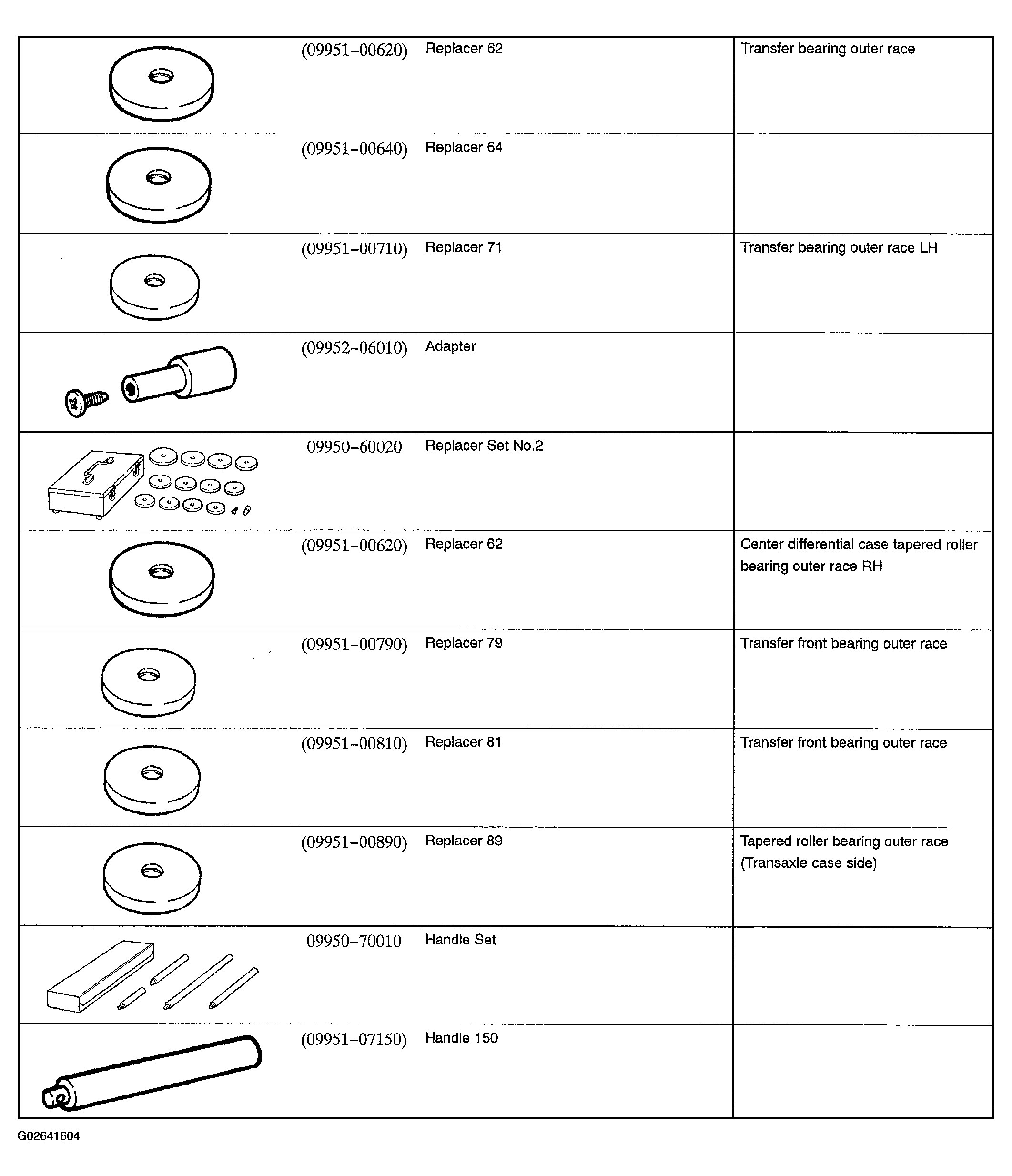

Fig 5: Identifying SST Special Service Tools (Manual Transaxle) (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
