Steering
>>
SST (Special Service Tools)
SST (Special Service Tools)
Fig 1: Identifying SST Special Service Tools (Steering) (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying SST Special Service Tools (Steering) (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

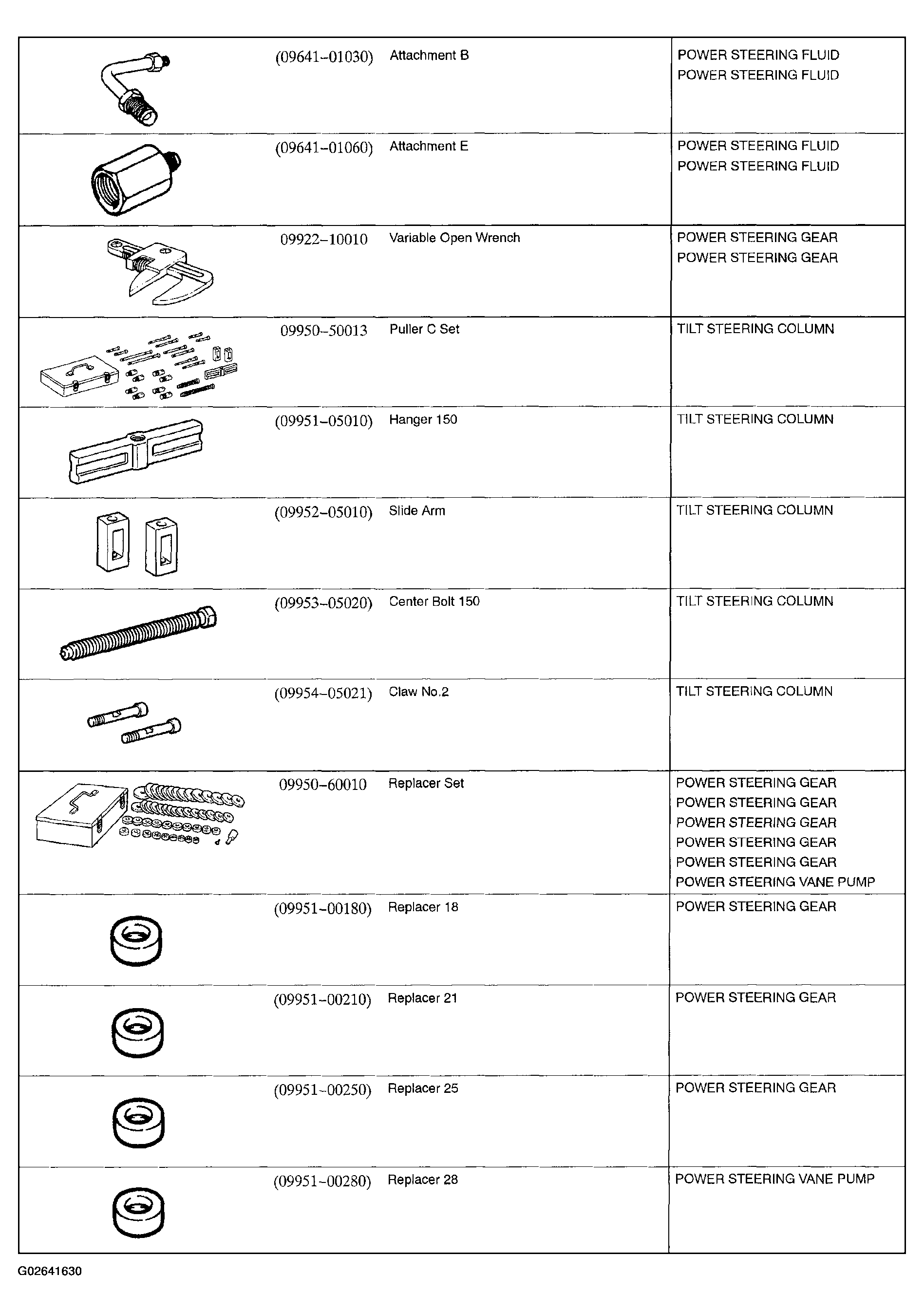

Fig 3: Identifying SST Special Service Tools (Steering) (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

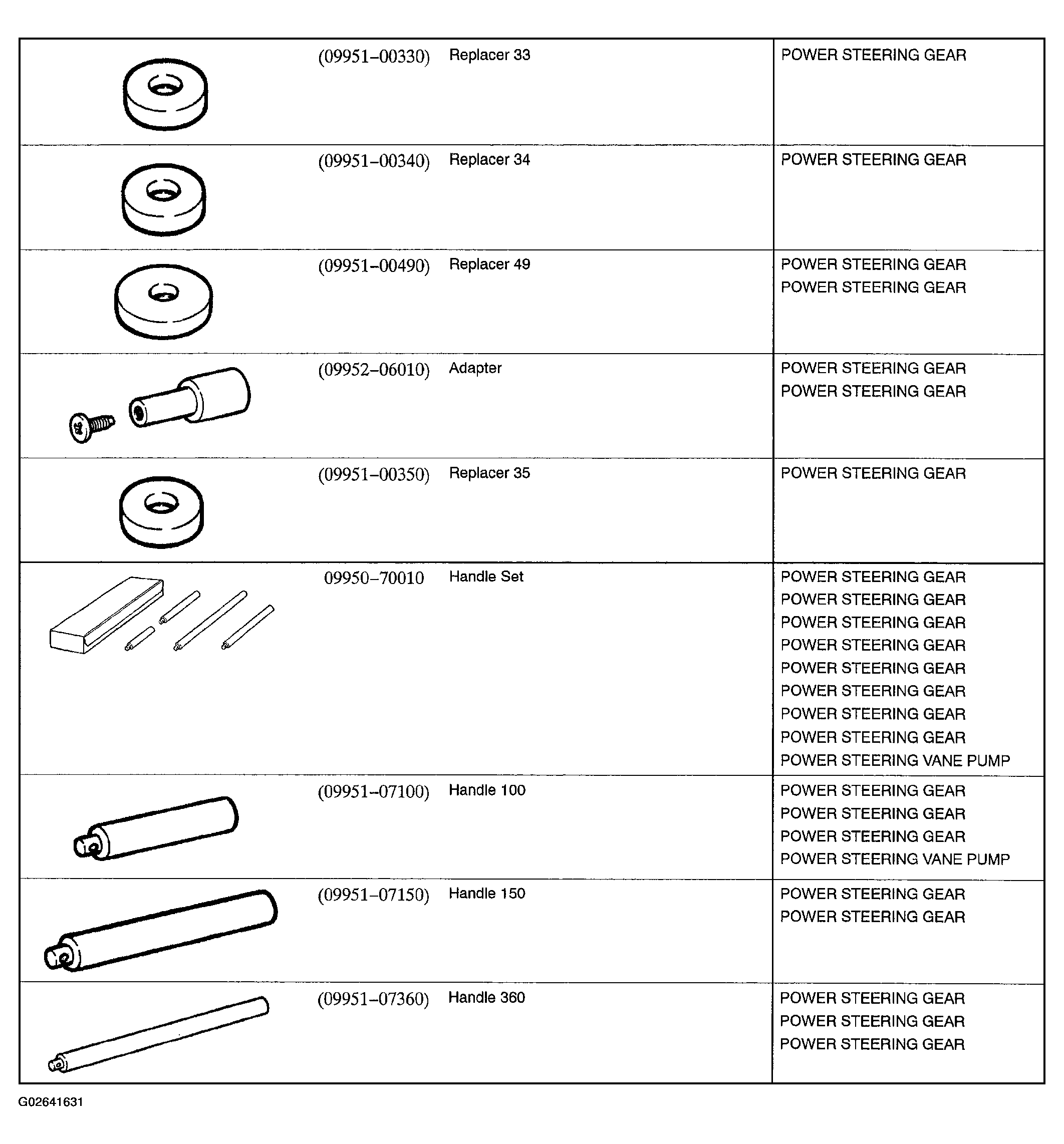

Fig 4: Identifying SST Special Service Tools (Steering) (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
