Fuel Pressure Regulator: Components

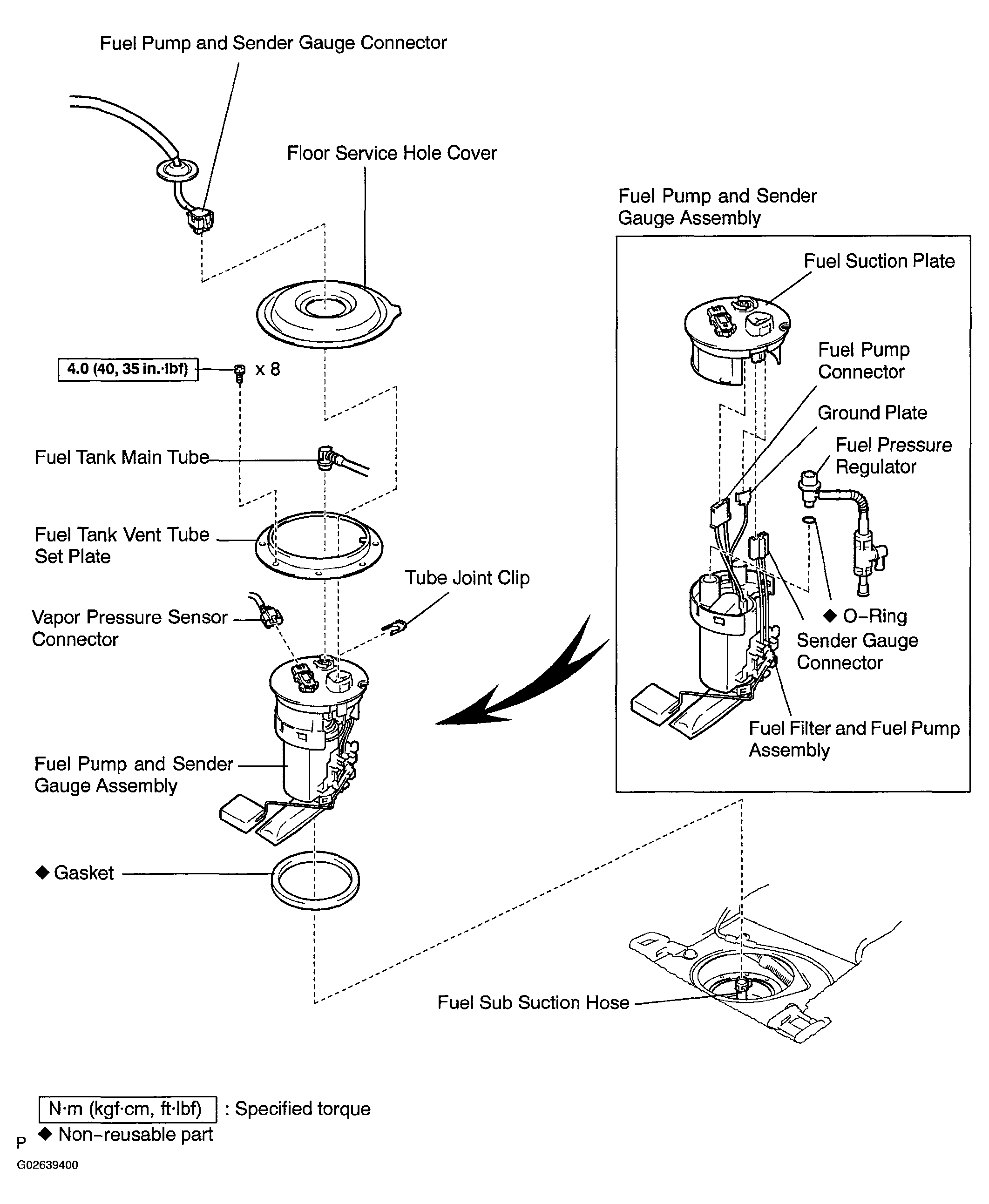

Fig 1: Fuel Pressure Regulator Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
