Heated Oxygen Sensor: Components

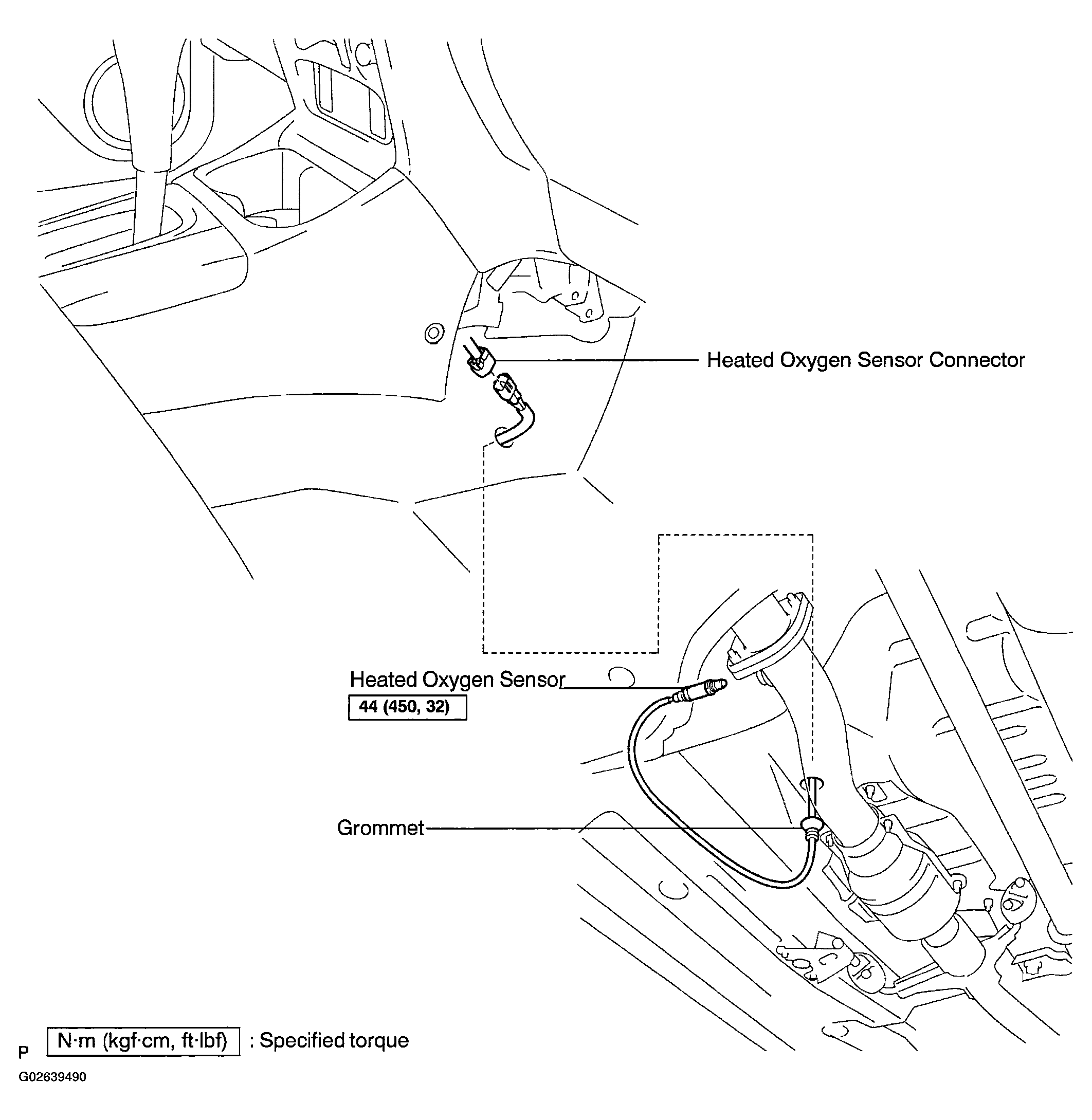

Fig 1: Location Of Heated Oxygen Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
