Crankshaft Position Sensor: Components

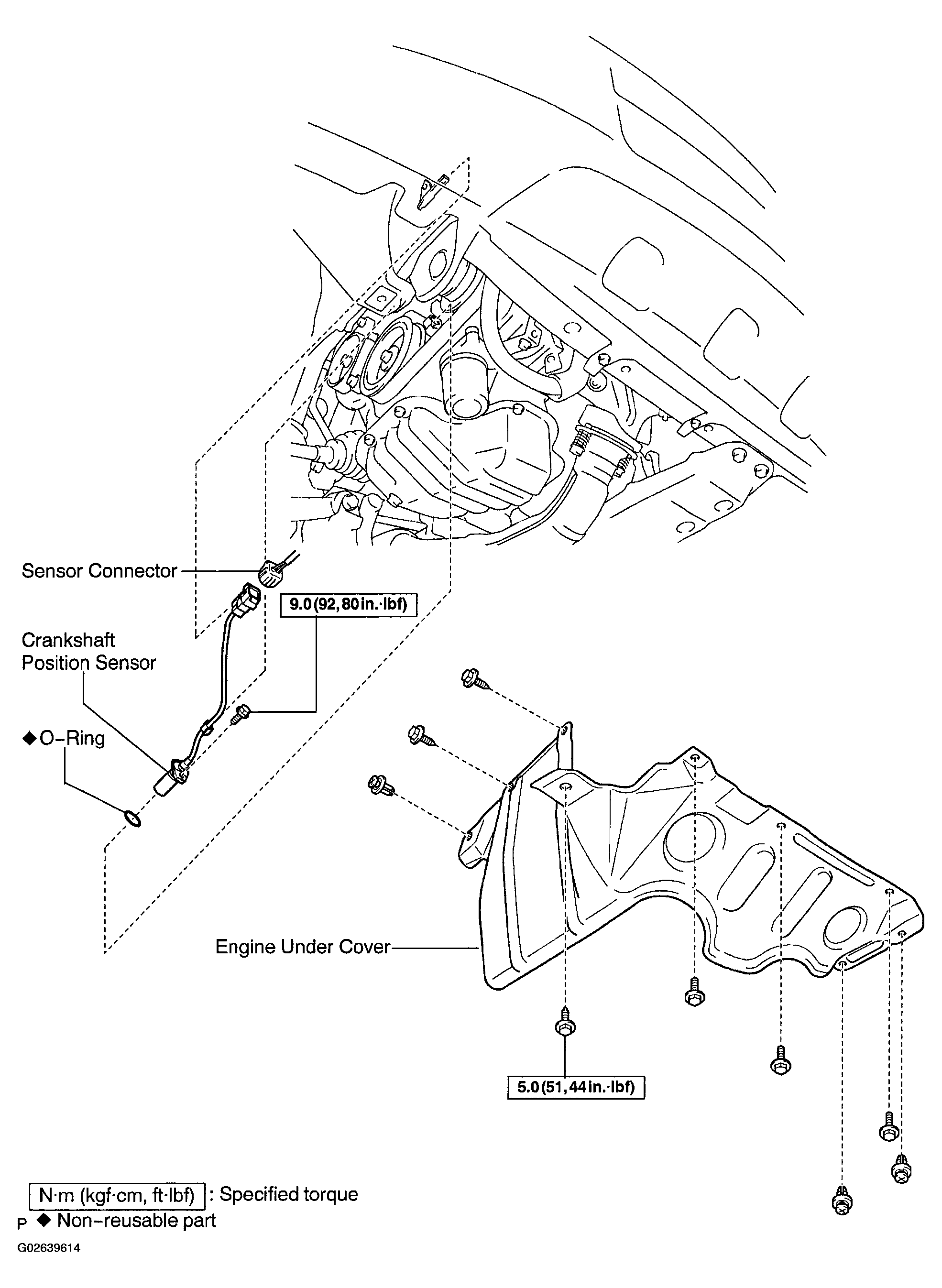

Fig 1: Crankshaft Position Sensor Components & Torque Specifications
G02639614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
