Camshaft Position Sensor: Components

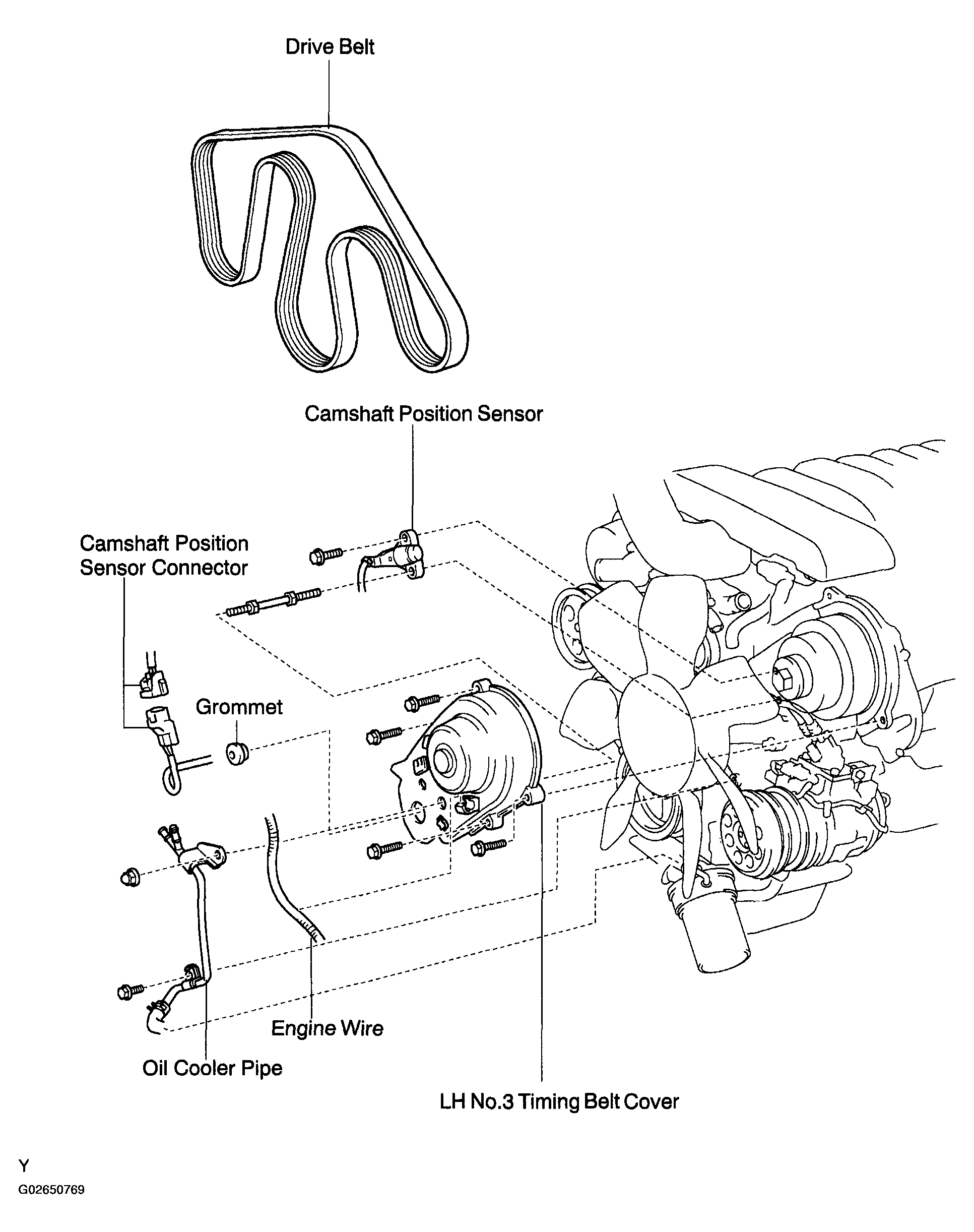

Fig 1: Identifying Camshaft Position Sensor
G02650769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
