Home >> Toyota >> 2005 >> Sequoia SR5, 4WD >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Ignition System >> Crankshaft Position Sensor >> Components

Crankshaft Position Sensor: Components

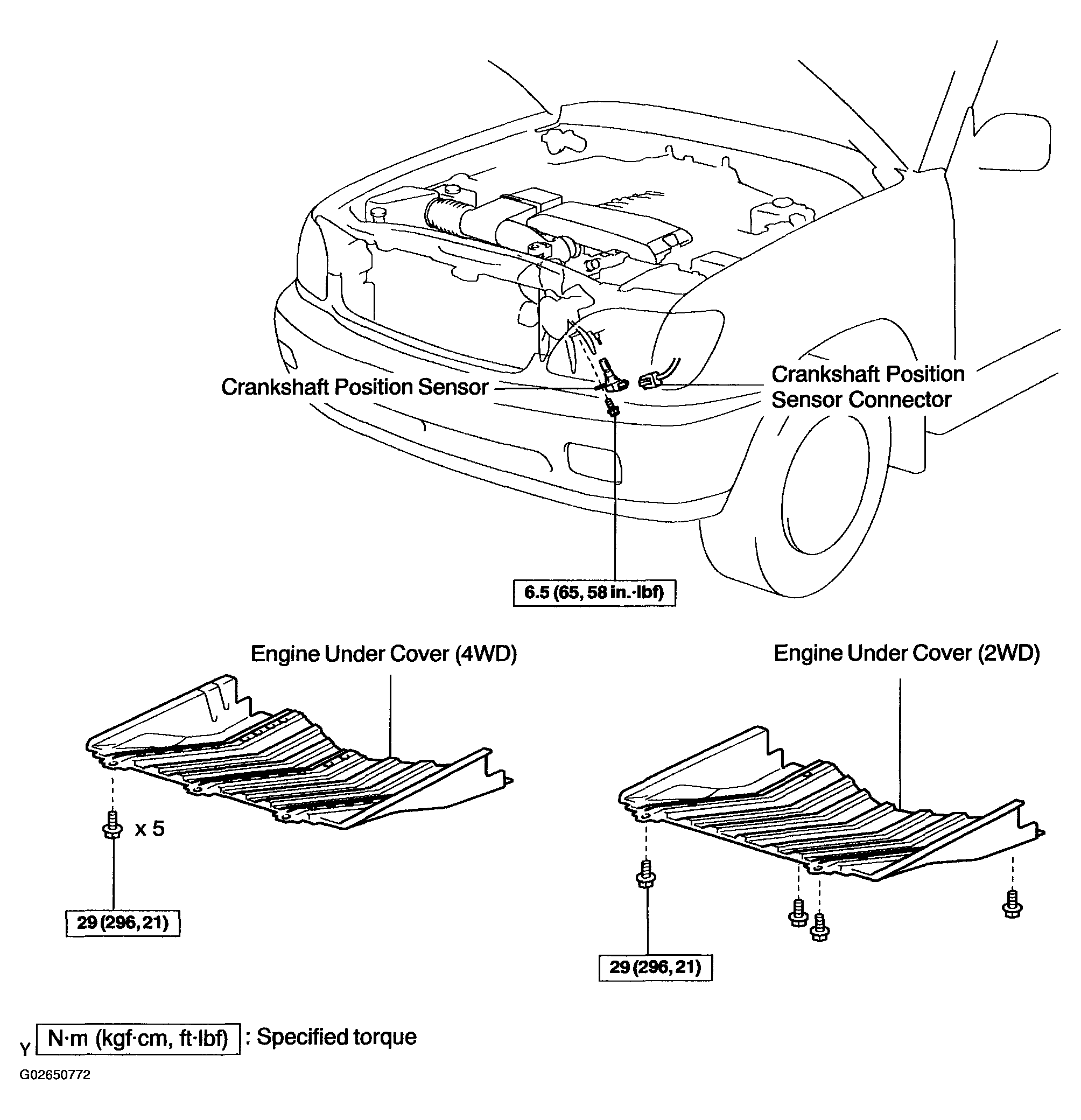

Fig 1: Identifying Crankshaft Position Sensor
G02650772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
