Throttle Body ASSY: Components

Fig 1: Identifying Throttle Body Assy Replacement Components With Torque Specifications (1 Of 2)
G02608107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

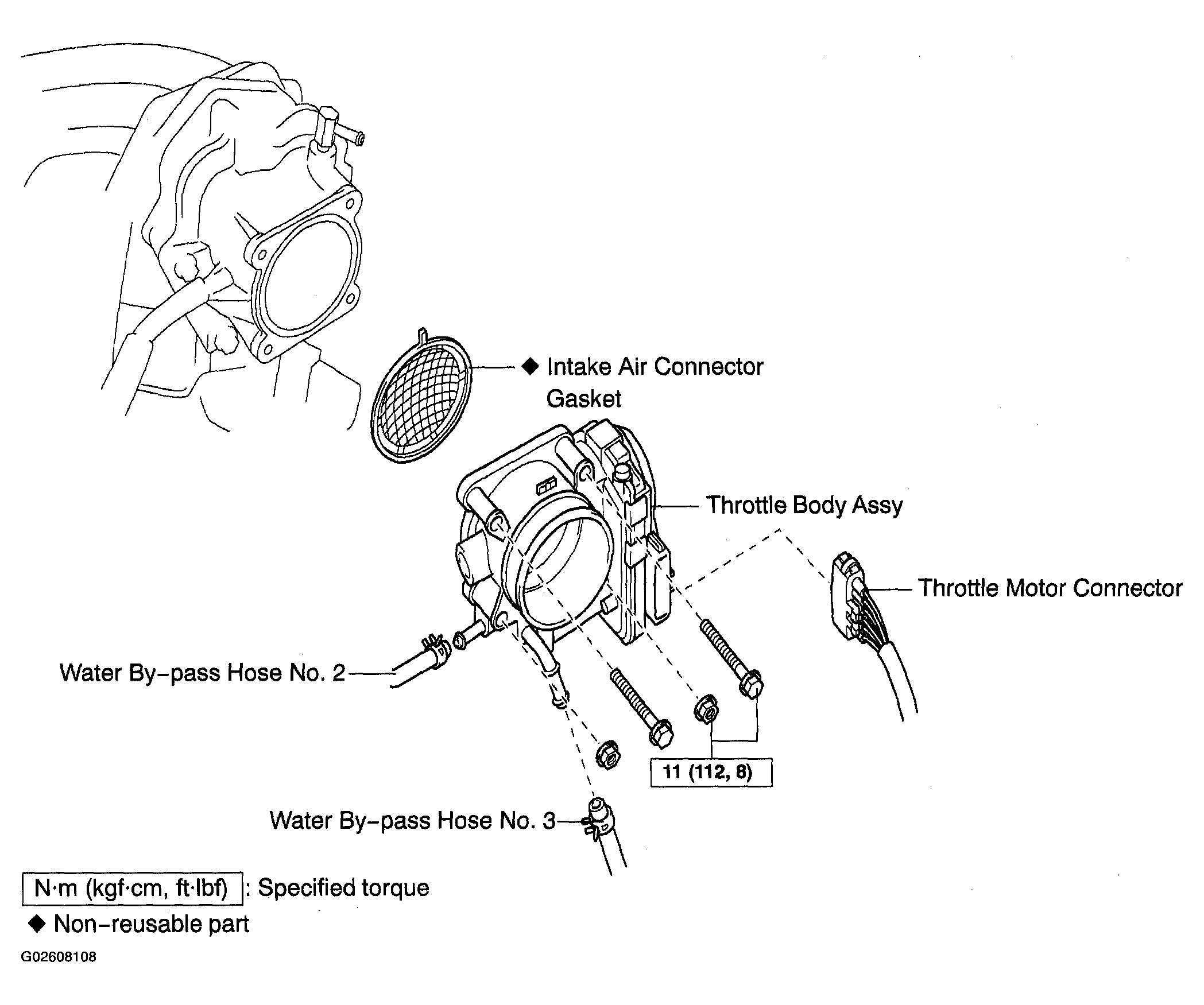

Fig 2: Identifying Throttle Body Assy Replacement Components With Torque Specifications (2 Of 2)
G02608108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
