Engine Control Systems: Preparation: Differential: Preparation: SST

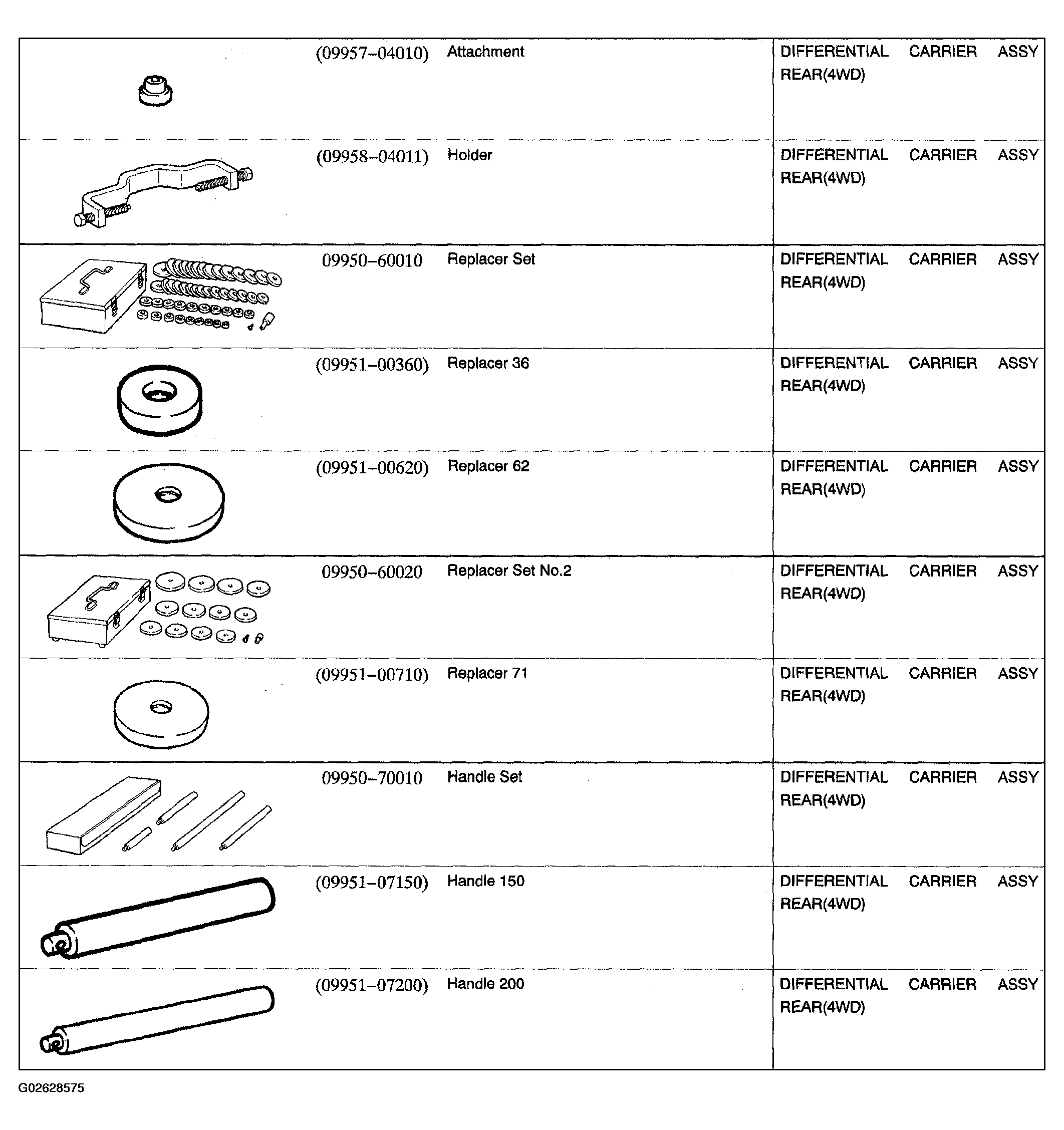

Fig 1: Differential - SST Tool Table (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

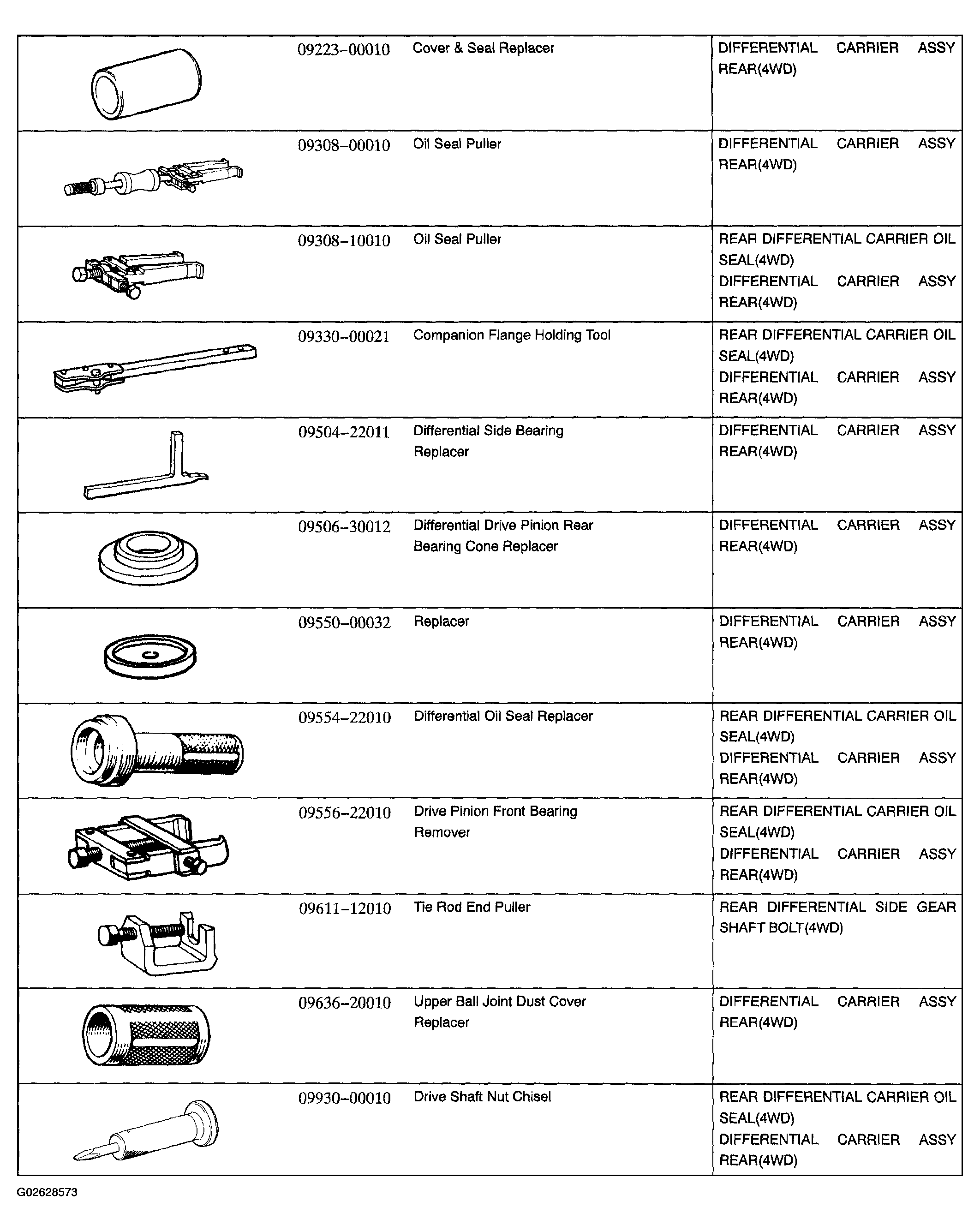

Fig 2: Differential - SST Tool Table (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

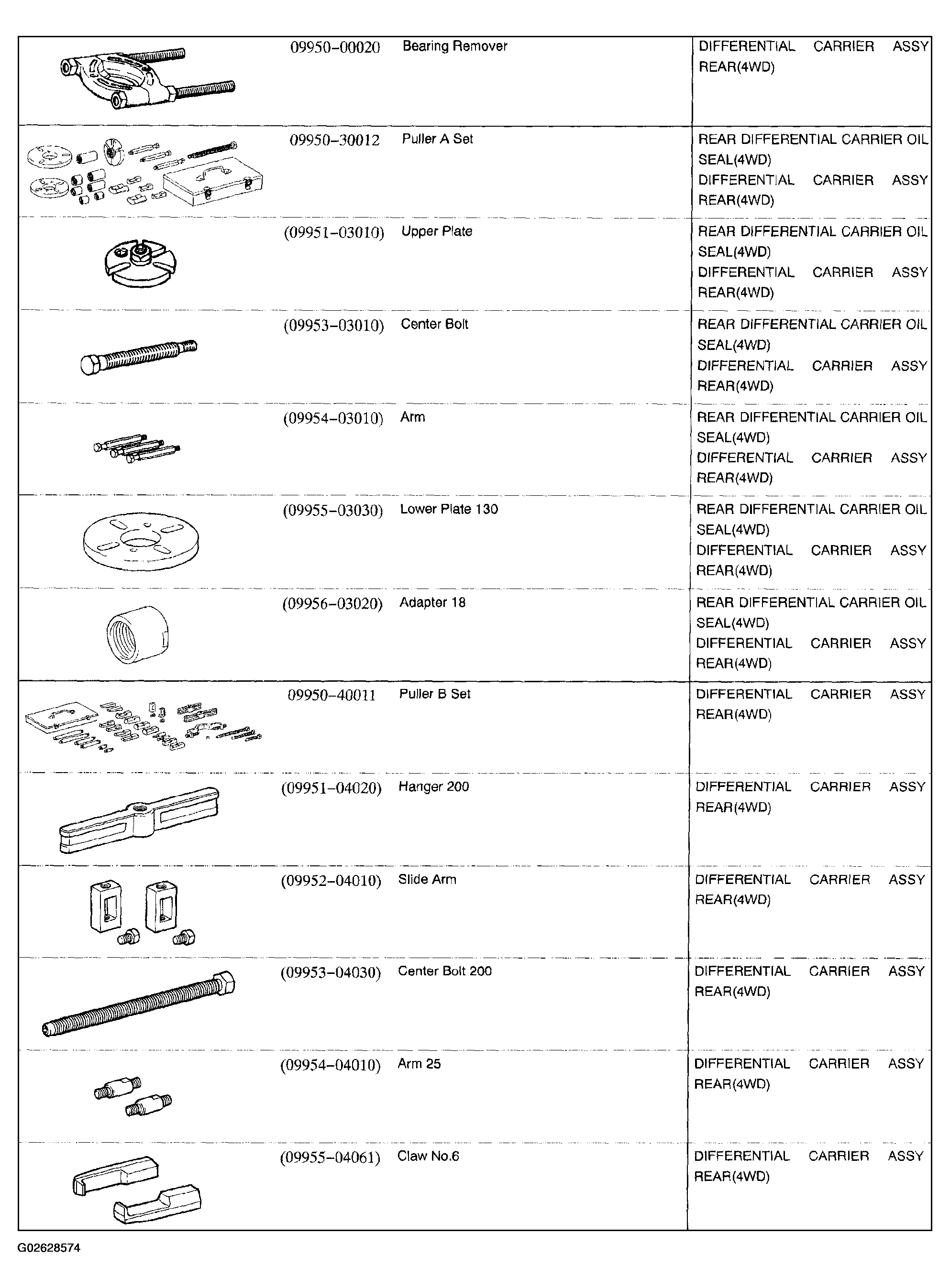

Fig 3: Differential - SST Tool Table (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
