Accelerator Pedal: Removal

  1. REMOVE ACCELERATOR PEDAL
    1. Disconnect the accelerator pedal connector.
    2. Remove the 2 nuts and the accelerator pedal assembly.

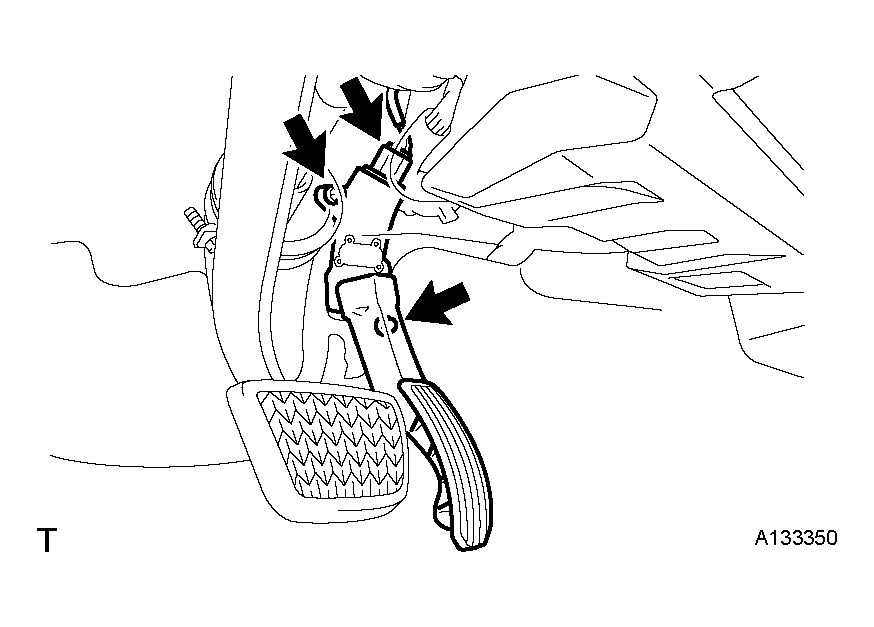

      Fig 1: Removing Accelerator Pedal
      G04375265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
