ACIS Control Circuit: Wiring Diagram

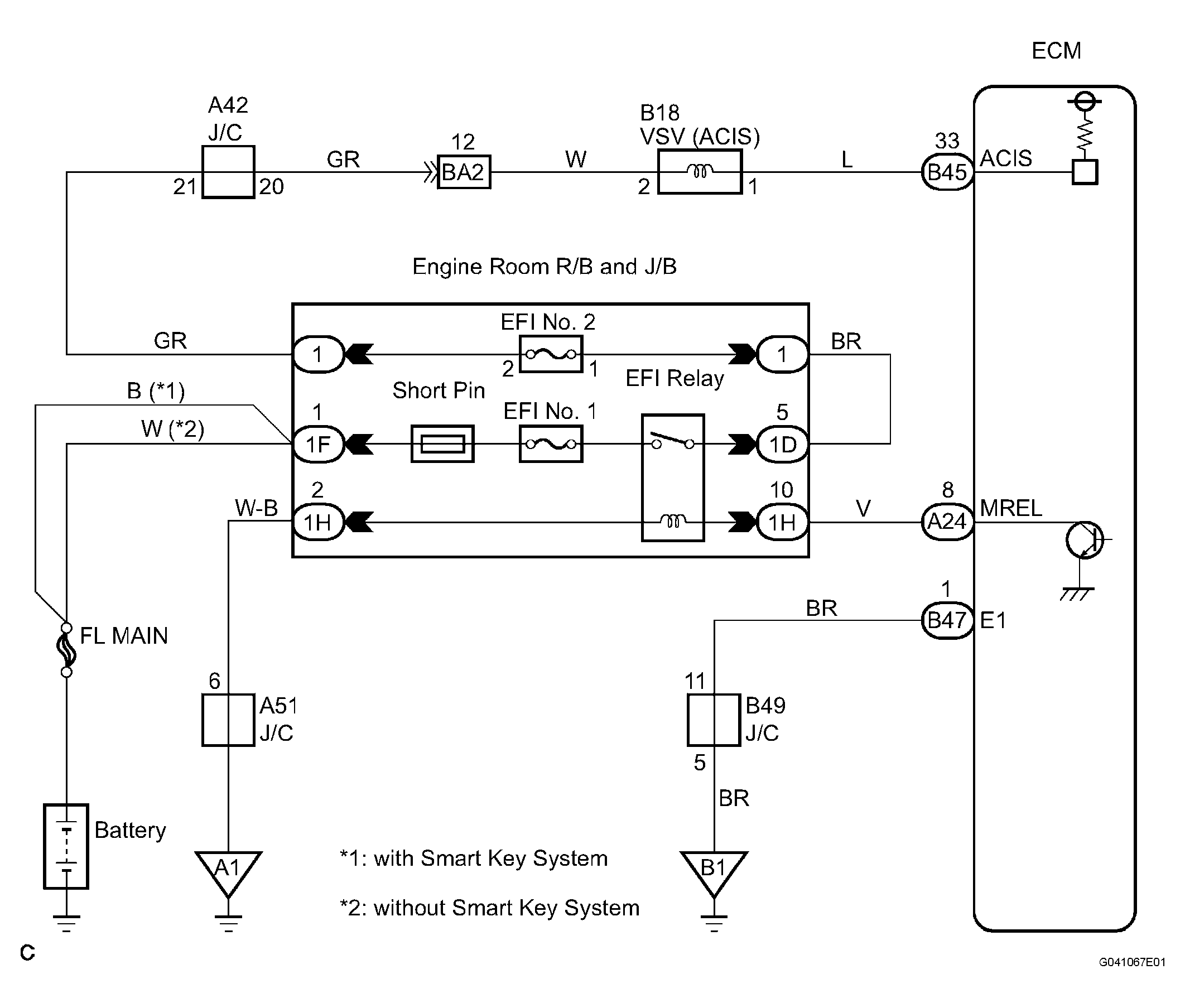

Fig 1: ACIS Control Circuit Wiring Diagram

G04375225

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
